0606 Vertical Bending Neon
Top-bending silicone neon flex sized for tight architectural contours and sign lighting.
- Size
- 6 x 6mm
- Bend Type
- Vertical (top-emitting)
- IP Rating
- Up to IP67
LED Neon Flex
A safer, shatterproof alternative to glass neon, bendable vertically, horizontally, in 3D or full 360°.
LED Neon Flex encapsulates a high-density LED core within premium optical-grade silicone or PU to deliver continuous, dot-free illumination without the fragility or high-voltage hazards of traditional glass neon. Silicone variants offer robust IP67 protection for outdoor facades, while PU variants achieve IP68 ratings for permanent underwater use, making the range suitable for signage, architectural contours and marine lighting projects.
Series overview
- Material Options
- Silicone / PU
- IP Grades
- IP65 / IP67 / IP68
- Main Bend Types
- Vertical / Horizontal / 3D / 360°
- Power Options
- CC (up to 30m) / CV (up to 5m)
Vertical Bending Series
Engineered with environmental silicone material offering up to IP67 protection. Bends perpendicular to the illuminated surface, making it perfectly suited for wrapping around columns, creating sign lighting, and architectural contour lighting.
1005 Vertical Bending Neon
Top-bending silicone neon flex for column wraps and sign lighting.
- Size
- 10 x 5mm
- Bend Type
- Vertical (top-emitting)
- IP Rating
- Up to IP67
1010 Vertical Bending Neon
Top-bending silicone neon flex for column wraps and architectural contour lighting.
- Size
- 10 x 10mm
- Bend Type
- Vertical (top-emitting)
- IP Rating
- Up to IP67
1212 Vertical Bending Neon
Top-bending silicone neon flex for column wraps and sign lighting.
- Size
- 12 x 12mm
- Bend Type
- Vertical (top-emitting)
- IP Rating
- Up to IP67
1616 Vertical Bending Neon
Top-bending silicone neon flex for column wraps and architectural contour lighting.
- Size
- 16 x 16mm
- Bend Type
- Vertical (top-emitting)
- IP Rating
- Up to IP67

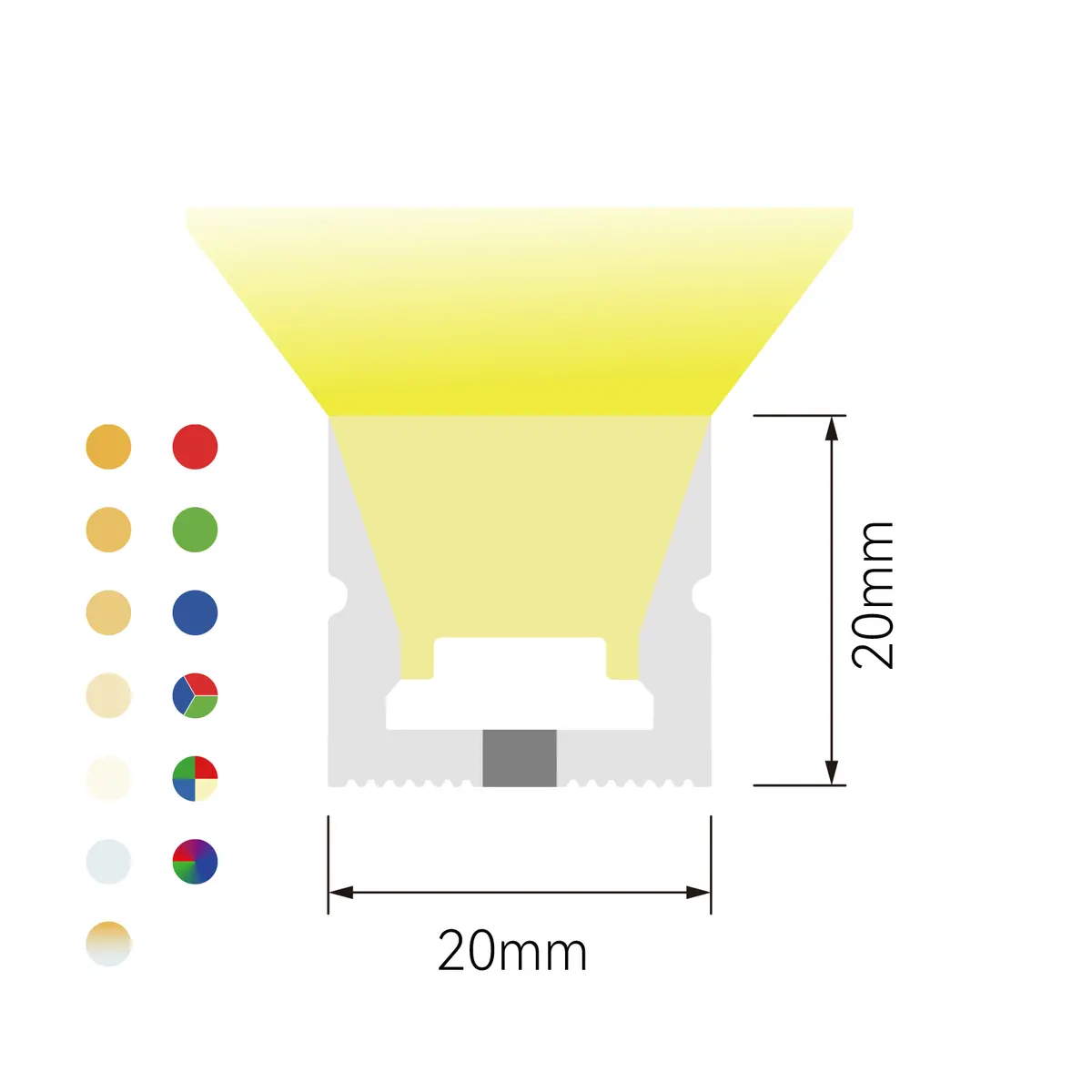

2020 Vertical Bending Neon
Top-bending silicone neon flex for column wraps and sign lighting.
- Size
- 20 x 20mm
- Bend Type
- Vertical (top-emitting)
- IP Rating
- Up to IP67
Horizontal Bending Series
Features a unique optical structure that ensures uniform light with no shadows. Bends parallel to the illuminated surface, allowing for smooth, flat curves along walls and facades. IP68 high protection level available for swimming pool underwater lighting.
0408 Horizontal Bending Neon
Side-emitting silicone neon flex for seamless edge lighting along walls and facades.
- Size
- 4 x 8mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68
0410 Horizontal Bending Neon
Side-emitting silicone neon flex for building outline and decorative lighting.
- Size
- 4 x 10mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68
0612 Horizontal Bending Neon
Side-emitting silicone neon flex for smooth, flat curves along walls and facades.
- Size
- 6 x 12mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68
0613 Horizontal Bending Neon
Side-emitting silicone neon flex for building outline and decorative lighting.
- Size
- 6 x 13mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68

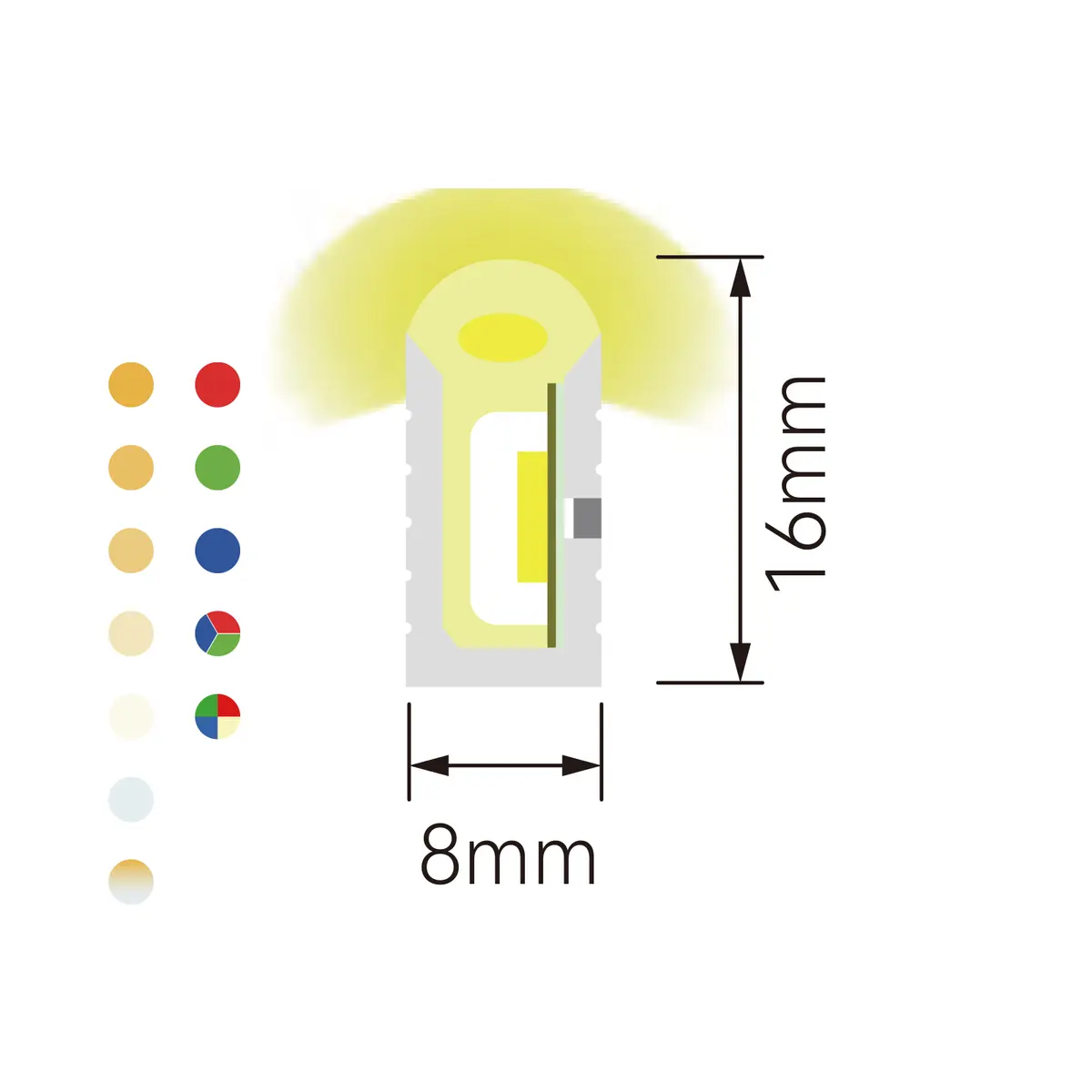

0816 Horizontal Bending Neon
Side-emitting silicone neon flex for smooth, flat curves along walls and facades.
- Size
- 8 x 16mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68
1010 Horizontal Bending Neon
Side-emitting silicone neon flex for building outline and decorative lighting.
- Size
- 10 x 10mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68
1020 Horizontal Bending Neon
Side-emitting silicone neon flex for smooth, flat curves along walls and facades.
- Size
- 10 x 20mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68

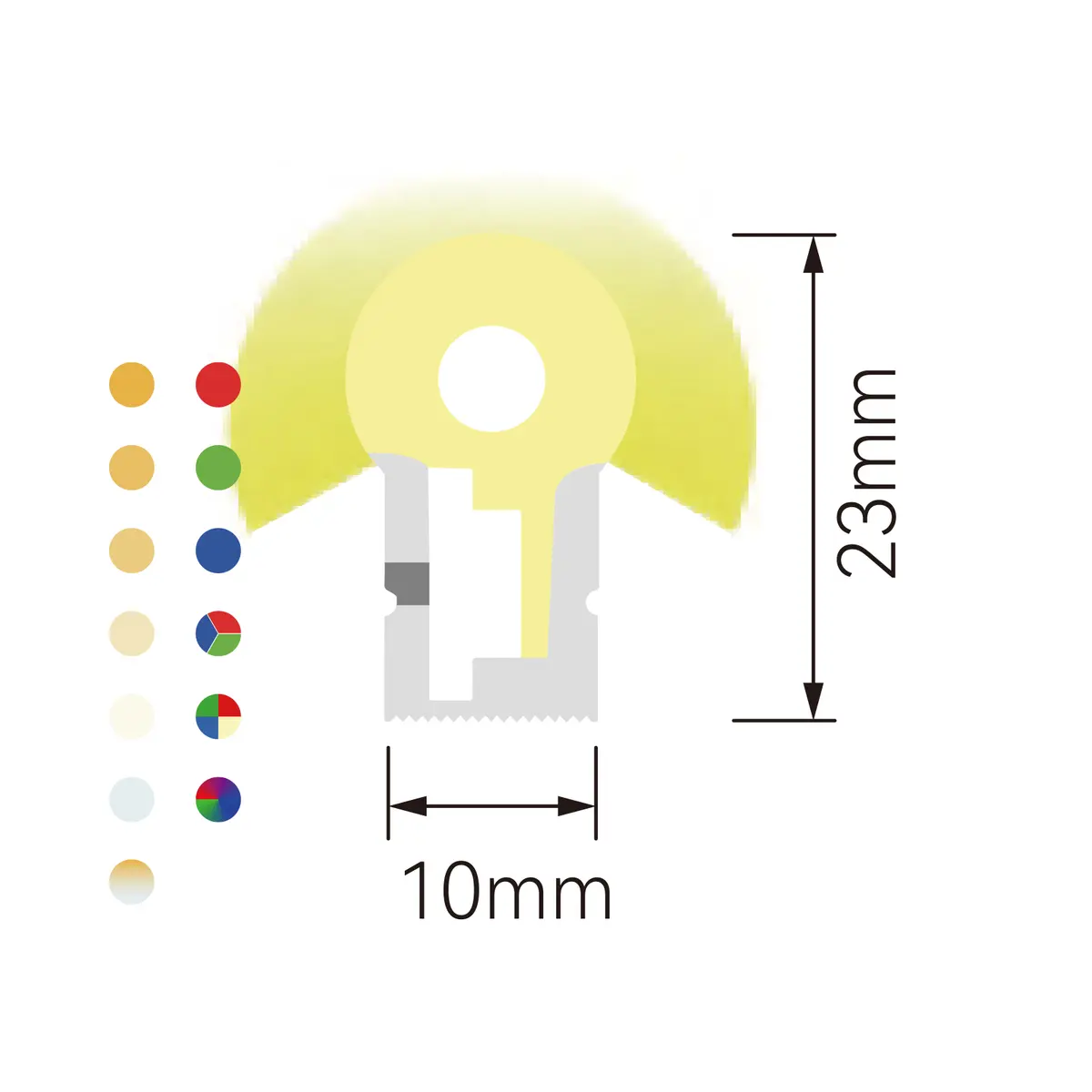

1023 Horizontal Bending Neon
Side-emitting silicone neon flex for building outline and decorative lighting.
- Size
- 10 x 23mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68

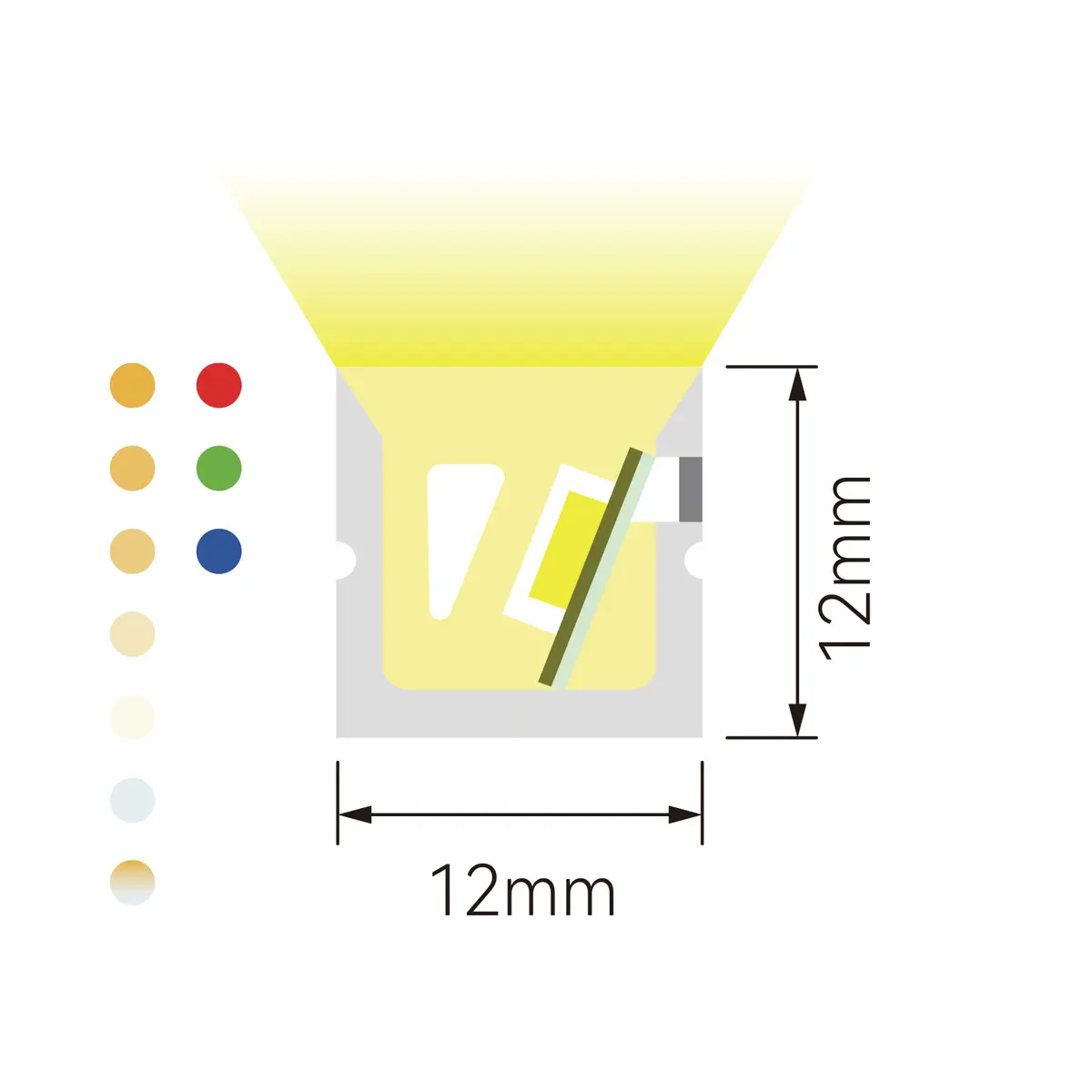

1212 Horizontal Bending Neon
Side-emitting silicone neon flex for smooth, flat curves along walls and facades.
- Size
- 12 x 12mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68

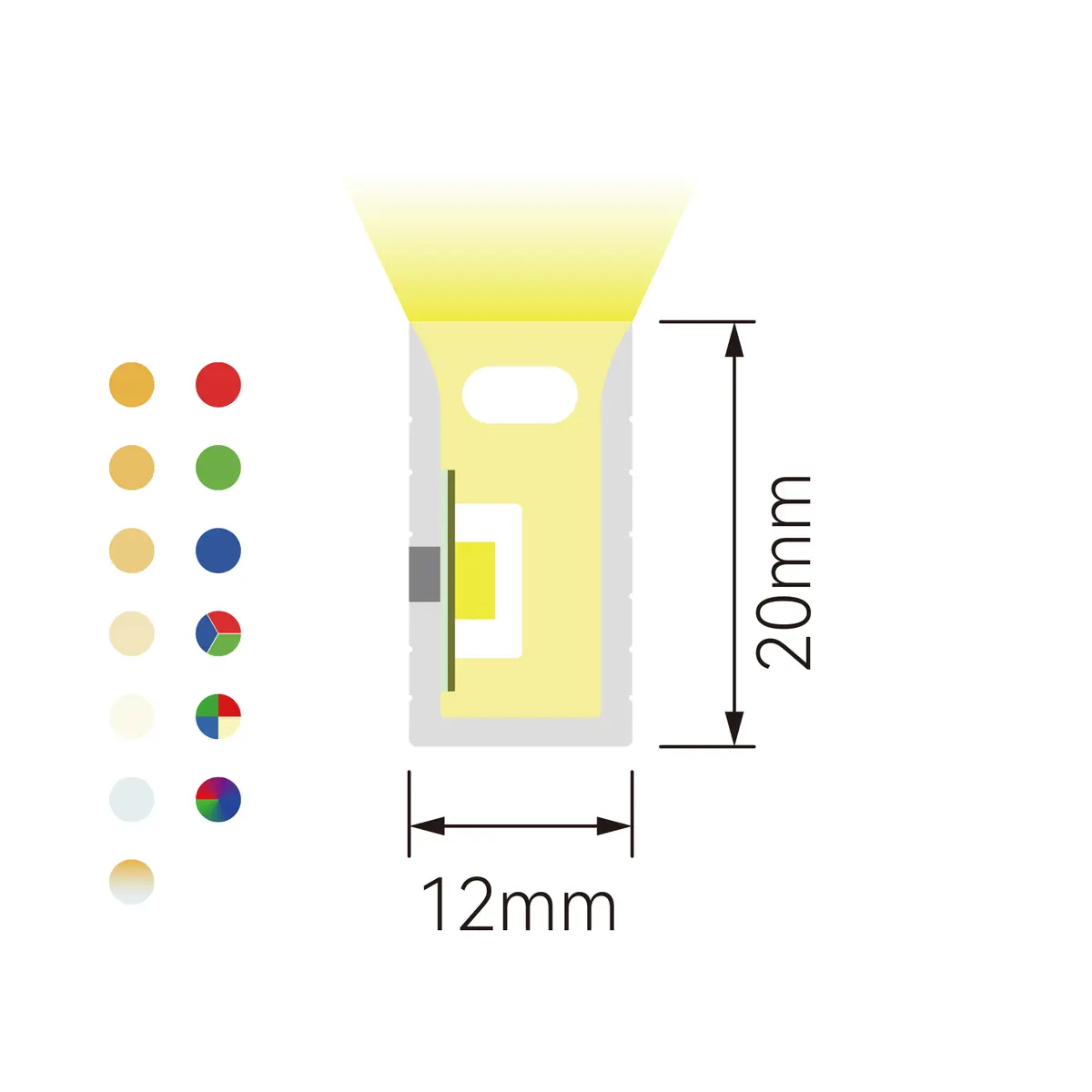

1220 Horizontal Bending Neon
Side-emitting silicone neon flex for building outline and decorative lighting.
- Size
- 12 x 20mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68

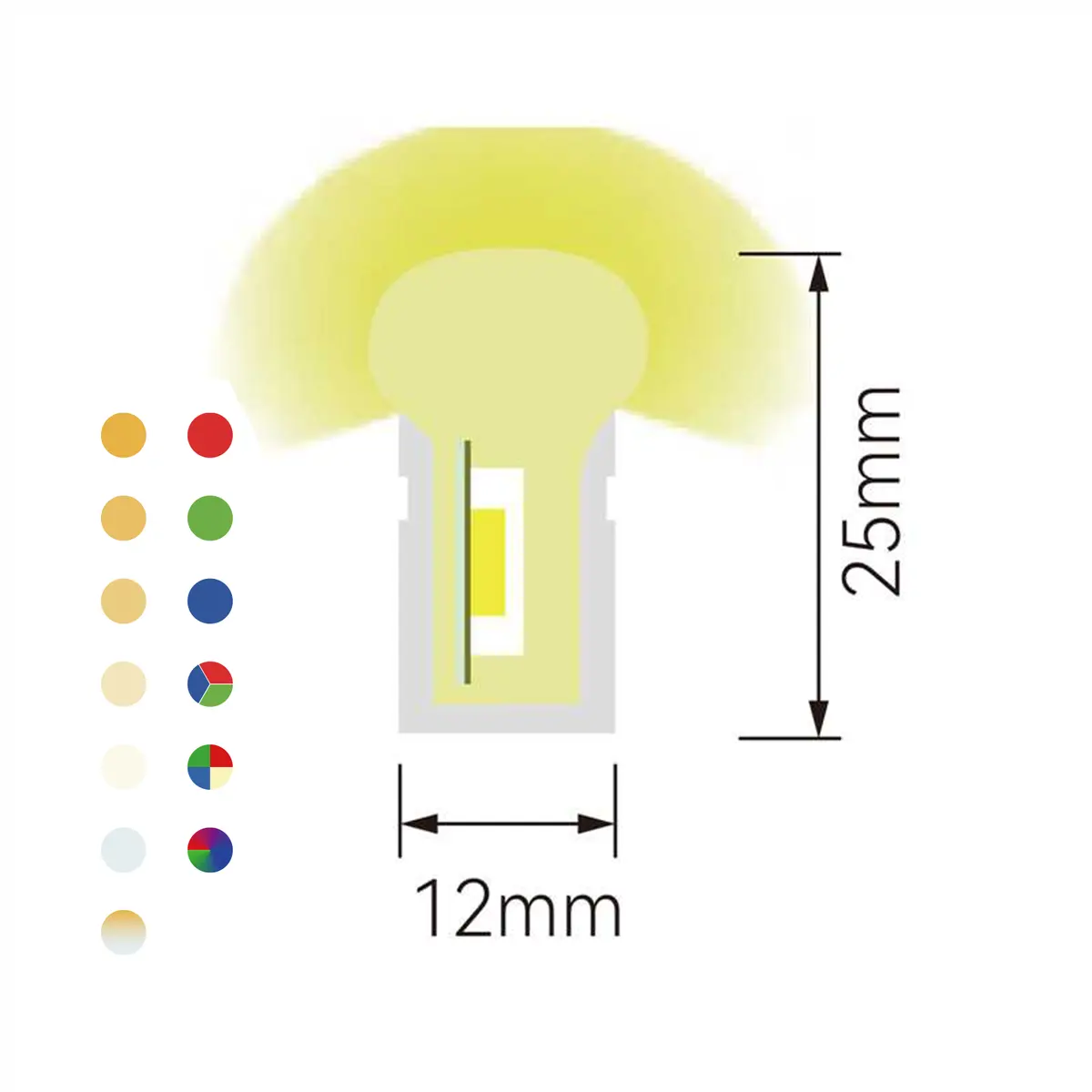

1225 Horizontal Bending Neon
Side-emitting silicone neon flex for smooth, flat curves along walls and facades.
- Size
- 12 x 25mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68

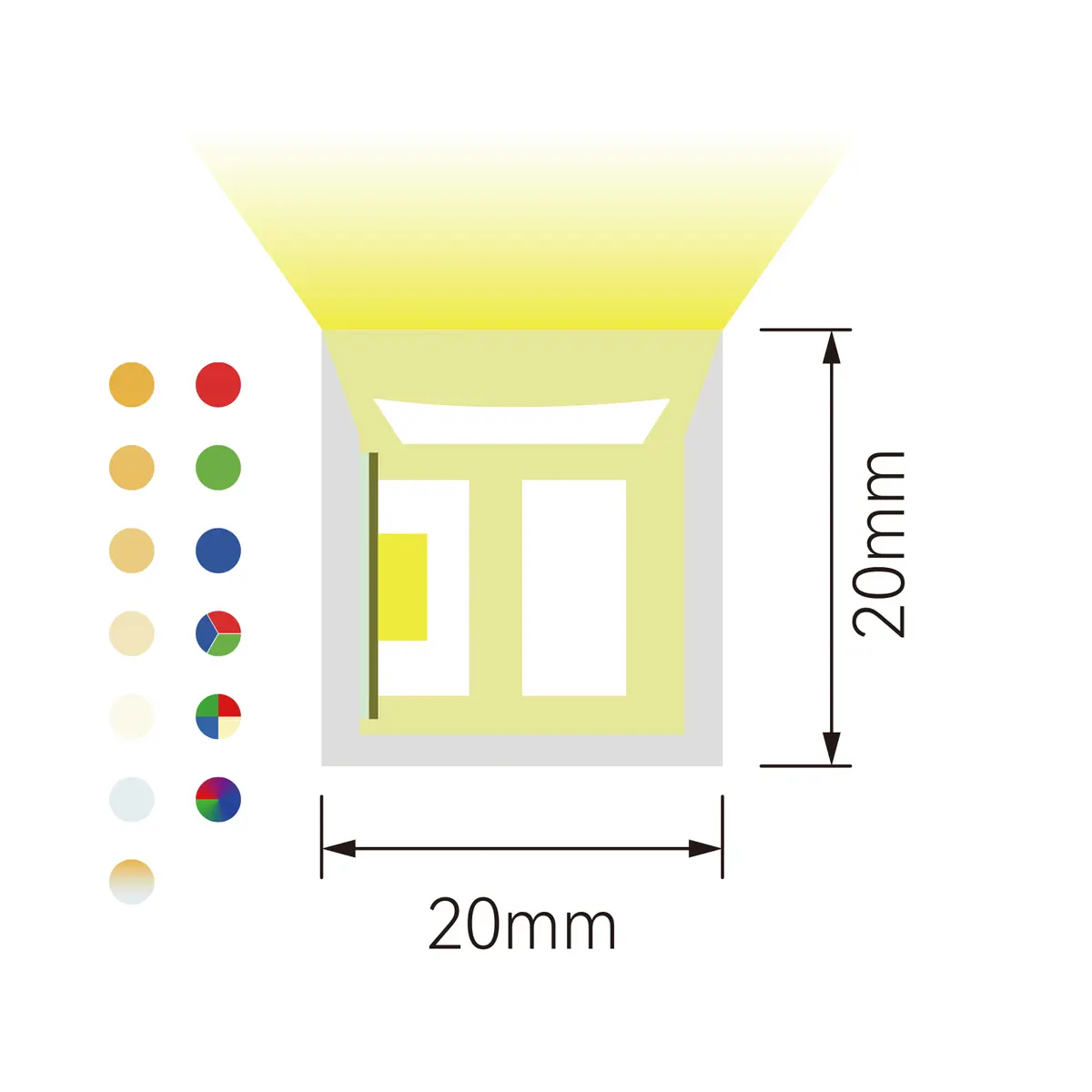

2020 Horizontal Bending Neon
Side-emitting silicone neon flex for building outline and decorative lighting.
- Size
- 20 x 20mm
- Bend Type
- Horizontal (side-emitting)
- IP Rating
- Up to IP68
3D Bending Series
The ultimate in flexibility. This series possesses both vertical and horizontal bending capabilities within a single profile, allowing for free-form twisting and complex spatial designs.
1010 3D Bending Neon
Multi-axis flexible silicone neon combining vertical and horizontal bending for free-form twisting and complex spatial designs.
- Size
- 10 x 10mm
- Bend Type
- 3D (multi-axis)
- IP Rating
- Up to IP67
1212 3D Bending Neon
Multi-axis flexible silicone neon suitable for landscape lighting, curtain walls, and complex shaped projects.
- Size
- 12 x 12mm
- Bend Type
- 3D (multi-axis)
- IP Rating
- Up to IP67
1616 3D Bending Neon
Multi-axis flexible silicone neon combining vertical and horizontal bending in a single profile.
- Size
- 16 x 16mm
- Bend Type
- 3D (multi-axis)
- IP Rating
- Up to IP67
360° Round Series
A tubular design delivering true 360° light emission with no dark areas. Mimics the classic look of round glass neon tubes but with the benefits of modern LED and silicone technology.
360-18 Round Neon
Tubular silicone neon delivering true 360° light emission with no dark areas, suited to artistic installations and suspended shapes.
- Diameter
- 18mm
- Emission
- 360° omnidirectional

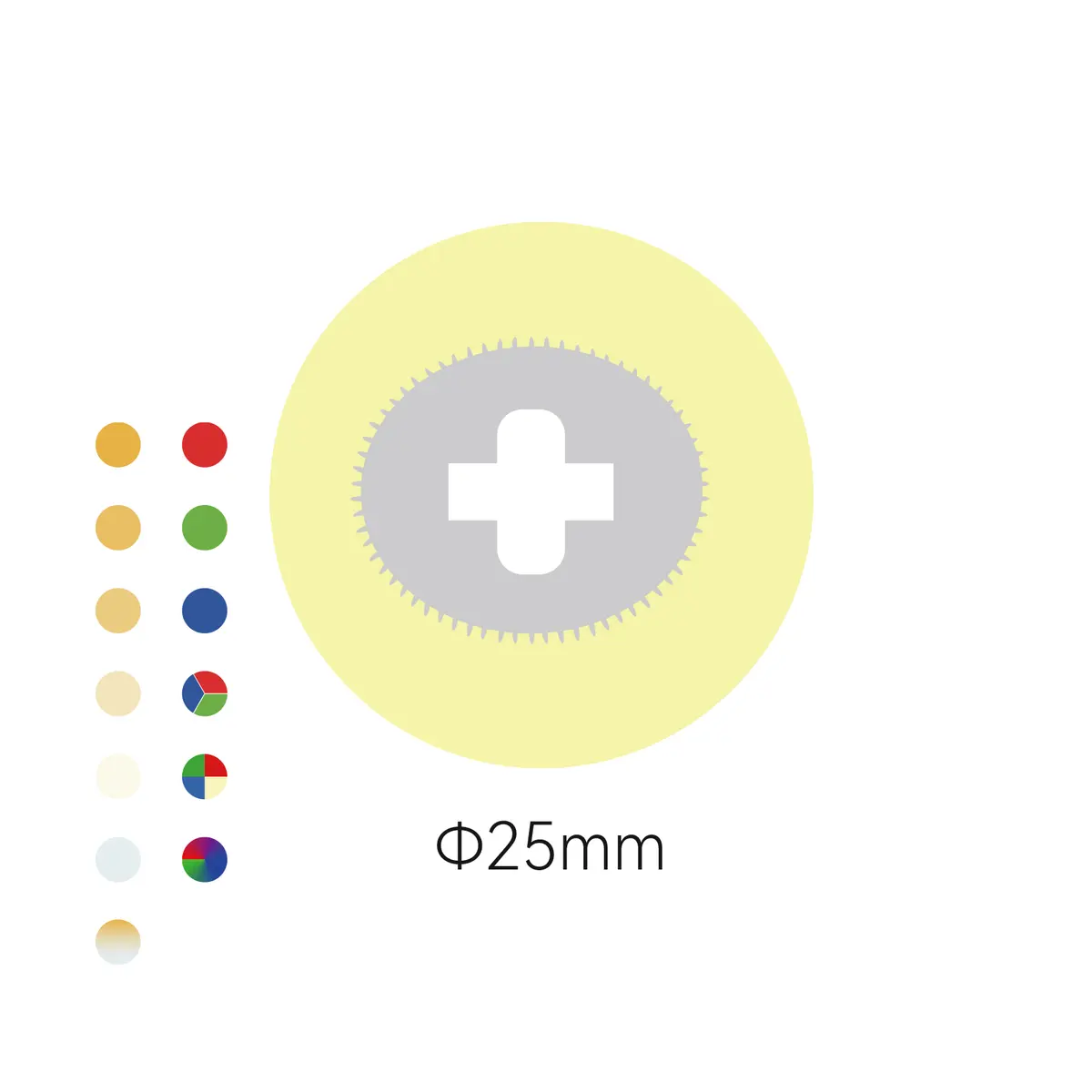

360-25 Round Neon
Tubular silicone neon delivering true 360° light emission with no dark areas, suited to premium commercial space design.
- Diameter
- 25mm
- Emission
- 360° omnidirectional

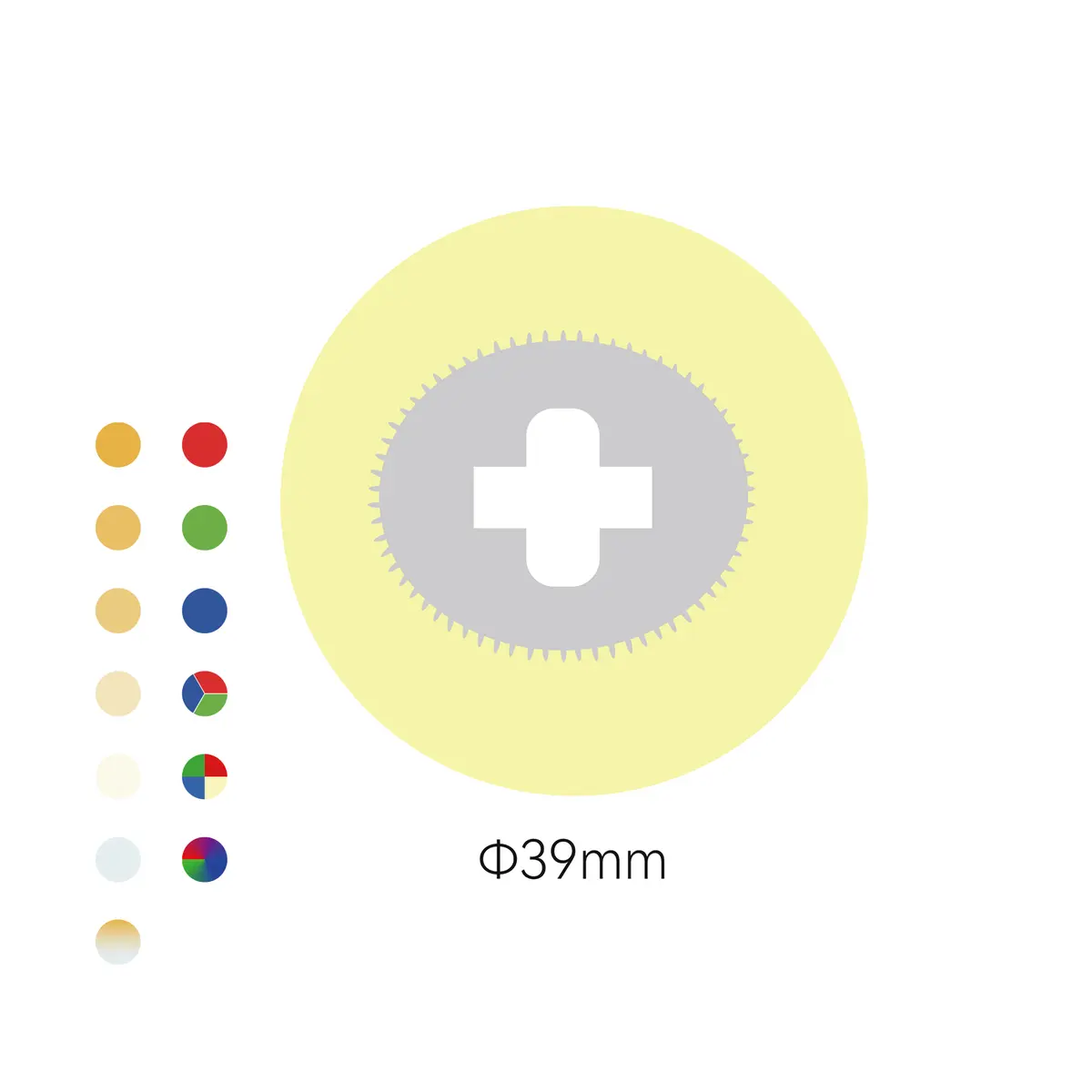

360-39 Round Neon
Tubular silicone neon delivering true 360° light emission with no dark areas, suited to artistic installations and suspended shapes.
- Diameter
- 39mm
- Emission
- 360° omnidirectional
Specifications
Cable Lead Options & Endcap Structures
| Endcap Type | Cable Entry Options |
|---|---|
| Integral End Cap (IP67) | Front Cable Entry, Side Cable Entry, Bottom Cable Entry, Closed End Cap |
| Silicone End Cap (IP67) | Front Cable Entry, Side Cable Entry, Bottom Cable Entry, Closed End Cap |
Wiring Configurations by Color Type
| Type | Wiring | Configuration |
|---|---|---|
| Single Color | 2-wire (V+, V-) | 2-Pin |
| Tunable White | 3-wire (V+, CW, WW) | 3-Pin |
| RGB | 4-wire (V+, R, G, B) | 4-Pin |
| RGBW | 5-wire (V+, R, G, B, W) | 5-Pin |
| RGBCCT | 6-wire (V+, R, G, B, CW, WW) | 6-Pin |
Why specify LED Neon Flex
Safer Than Glass Neon
Operates on low voltage (12V/24V) and is shatterproof, eliminating the fire hazards and fragility associated with traditional glass.
Flexible and Bendable
Available in vertical, horizontal, 3D, and 360° bending profiles to conform to any architectural curve or complex signage.
Indoor to Outdoor Coverage
UV and weather-resistant silicone construction ensures long-lasting performance in harsh outdoor environments.
Optional Underwater Use
PU material variants offer true IP68 protection, making them safe for continuous submersion in pools and fountains.
Uniform Linear Light Output
Advanced extrusion technology and high-density LEDs guarantee a perfectly smooth, dot-free illumination across the entire run.
Easy Installation
A comprehensive ecosystem of mounting clips, straight channels, and bendable channels ensures rapid, secure deployment.
Applications
Questions
What is LED Neon Flex?
LED Neon Flex is a flexible linear lighting product composed of a high-density LED light source and a silicone or PU protective body. It is designed to replace traditional glass neon, offering a safer, shatterproof, and more flexible solution for signage and architectural lighting.
What is the difference between silicone neon and PU neon?
Silicone neon is typically rated IP67 and is ideal for indoor and outdoor decorative lighting. PU neon is typically rated IP68, offering superior resistance to UV and saltwater, making it the standard choice for underwater applications like swimming pools.
Which bending type should I choose?
Choose Vertical Bend for wrapping around columns or top-emitting contours. Choose Horizontal Bend for flat curves along walls. Choose 3D Bend for complex, multi-axis shapes, and 360° Round for suspended or omnidirectional artistic designs.
Can LED Neon Flex be cut and reconnected?
Yes, it can be cut at designated cut marks. It can be reconnected by soldering (most secure) or using solder-free plugs. Second-generation solderless endcaps are also available to help maintain IP ratings after cutting.
Is LED Neon Flex suitable for underwater use?
Yes, specifically the PU Neon Flex series is rated IP68 and is designed for continuous underwater submersion.
Are free samples available?
Yes, stocked samples are available based on standard items for project validation.
Need a custom led neon flex?
Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
