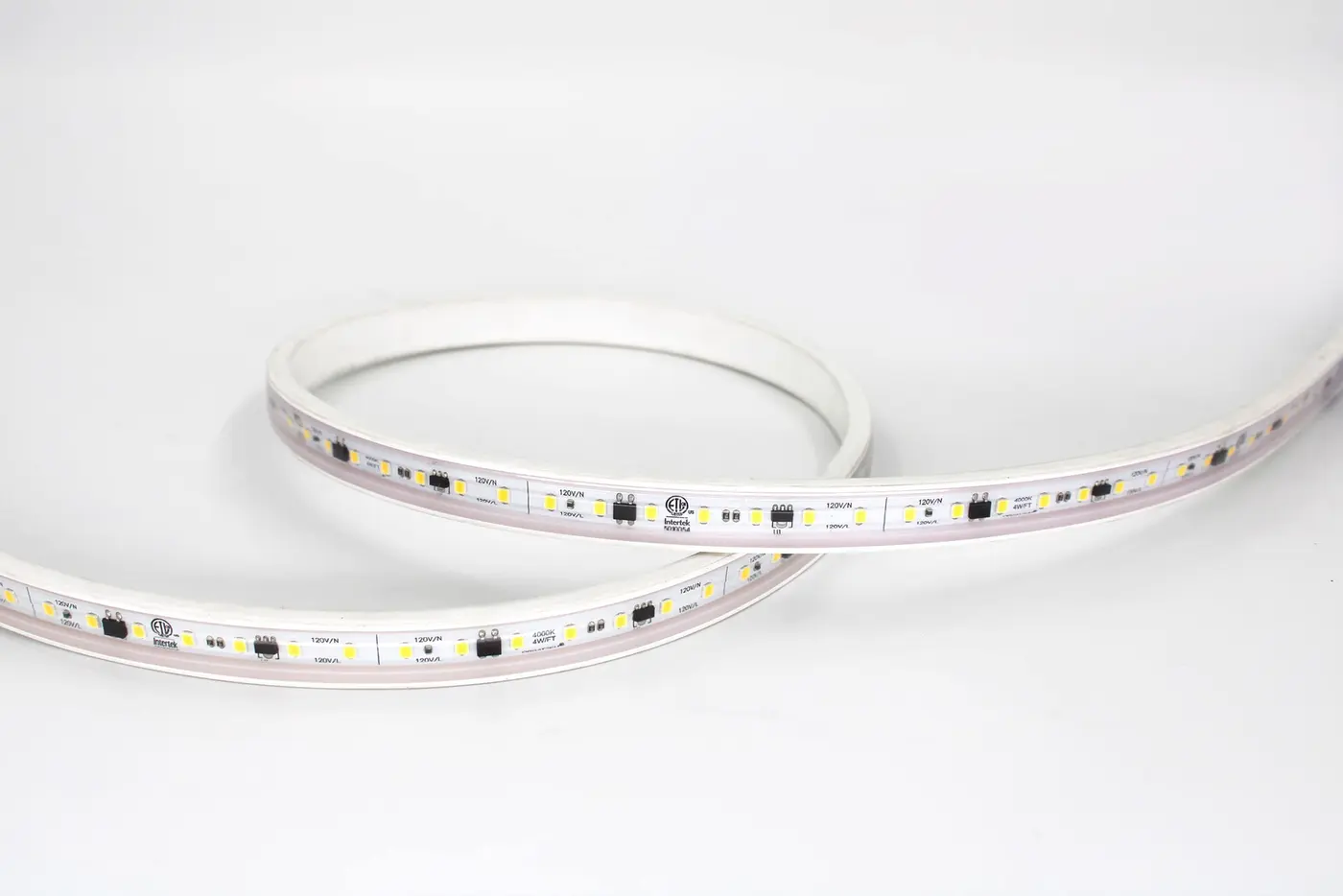

Driverless AC110/230V LED Strip

A driverless AC LED strip integrates rectification or current-control components onto the PCB, reducing the need for a separate plug-end rectifier. It still requires a model-matched power connection, insulation and protection system suitable for the rated input voltage.

A driverless AC strip places the rectification circuit on the PCB, while a traditional high-voltage strip typically uses a rectifier in the power lead. This difference can affect the cut interval, connector design, field-service method and installation space.

No. A 10cm cut interval is available only for selected PCB and voltage configurations. Buyers should confirm the rated voltage, model number and marked cut unit before ordering or cutting the strip.

Maximum connected length depends on the rated voltage, power per meter, PCB design, power lead, ambient temperature and allowable output variation. Selected models may support runs up to 50m, but the permitted length must be confirmed by model.

Not directly in most systems. DALI or 0–10V integration requires a compatible control interface or control device. Phase-cut dimming may be available for selected models when paired with a tested compatible dimmer.

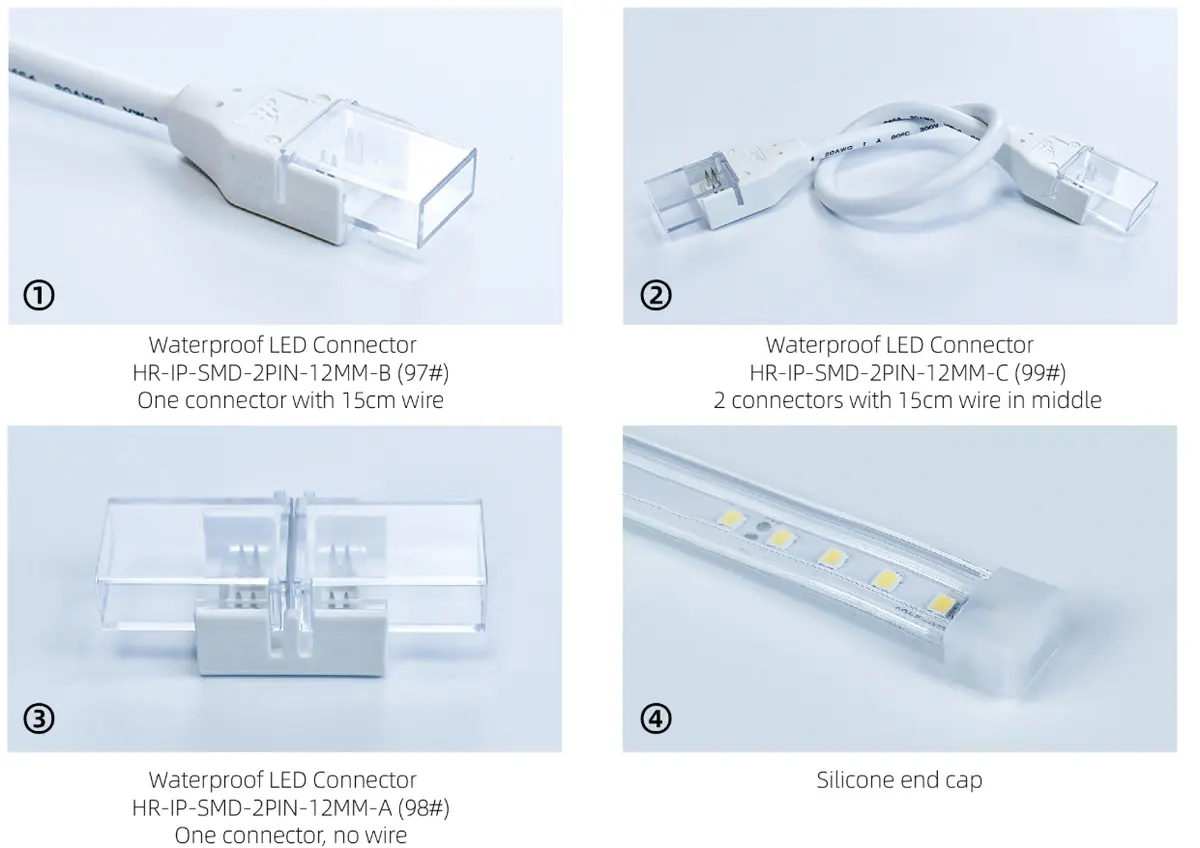

Only approved field-connectable models should be cut at the marked positions with the circuit de-energized. Factory-sealed outdoor versions should not be modified unless a model-specific procedure and matched components are provided. Field modification may affect the original IP rating and certification scope.
