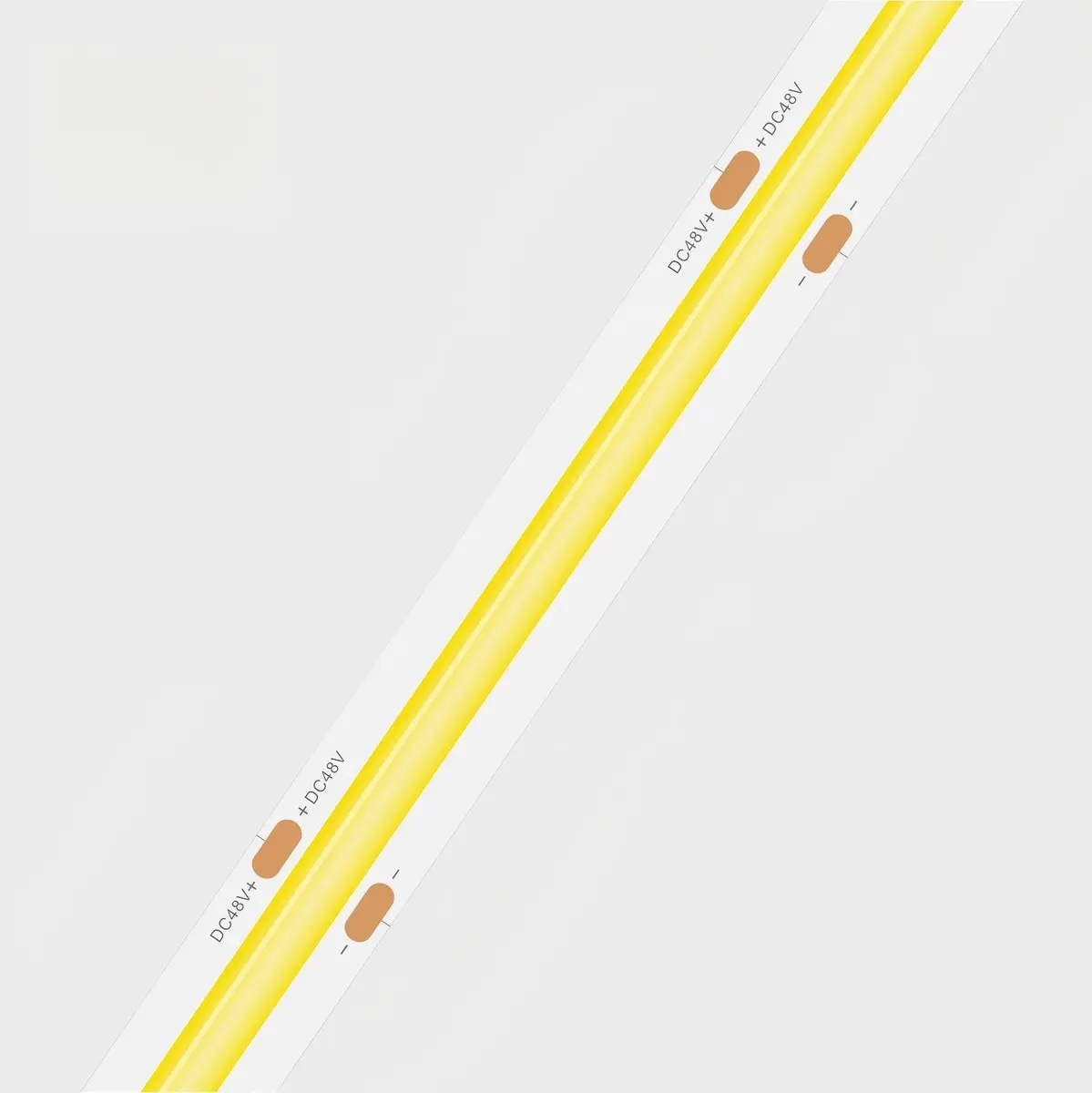

48V COB LED Strip
Designed for a continuous appearance when matched with a suitable profile, diffuser and viewing distance.
- Voltage
- 48V
- Type
- COB

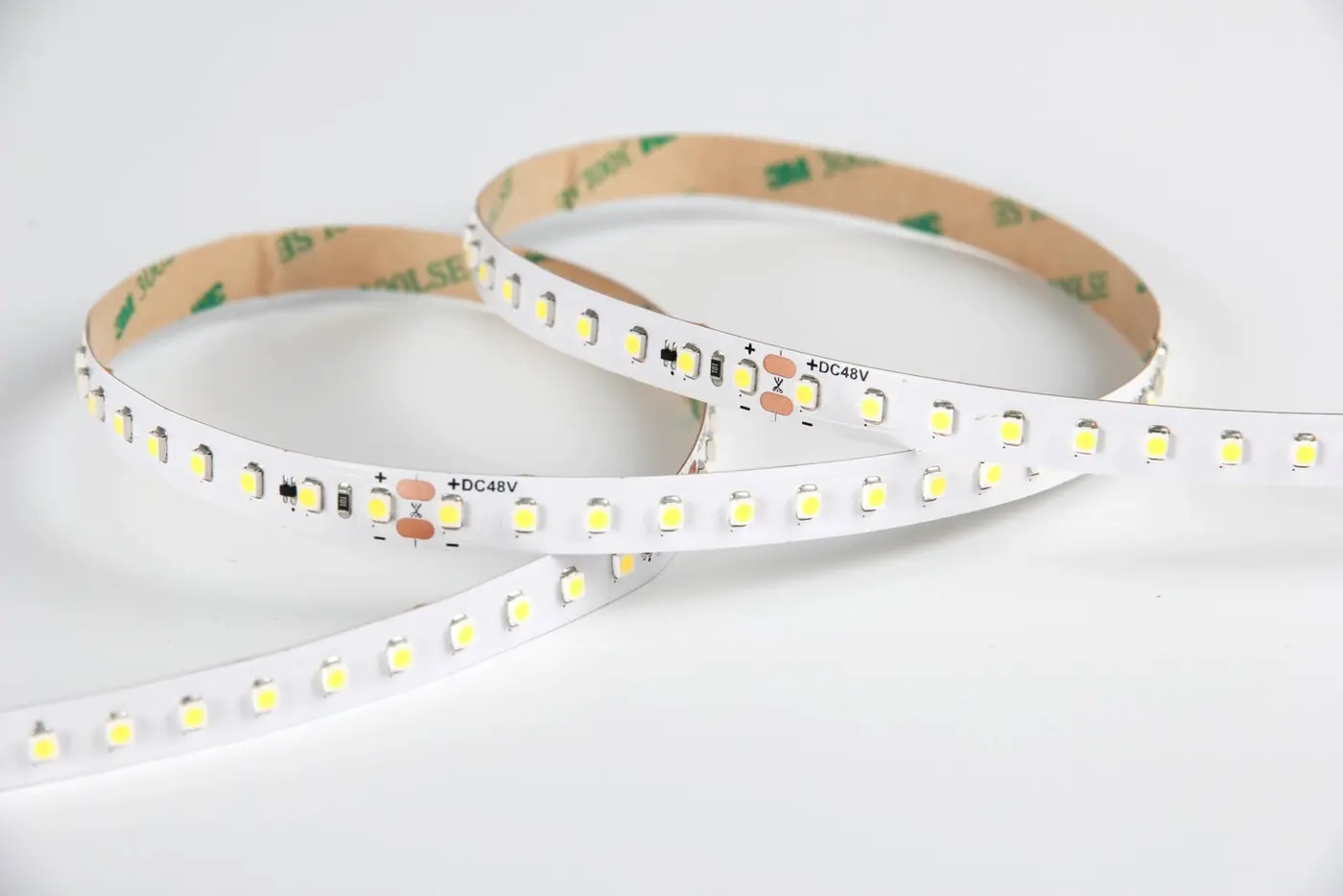

36V/48V Ultra Long LED Strip
Constant-current 36V/48V LED strip series engineered to minimize intermediate power-feed points on long commercial runs.
Artcolor's 36V and 48V long-run LED strip series are built for commercial and architectural installations where reducing intermediate power-feed points can simplify system design. Supported run length is confirmed per model based on power load, feed method, cable size, ambient temperature and permitted end-of-run brightness variation. Series are available in Single Color, Tunable White, RGB, RGBW and RGBTW configurations with IP65/IP67 options and CRI>90.
Series overview
- Run Length
- 120m / 100m / 80m (Powered by 2 end)
- Voltage Options
- 48V / 36V / 24V DC
- Constant Current Type
- IC External
- Available Colors
- Single / TW / RGBW/COB
- IP Ratings
- IP20 / IP65 / IP67
- CRI
- CRI > 90
- Warranty
- 3–5 Years
- Manufacturing
- OEM / Custom Support
Products

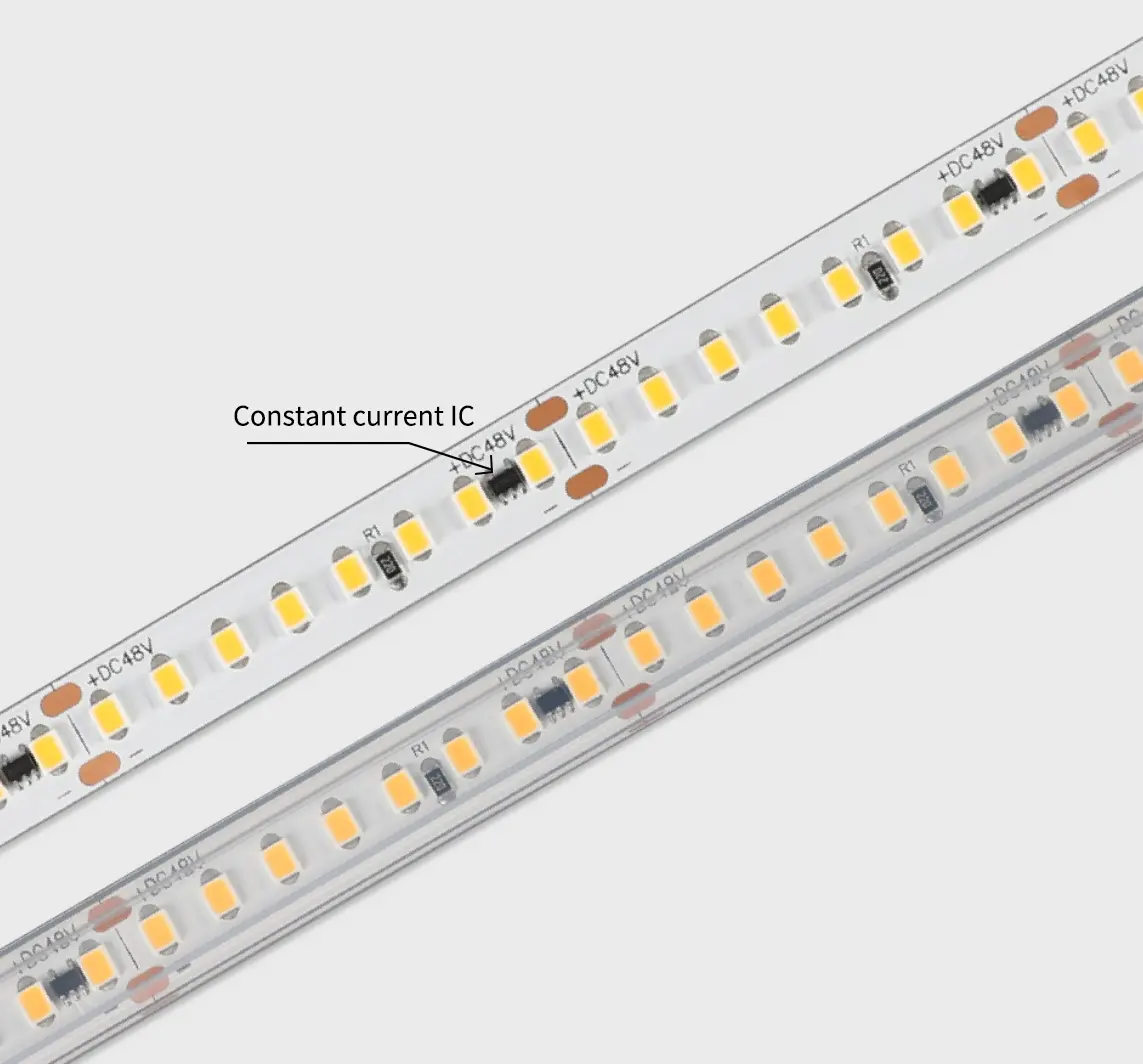

48V Single Color LED Strip
High-efficacy monochromatic light available in multiple color temperatures (2700K-6500K) for reliable, ultra-long run architectural accents.
- Voltage
- 48V
- Type
- Mono / Single Color
- CCT Range
- 2700K-6500K

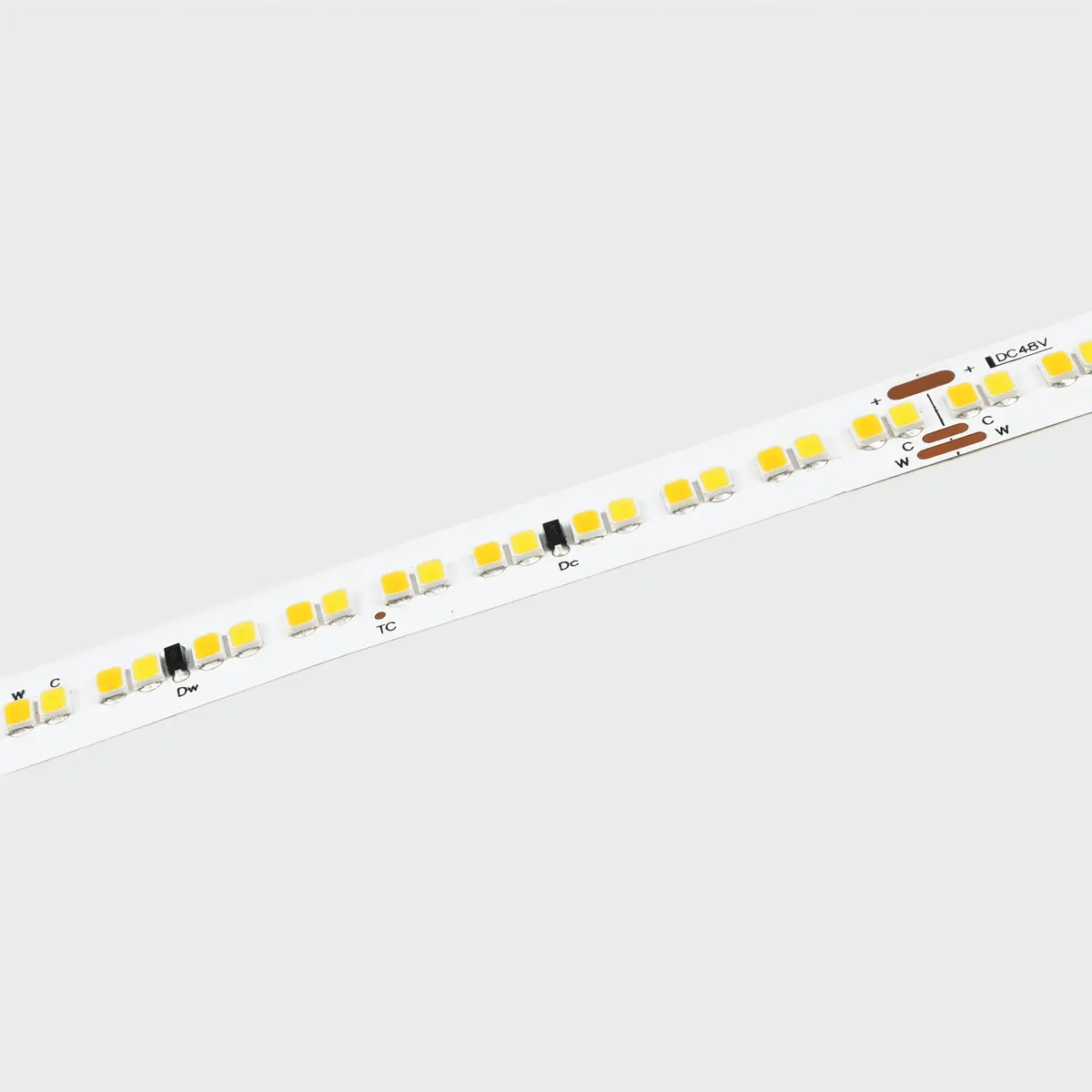

48V Tunable White LED Strip
Supports adjustable white-light configurations where the available CCT range is confirmed by model.
- Voltage
- 48V
- Type
- Tunable White (CCT)
48V RGB LED Strip
Vibrant, consistent color mixing across 50-meter runs without signal degradation. Built for entertainment venues and dynamic facades.
- Voltage
- 48V
- Type
- RGB
48V RGB+W LED Strip
Combines full RGB color with a dedicated pure white diode, achieving a broader color gamut and high-CRI white light.
- Voltage
- 48V
- Type
- RGB+W
Specifications
24V vs 48V Systems
| Spec | 24V | 48V |
|---|---|---|
| Max Continuous Run | 5 – 10 Meters | 120M |
| Power Feed | Double end power | Double end power |
| Current / Heat | Standard heat generation | -50% electrical current reduction |
IP Protection Options
| IP Rating | Construction | Description |
|---|---|---|
| IP20 | Bare PCB board with exposed LED chips | Ideal for dry indoor applications, typically installed inside aluminum profiles |
| IP54 | Nano coating applied to the surface | Invisible protection against moisture and dust for damp indoor environments |
| IP65H | Heat-shrink tube encapsulation | Thin, transparent protective sleeve offering basic splash resistance |
| IP65 | Silicone drip coating | Surface coated with silicone to protect against dust and damp environments |
| IP67 | Silicone tube enclosure | Hollow silicone tube providing protection without color shift |
| IP67E | Solid extrusion | Fully encased solid silicone for outdoor architectural use and enhanced durability |
| IP68 | PU potting | Fully sealed structure designed for permanent underwater immersion |
Why specify 36V/48V Ultra Long LED Strip
Long, Uniform Runs
On-strip constant-current regulation supports continuous runs up to 120 meters with minimal brightness variation from start to end.
Extended Linear Layouts
A validated long-run LED strip model may reduce the number of intermediate power-feed points required for corridors, coves and continuous architectural light lines.
Limited Power-Feed Access
Fewer feed locations may simplify projects where additional power cables, drivers or maintenance access points are difficult to place.
Defined Start-to-End Performance
On-strip constant-current regulation can help maintain LED current while the supply voltage remains within the regulator's designed operating range.
OEM/ODM System Integration
Lighting brands, fixture manufacturers and project suppliers can evaluate the LED strip, power supply, cable, connector, reel length and packaging as one coordinated system.
Global Certifications
Backed by UL, ETL, CE, CB and RoHS compliance documentation confirmed per model, voltage and IP construction.

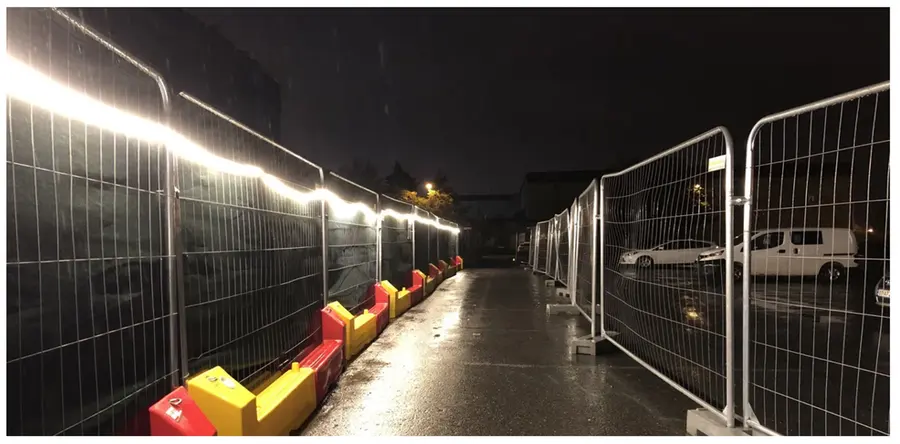

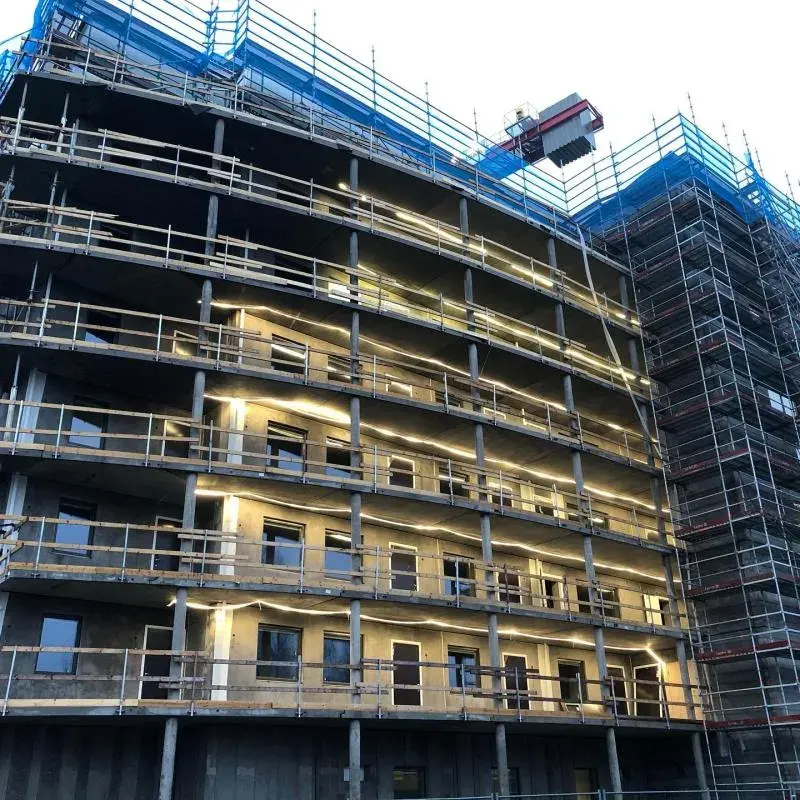

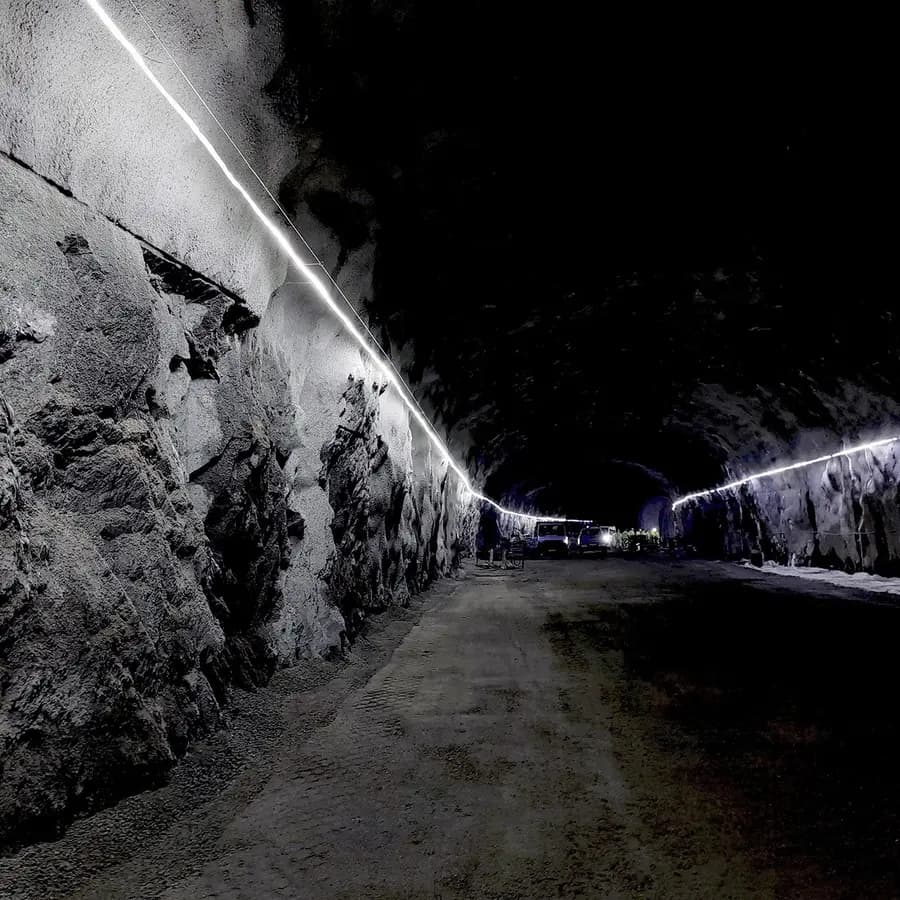

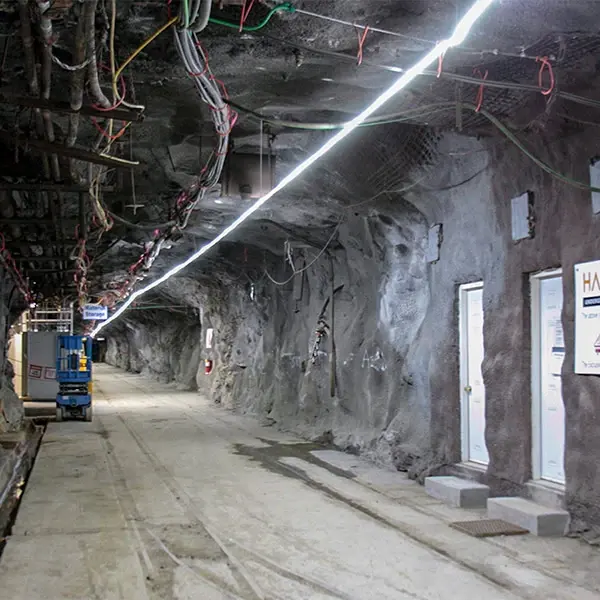

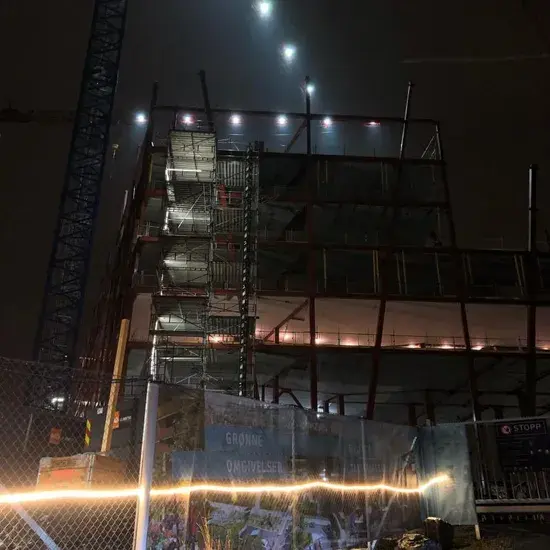

Applications
Questions
What kind of power supply does the super long constant current LED strip need?
It requires a standard constant voltage power supply (24V, 36V, or 48V depending on the strip model). The constant current ICs on the strip itself handle the current regulation. Do NOT use a constant current driver.
Can the super long constant current LED strip be dimmed?
Yes, they are fully dimmable. They support PWM dimming methods including 0-10V, DALI, and TRIAC via compatible PWM controllers or dimmable power supplies. For optimal performance, a PWM frequency ≤ 2kHz is recommended.
What are the longest LED strip lights available?
With a single-end power input, the 48V constant current strips can reach 50 meters. Powering the strip from both ends (looping the power) can achieve continuous runs of up to 100 meters without visible voltage drop.
Need a custom 36v/48v ultra long led strip?
Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
More LED Strip

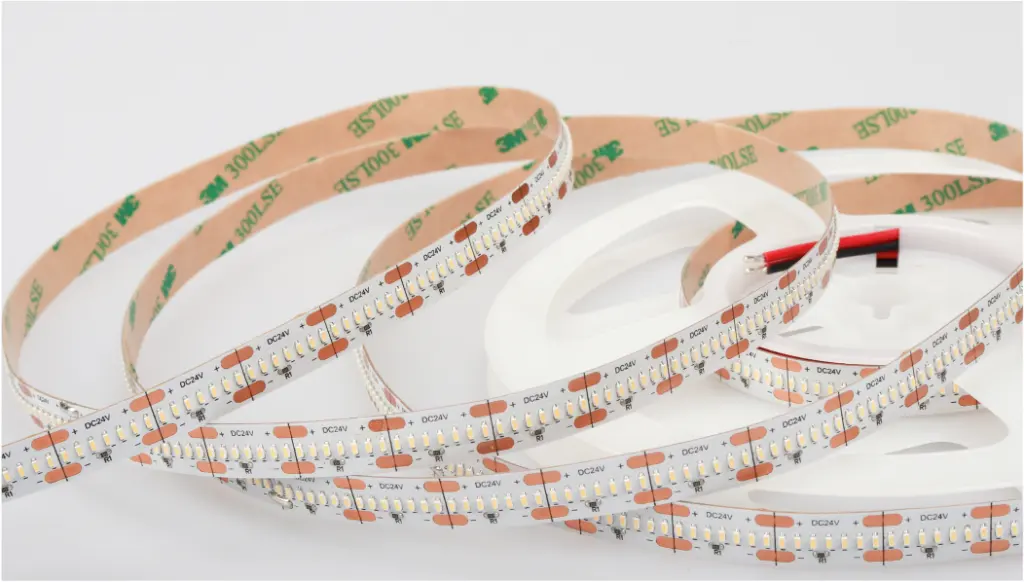

High Density LED Strip
High-density LED strips engineered for smoother, hotspot-free light in shallow profiles.
5 products

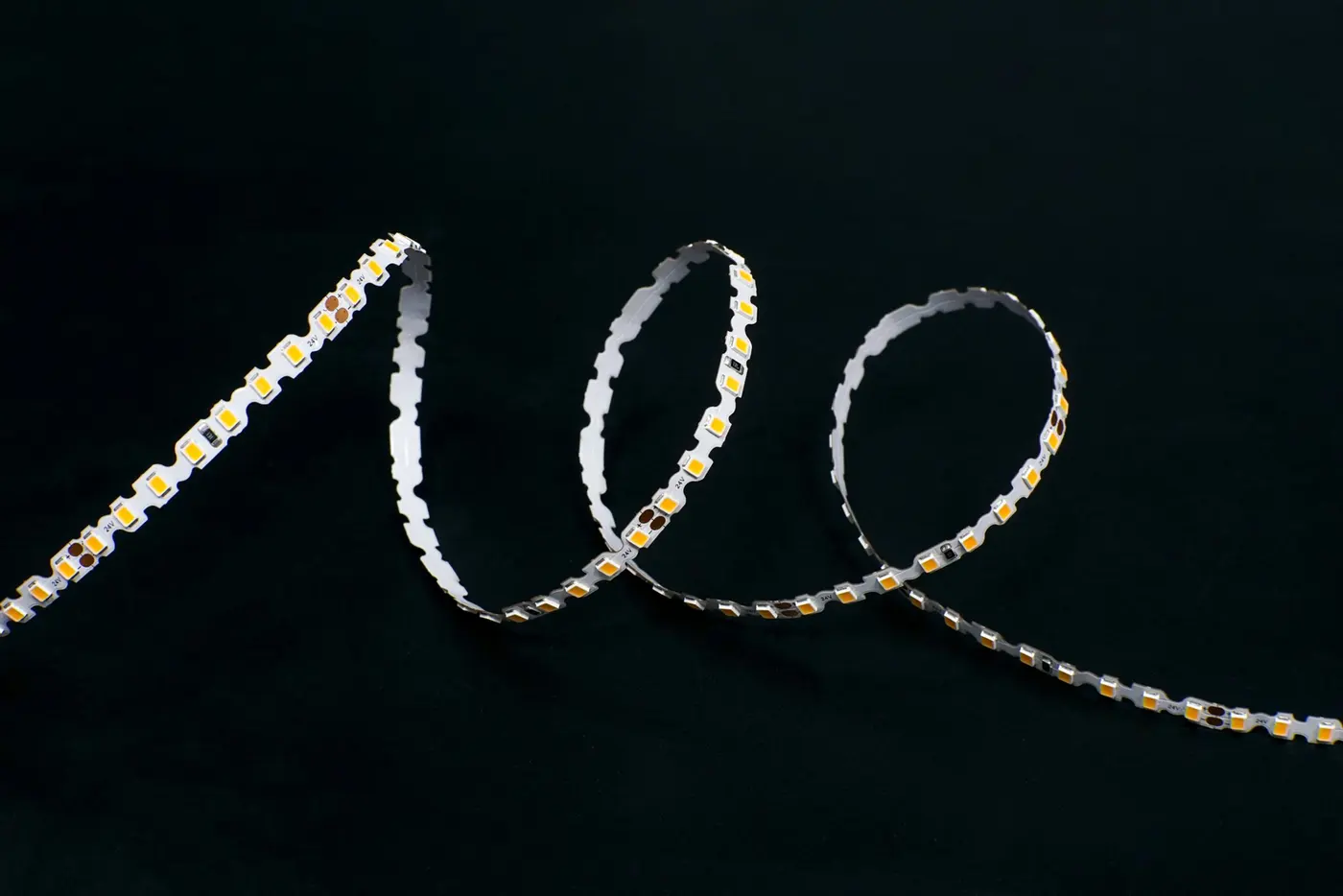

Zigzag S Shape LED Strip
