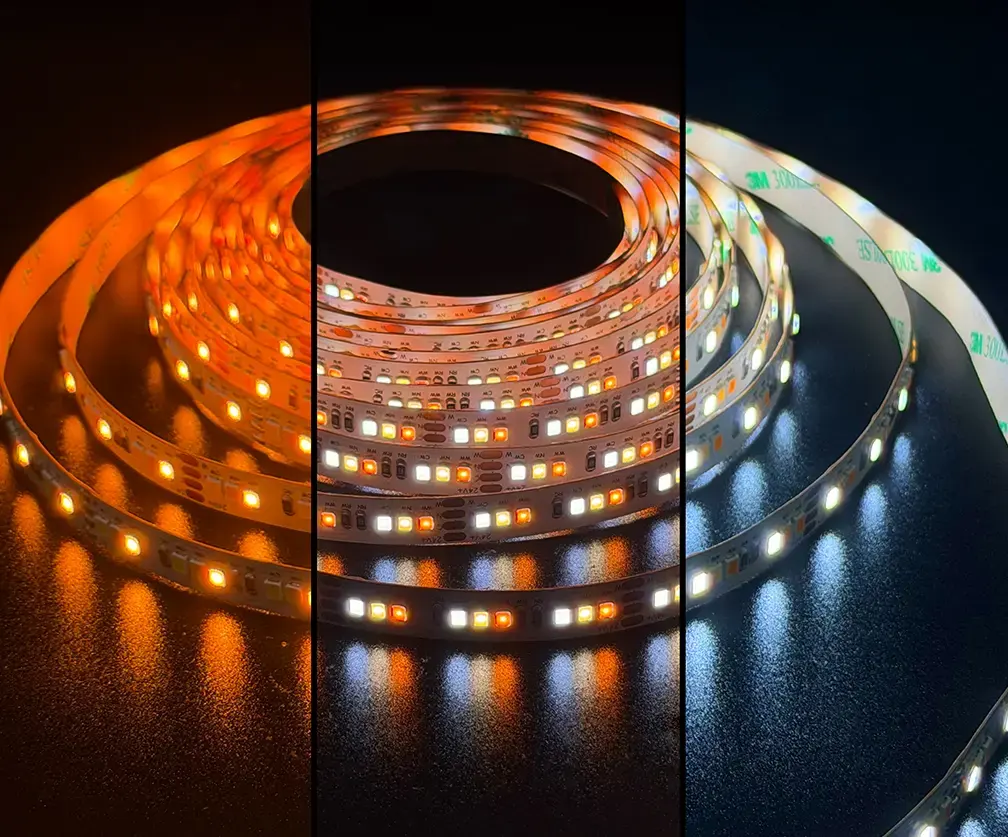

Full Color LED Strip (SMD2835, 1600K–12000K)

No. This series uses independently controlled white-light channels to adjust correlated color temperature. It is designed for extended tunable-white output rather than saturated red, green and blue color effects. The exact channel layout must be confirmed by model.

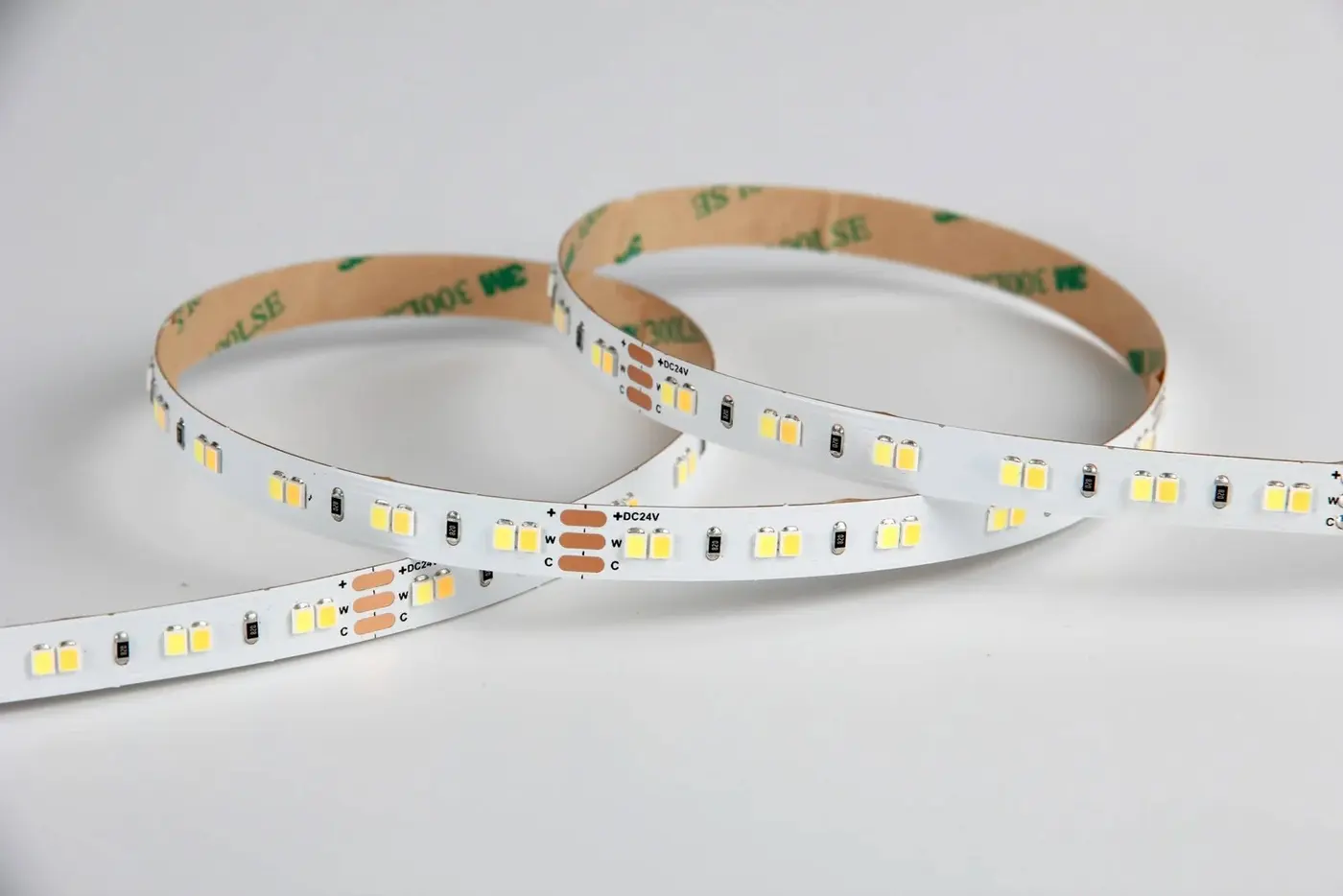

The strip combines two or more LED channels with different white-light or amber-white endpoints. A compatible multi-channel controller adjusts the relative output of these channels to create intermediate white-light settings. The endpoint LEDs, channel count and control method depend on the selected model.

Not automatically. Intermediate chromaticity depends on the LED endpoints, channel-driving ratio, controller resolution, thermal conditions and calibration. Required CCT setpoints and permitted Duv should be confirmed through finished-strip testing.

Not necessarily. CRI Ra, R9, TM-30 values, light output and efficacy may change as the channel ratio changes. Buyers should review measurements at the warm endpoint, selected intermediate settings and cool endpoint rather than relying on one CRI value for the complete range.

The required channel and wire count depends on the circuit architecture. A two-channel tunable-white strip commonly uses separate warm and cool outputs with a shared connection, while a multi-channel design may require additional outputs and control logic.

Use a constant-voltage driver matching the strip's nominal voltage and total load. The controller must support the correct channel count, wiring logic, per-channel current and total output capacity. DALI, 0-10V, DMX or smart control requires a compatible controller or dimmable driver between the control system and the LED strip.
