Free-bend, dual-axis flexible LED wall washer for curved facades and irregular architectural surfaces.
Artcolor's 3D Bending Flex Wall Washer is a highly flexible, linear LED lighting fixture engineered to bend both horizontally and vertically. It conforms to complex, curved architectural surfaces, providing smooth, uniform vertical illumination for facades, columns and waves, and is available in 26x20, 20x20 and 16x16 sizes with an IP65 optical-grade silicone body for outdoor use.

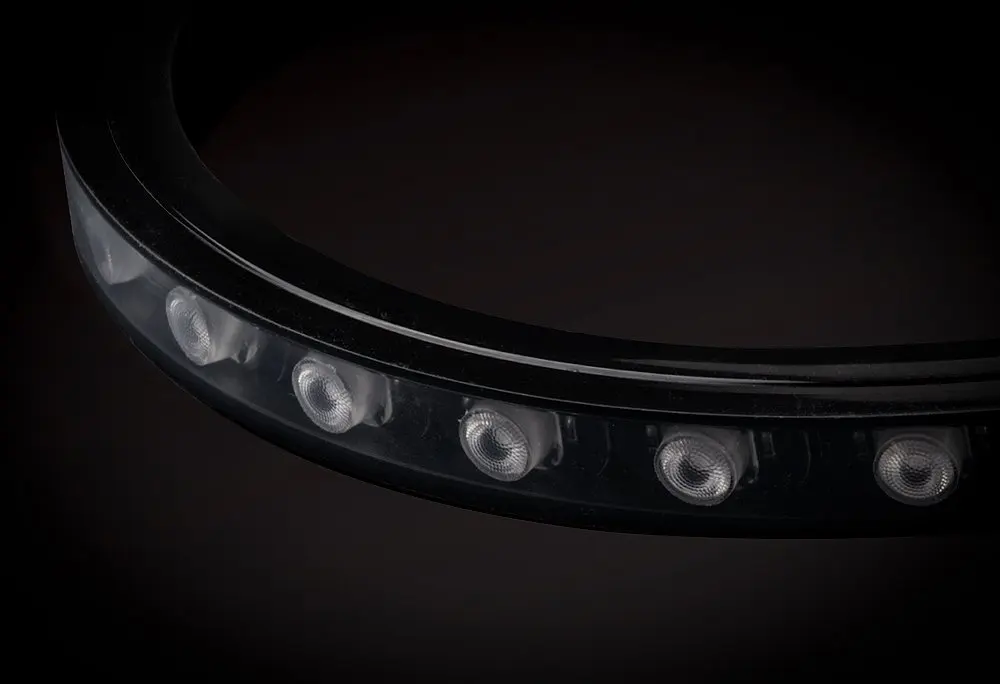

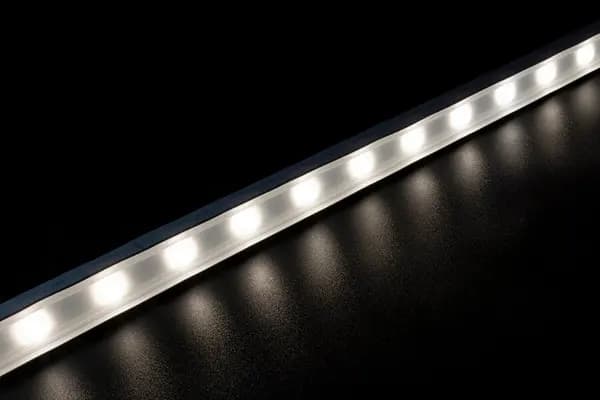

Engineered for mid-to-large facades, building outlines, and projects requiring robust wall wash performance. Serves as the primary workhorse when output integrity and classic facade wall washing logic are prioritized over extreme miniaturization, offering the structural stability needed for long vertical drops while maintaining necessary flexibility.

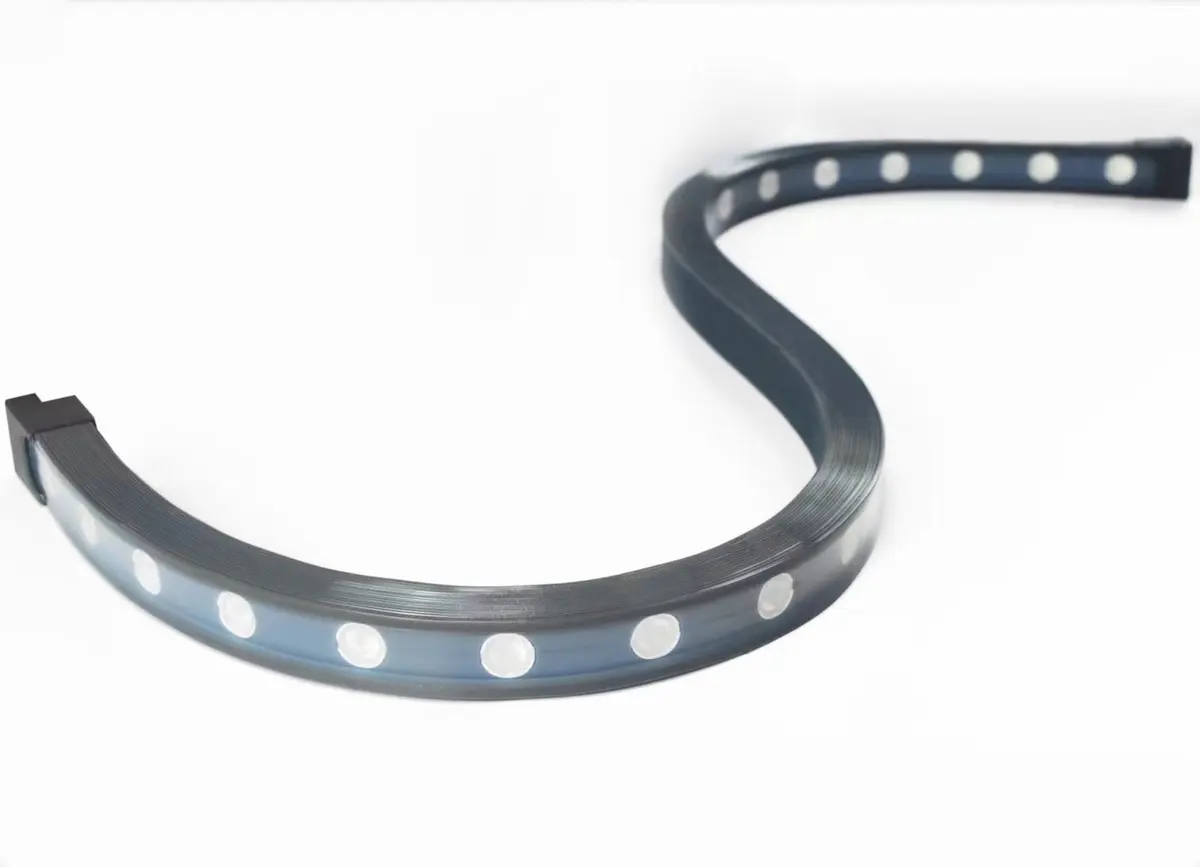

Strikes the perfect balance between physical dimension, installation freedom, and optical output. Suitable for mid-scale architectural and landscape applications where buyers seek a harmonious compromise, providing excellent wall washing effects without demanding excessive mounting space.

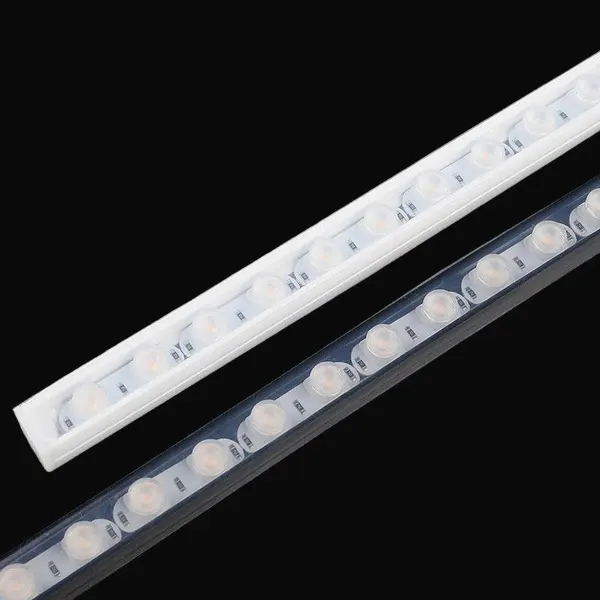

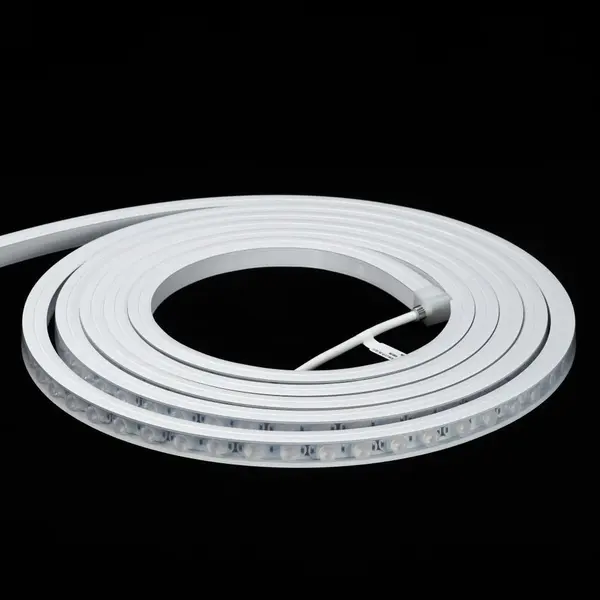

Tailored for detailed contours, refined architectural edges, and projects where the fixture itself must remain discreet. Delivers targeted wash lighting without the bulk of traditional units when a lightweight structure, intricate installation paths, and minimal visual footprint are the priority.
Dual-axis flexibility for intricate contours and arcs.
Smooth, flawless light distribution for large facades.
Optical-grade silicone built for harsh environments.
Easily adapted on-site to precise architectural dimensions.
Helps fit building facades and landscape outlines more naturally, leaving a cleaner visual trace during the day.
Compact flexible profiles hide easily within architectural slots compared to bulky metal brackets.
A 3D bending flex wall washer is an architectural lighting fixture encased in optical-grade silicone that can bend both horizontally and vertically simultaneously. It is designed to replace rigid metal wall washers on curved facades and complex surfaces.
Unlike standard metal wall washers that require straight installation paths, flexible silicone wall washers adapt to the natural curves of a building. They offer superior hidden installation friendliness and eliminate the need for segmented, disjointed mounting on arcs.
Choose 26×20 for large building facades requiring robust output. The 20×20 is a balanced choice for standard curved architectural outlines. Select the 16×16 compact profile when installation space is highly restricted and the fixture must remain hidden.
Use a 15° narrow beam for tall walls requiring focused projection. A 30° beam is standard for general wall washing. Opt for asymmetric lenses (like 25°×45°) when directional control is needed to minimize light spill, and wide beams (60°) for shorter, broader surface coverage.
Yes, these flexible LED wall washers are rated IP65, featuring anti-UV optical silicone extrusion and hidden end caps, making them highly reliable for permanent outdoor architectural and landscape use.
These fixtures support standard ON/OFF, DALI, and DMX512 Addressable protocols, allowing for static white, tunable white, RGB, and dynamic RGBW lighting effects.
Need a custom 3d bending flex wall washer?
Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
