High Efficiency Neon Flex

Neon flex with 50%+ higher luminous efficiency for long, shadow-free architectural runs without voltage drop.

Artcolor's High Efficiency Neon Flex adopts a special optical structure and high-efficiency LED strip light source to deliver luminous efficiency more than 50% higher than conventional neon flex. It is engineered for premium architectural lighting projects that need stronger visibility, immaculate surface uniformity, and continuous runs up to 20m at 24V without noticeable voltage drop, available in Top Bending, Side Bending and 3D Bending directions.

View 3 products Request a quote

Series overview

Luminous Efficiency: Max 110 LM/W, 50%+ higher than conventional neon
Run Length: Up to 20m at 24V, no voltage drop (Constant Current)
Bend Directions: Top Bending, Side Bending, 3D Bending
Protection Level: IP67
Chemical Resistance: UV, salt solution, acid and alkali resistant
Certifications: UL, ETL, CE, CB, RoHS
Section Options: e.g. 12x12mm, 16x15mm, 12x20mm
Voltage: 24V constant current (standard)

Products

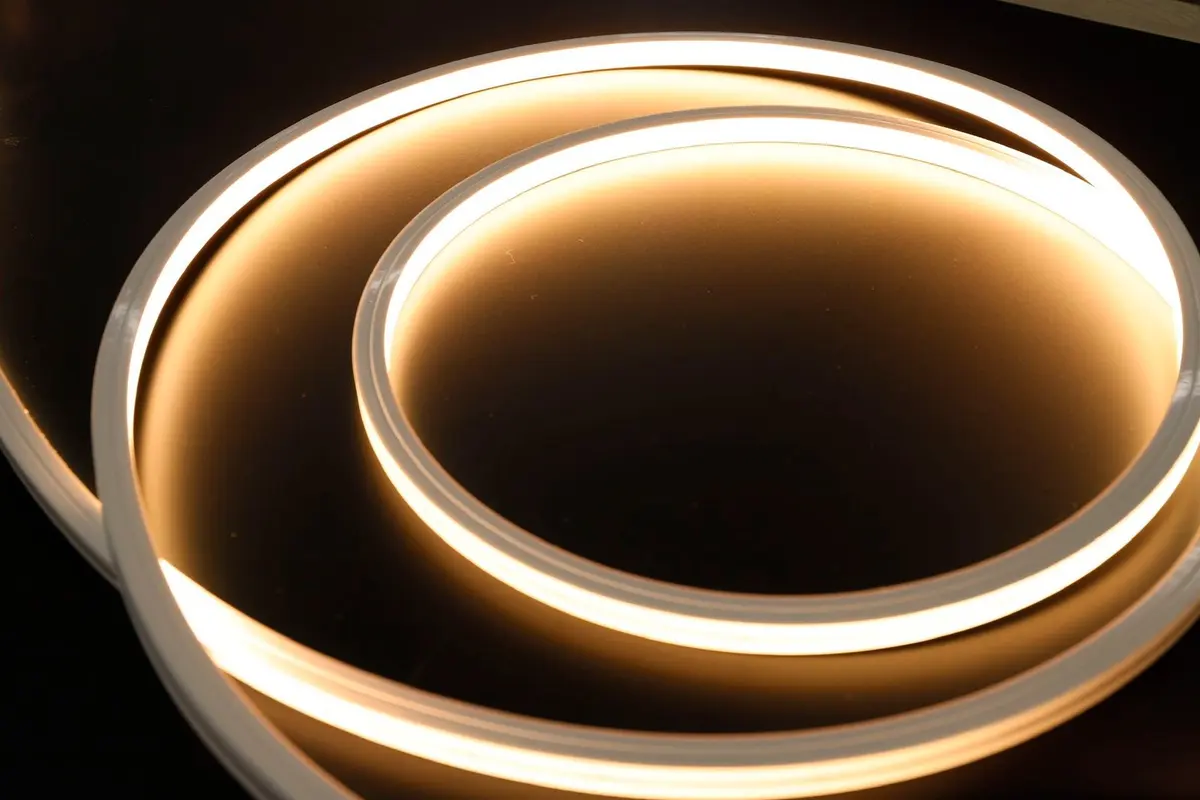

Top Bending Series — High Efficiency Neon Flex

Top Bending Series

Engineered for projects where the lighting line is primarily viewed from the front, demanding a direct, highly visible luminous surface. Includes high-performance vertical bending profiles (such as NCF-1010, NCF-1616, and NS-T1212H / NS-T1615H logic) designed to maximize forward-facing lumen output while maintaining absolute uniformity.

Bend Direction: Vertical / Top
Best Use Case: Direct-view outlines, straight facades
Run Length Logic: Up to 20m (Constant Current)
Surface Uniformity: Spot-free, high visibility
Model Codes: NCF-1010, NCF-1616

Request quote & datasheet

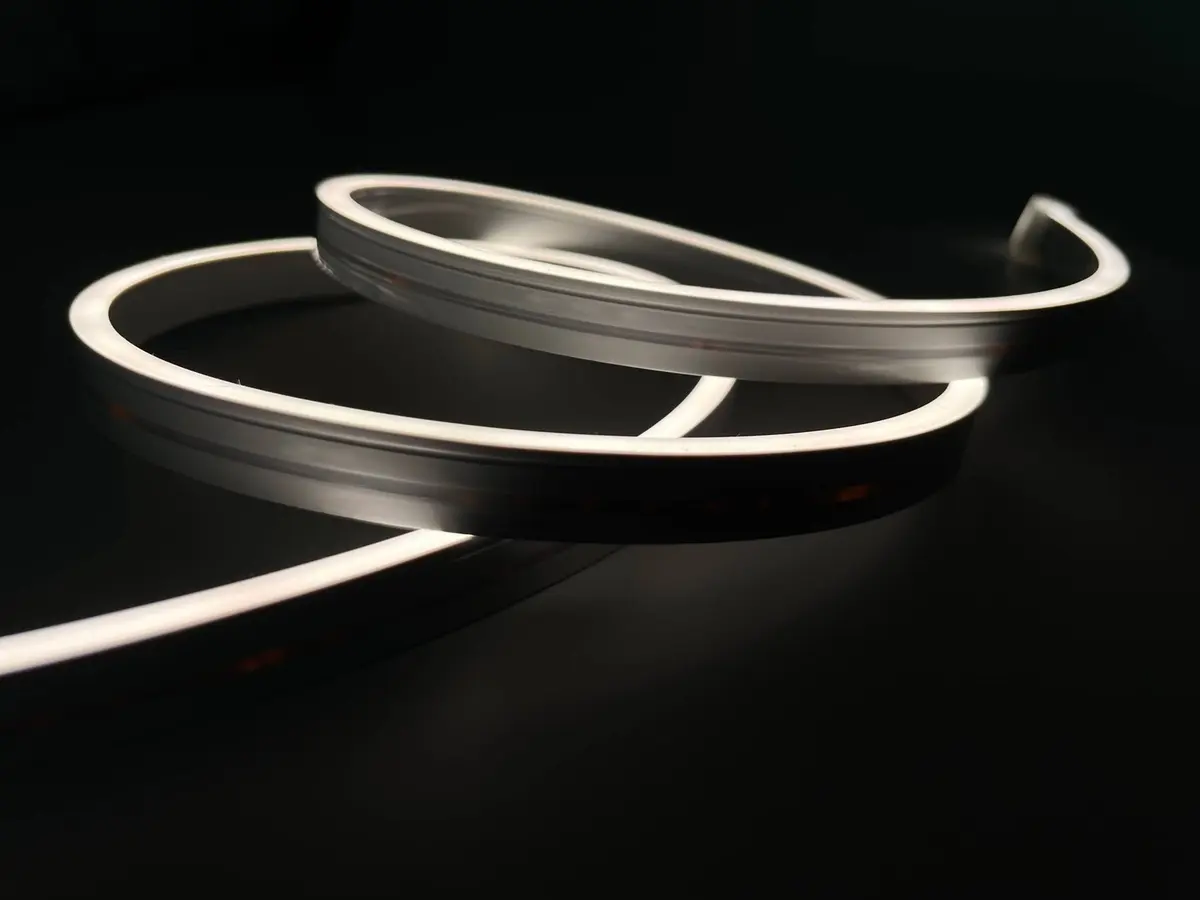

Side Bending Series — High Efficiency Neon Flex

Side Bending Series

The preferred choice for installation paths that follow lateral contours or require natural curving along horizontal planes. Representing horizontal bending logic (such as the NCS-1010 and NS-S1220H), it ensures the luminous surface remains perfectly oriented to the viewer even as the strip curves around architectural elements.

Bend Direction: Horizontal / Side
Best Use Case: Curved paths, lateral contours
Run Length Logic: Up to 20m (Constant Current)
Surface Uniformity: Smooth lateral diffusion
Model Codes: NCS-1010

Request quote & datasheet

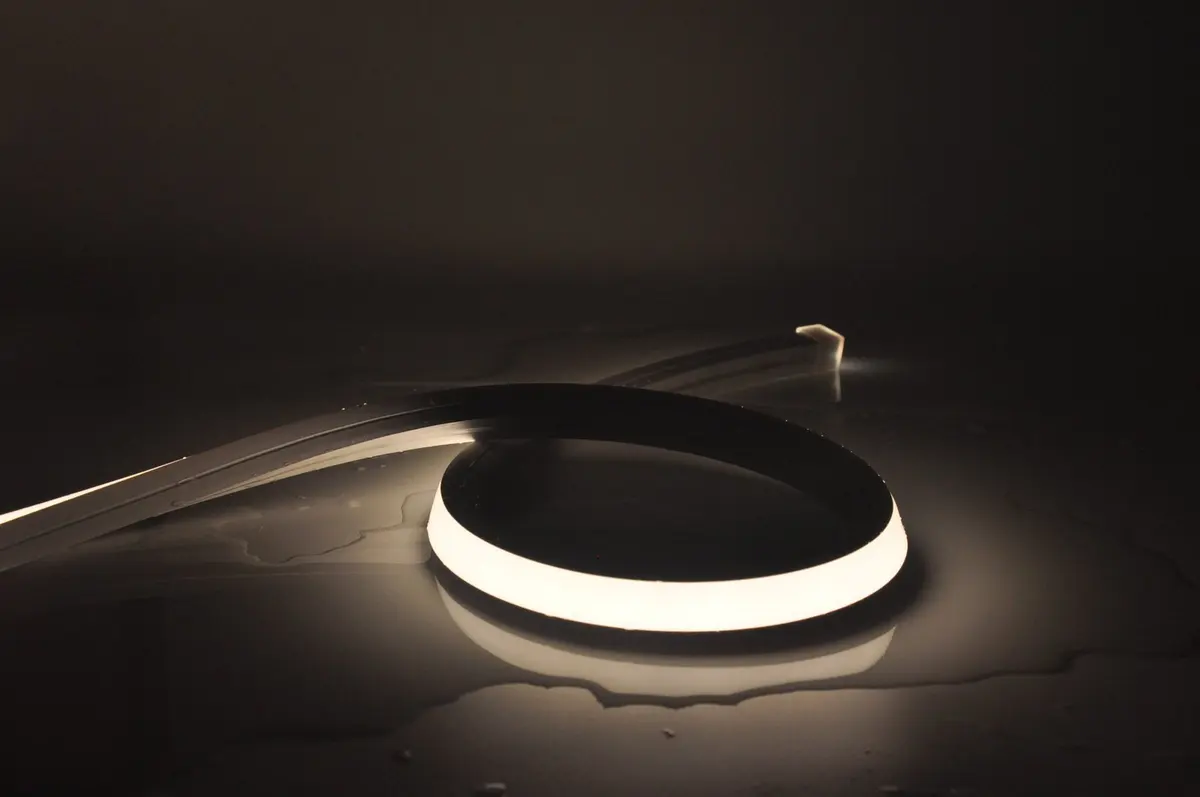

3D Bending Series — High Efficiency Neon Flex

3D Bending Series

Designed for complex installations that demand both planar shifts and spatial curves without breaking the continuous light line. Offers the freedom to twist and turn through three-dimensional space while maintaining high efficiency and structural integrity in demanding freeform architectural designs.

Bend Direction: Multi-directional
Best Use Case: Complex spatial curves, freeform
Run Length Logic: Optimized for stability
Surface Uniformity: Consistent across twists

Request quote & datasheet

Specifications

Quick Series Overview

Product Series	Bend Direction	Best Use Case	Run Length Logic	Surface Uniformity
Top Bending Series	Vertical / Top	Direct-view outlines, straight facades	Up to 20m (Constant Current)	Spot-free, high visibility
Side Bending Series	Horizontal / Side	Curved paths, lateral contours	Up to 20m (Constant Current)	Smooth lateral diffusion
3D Bending Series	Multi-directional	Complex spatial curves, freeform	Optimized for stability	Consistent across twists

Why specify High Efficiency Neon Flex

50%+ Higher Luminous Efficiency

Significantly brighter than conventional neon flex, making it viable as functional contour lighting rather than just decoration.

Constant Current Design

Internal circuitry actively manages current flow, ensuring identical brightness at the beginning and end of long runs.

24V Up to 20m No Voltage Drop

Dramatically reduces the need for multiple power supplies and complex wiring in large-scale installations.

Uniform Lighting, No Shadow

Advanced extrusion and optical diffusion ensure a perfectly continuous line of light with zero dark spots.

IP67 Outdoor Project Use

Fully sealed against dust and immersion, designed specifically for harsh exterior architectural environments.

High Chemical Resistance

Engineered materials provide robust resistance to UV degradation, salt solutions, acids, and alkalis.

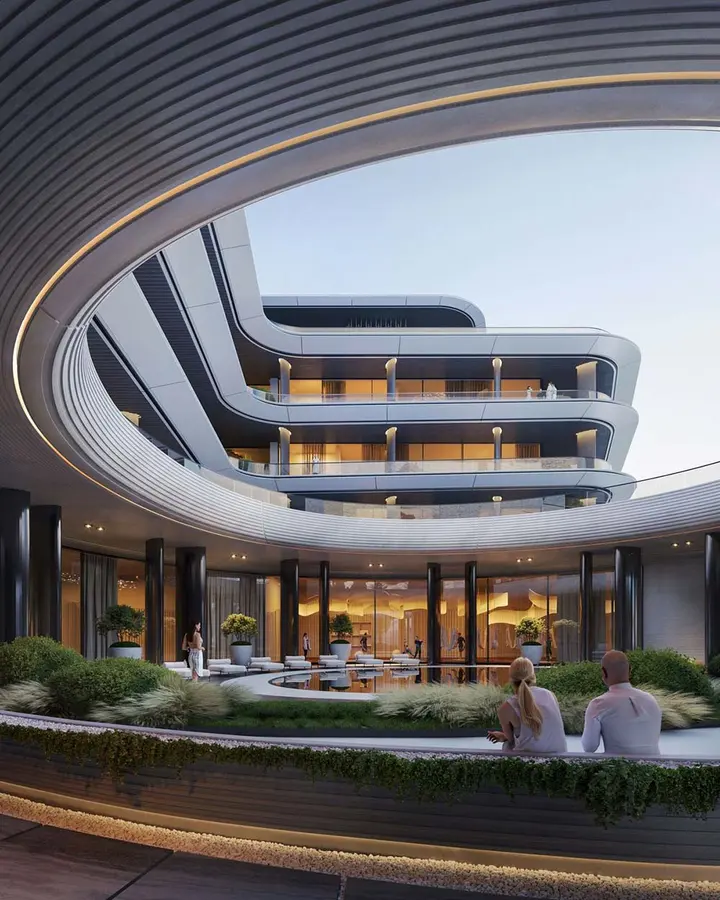

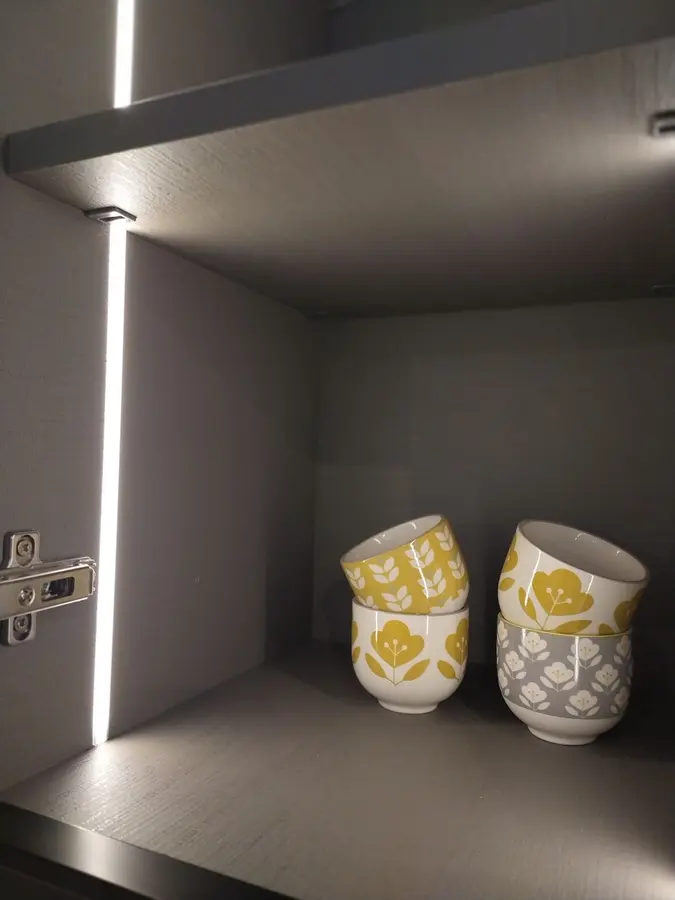

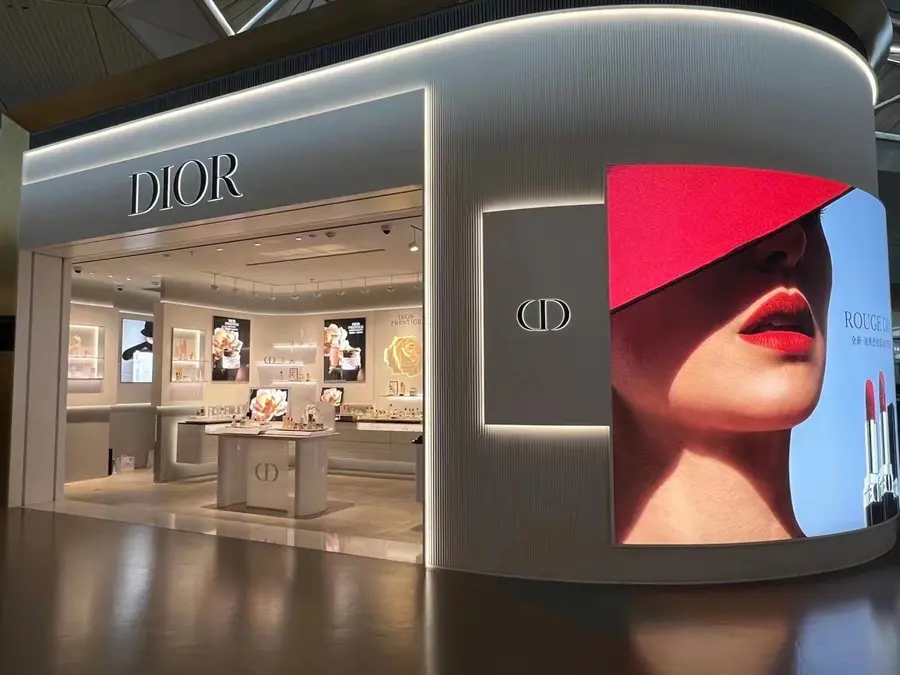

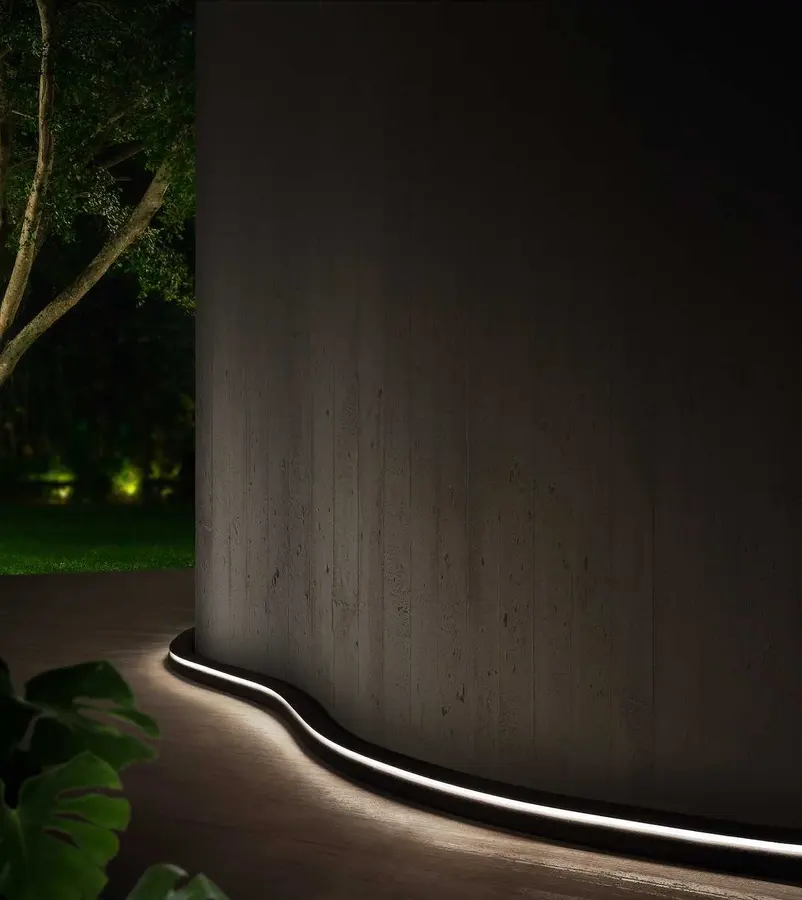

Applications

Questions

What is High Efficiency Neon Flex?

High Efficiency Neon Flex is a specialized linear lighting product that uses an advanced optical structure and high-efficacy LED strips to produce 50%+ more light output than standard neon flex. It is engineered for professional architectural projects requiring high visibility, uniform light surfaces, and long continuous run lengths.

When should buyers choose High Efficiency Neon Flex instead of standard neon?

Buyers should opt for the high efficiency series when the project involves long visible exterior runs (up to 20m), requires brighter facade outlines to compete with ambient light, demands absolutely spotless uniformity, or when minimizing power injection points is critical for installation feasibility.

What is the difference between Top Bending, Side Bending and 3D Bending?

Top Bending bends vertically and is best for straight lines viewed directly from the front. Side Bending bends horizontally, ideal for wrapping around lateral contours and corners. 3D Bending can bend in multiple directions simultaneously, providing maximum spatial flexibility for complex, freeform architectural designs.

Is High Efficiency Neon Flex brighter than standard neon flex?

Yes. By utilizing specialized high-efficiency LED strip light sources and optimized optical diffusion materials, it achieves a luminous efficiency that is typically 50% or more higher than conventional decorative neon flex.

Is it suitable for outdoor architectural projects?

Yes. It features an IP67 protection level and is manufactured with materials that offer high resistance to UV radiation, salt solutions, corrosive gases, acids, and alkalis, making it highly reliable for harsh outdoor environments.

Can High Efficiency Neon Flex be customized for OEM projects?

Yes. Extensive customization is supported for OEM and ODM buyers, including specific bend directions, cross-section sizes, voltage/run lengths, custom IP levels, and tailored packaging or labeling.

Need a custom high efficiency neon flex?

Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
