24V/36V/48V long-run, impact- and dust-sealed LED strip for tunnels, mining routes and industrial corridors.
Artcolor's Tunnel & Mining LED Strip is a heavy-duty, long-run lighting series engineered for tunnels, mining routes and industrial infrastructure. It emphasizes continuous linear light, long single-feed runs, impact resistance, sealed construction and quick industrial installation, available in 24V, 36V and 48V configurations to match different route lengths and voltage-drop requirements.

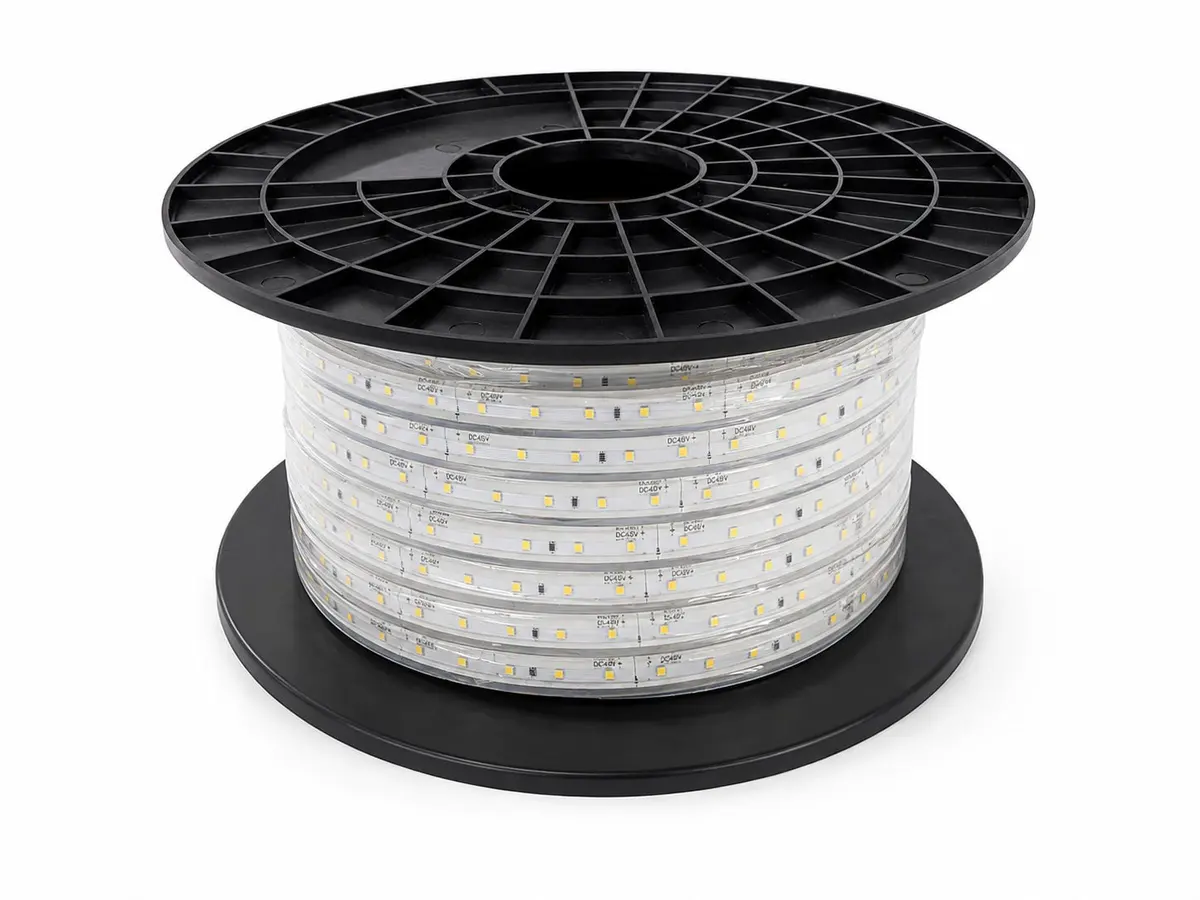

Optimized for compact industrial sections. Ideal for shorter industrial routes and compact wiring sections where ultra-long single-feed runs are not required, providing the same robust industrial construction within standard 24V system limits. Typically supports a run of about 20m before voltage drop becomes significant.

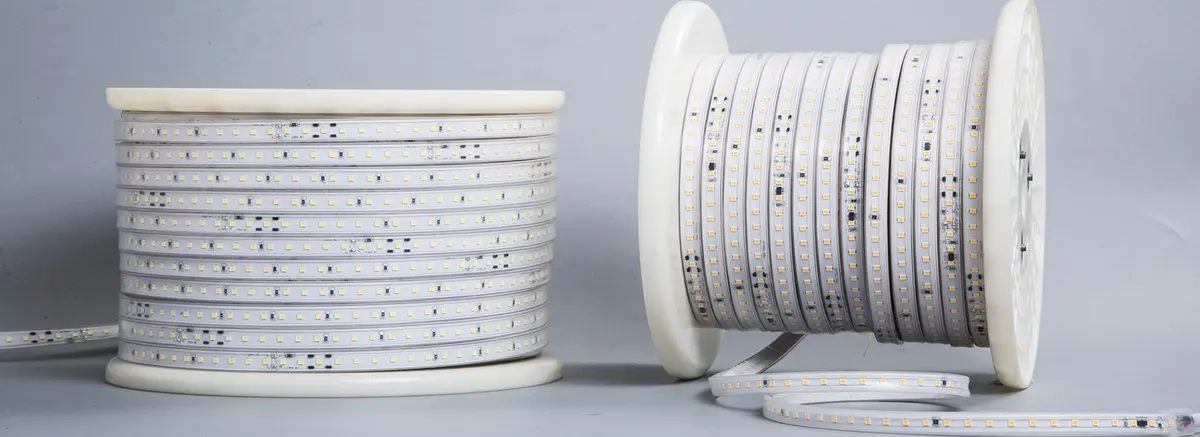

The balance between run length and system complexity. Engineered for medium-length industrial routes, serving as the middle ground when 24V run lengths become a bottleneck but the project doesn't demand a 48V system. Typically supports a run of about 30m with better voltage-drop control than standard strips.
Maximum distance. Designed for the longest routes where minimizing power feed points and maintaining absolute brightness consistency is critical. Achieves up to 150m on a single feed at 5 W/m, or 100m at 8 W/m, effectively minimizing perceptible voltage drop.
| Decision Factor | 24V Series | 36V Series | 48V Series |
|---|---|---|---|
| Starting Point | Existing 24V systems and routes divided into shorter powered sections. | Projects with compatible 36V drivers that need a balance between circuit current and connected-section length. | Projects considering 48V tunnel LED strip for longer powered sections or fewer feed locations, subject to model and circuit verification. |
| Current at the Same Delivered Power | Higher current than a comparable higher-voltage configuration. | May reduce current compared with a similar 24V configuration. | May further reduce current, but input-current and connector limits still apply. |
| Feed-Point Planning | Often selected when additional or shorter powered sections are acceptable. | May allow different feed-point spacing when supported by the selected model. | May support longer connected sections, but it does not eliminate feed-point planning. |
| Power Equipment | Confirm compatible 24V driver capacity, approvals and ambient-temperature rating. | Confirm availability and approval status of the required 36V power equipment. | Confirm compatible 48V driver, circuit protection and installation requirements. |
| Critical Verification | Model, W/m, feed method, cable loss and end-of-run result. | Model, W/m, conductor design, connector current and end-of-run result. | Model, total load, starting current, connector rating, protection device and end-of-run result. |
| Required Data | What Should Be Reported |
|---|---|
| Model and Configuration | Exact model, voltage, power per meter and production configuration |
| Tested Connected Length | Total length and length of each connected section |
| Feed Method | Single-end, dual-end or segmented feed |
| Input Data | Starting voltage, current and total input power |
| Conductor Path | PCB or bus-wire construction, feed cable and connection method |
| Connector Rating | Maximum rated voltage and current |
| End-of-Run Result | Measured voltage, power or light-output variation |
| Operating Condition | Ambient temperature, mounting method and test duration |
| Pass Criterion | The permitted end-of-run difference used to define the maximum length |
High-density configuration ensures a continuous, spot-free linear light essential for tunnel visibility.
Superior thermal management and flexibility, resisting degradation in harsh industrial temperatures.
Maximum protection against physical shocks, falling debris, and equipment impacts in mining zones.
Fully protected against dust ingress and low-pressure water jets from any direction.
Continuous silicone barrier and fully sealed construction resist corrosion, dust and moisture in harsh industrial routes.
Supplied in 20m pre-terminated reels with robust male/female connectors, avoiding field soldering and reducing labor time.
This product page does not by itself establish approval for hazardous, gassy or combustible-dust locations. Buyers must provide the applicable area classification, jurisdiction, gas or dust group and required standard so Artcolor can confirm whether a specifically approved model is available. General IP, IK, CE or RoHS documentation is not a substitute for hazardous-location approval.
Maximum connected length depends on the exact model, system voltage, power per meter, conductor resistance, feed method, connector rating, operating temperature and permitted end-of-run variation. A distance figure should be supported by defined input conditions and measured voltage, power or light-output results at the end of the run.
No. At the same delivered power, a 48V system may reduce circuit current compared with a lower-voltage configuration, but resistance still exists in conductors, cables, connectors and joints. Final performance must be verified using the complete circuit, feed topology, connected length and acceptable end-of-run result.
Compare the available power equipment, planned powered-section length, power per meter, circuit current, feed locations, conductor capacity, connector rating, cable loss, protection devices and end-of-run tolerance. The highest voltage is not automatically the best choice; it must match the project's electrical design and required documentation.
Only when those components and connections are included in the tested assembly. The IP rating of the LED strip body does not automatically apply to cable entries, connectors, field-cut ends or on-site joints. Buyers should confirm the tested configuration and use the specified connection and sealing procedure.
An IK rating describes the tested enclosure's resistance to defined external mechanical impacts under the applicable test method. It does not confirm resistance to every falling object, vehicle impact or mining-site event. Buyers should verify the tested model, enclosure construction, report reference and required project impact level.
Need a custom tunnel & mining led strip?
Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
