Flex LED Wall Washer

Lightweight, bendable TPU/PU-encased LED wall washer for outdoor facades and irregular architectural paths.

Artcolor's Flex LED Wall Washer is a bendable linear luminaire encased in TPU or PU, engineered for dynamic outdoor facade illumination where rigid wall washers become too heavy, too long, or too difficult to install seamlessly. It integrates advanced optical lenses directly into a soft, protective casing, delivering continuous, shadow-free lighting runs of up to 5 meters with professional wall-washing performance and a significantly lighter footprint.

View 1 product Request a quote

Series overview

Protection Level: IP67 Waterproof (PU/TPU Encased)
Voltage: 24VDC
Beam Angle Options: 30°, 45°, 60°, 20×45°, 10×60°
Maximum Continuous Run: Up to 5 meters
Min. Cut Length: 125mm (White) / 166.7mm (RGB/W/DMX)
Wall Washing Height: Up to 4 meters
Color / Control Options: Single Color, Tunable White, RGB, RGBW, DMX512
Support: OEM / Custom Length Support

Products

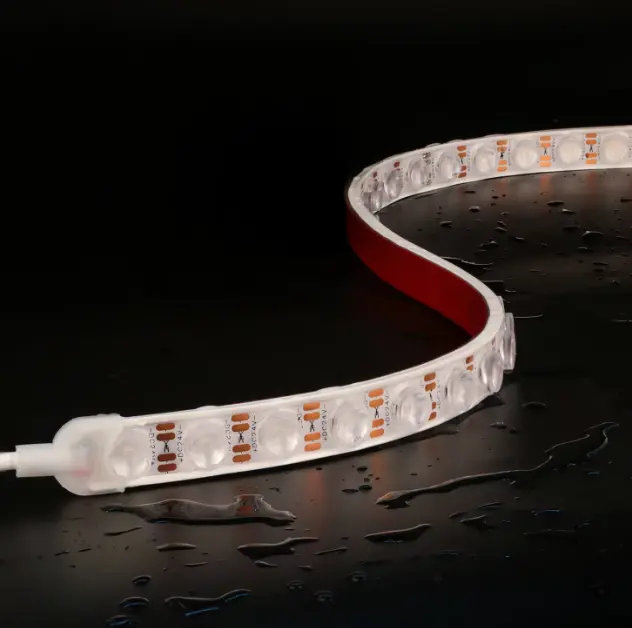

Flex LED Wall Washer — Flex LED Wall Washer

Flex LED Wall Washer

The flagship series, engineered for projects that demand professional wall washing effects without the limitations of rigid metal structures. Ideal for facades, landscapes, bridges, commercial exteriors, and complex installation paths where adaptability is key.

CRI: High CRI Ra>90 for white color
Efficacy: Up to 120 lm/W at 4000K
Warranty: 3 Years
Protection Level: IP67 Waterproof (PU/TPU Encased)
Voltage: 24VDC
Beam Angle Options: 30°, 45°, 60°, 20×45°, 10×60°
Maximum Continuous Run: Up to 5 meters
Min. Cut Length: 125mm (White) / 166.7mm (RGB/W/DMX)
Wall Washing Height: Up to 4 meters
Color / Control Options: Single Color, Tunable White, RGB, RGBW, DMX512

Request quote & datasheet

Specifications

Flexible vs Rigid Wall Washer Comparison

Aspect	Flex LED Wall Washer	Traditional Rigid Wall Washer
Installation	High flexibility, easily follows curves and irregular shapes.	Strictly linear, requires flat surfaces or complex bracket engineering for curves.
Shipping	Rollable packaging, lightweight, significantly lower shipping costs.	Long boxes (1m+), heavy metal housing, high freight and handling fees.
Customization	Cuttable in short increments (e.g., 125mm) for precise project fitting.	Fixed lengths (usually 0.5m or 1m), leaving dark spots if dimensions don't match.
Project Fit	Ideal for modern facades, landscapes, and retrofits without structural limits.	Standard choice for straight, long, heavy-duty applications.

Color & Control Options

Option	Detail
Single Color	2700K – 6500K
Tunable White	Dynamic CCT / 2700-6500K
RGB	Color changing
RGBW	RGB + Pure White
RGB DMX512	Pixel-level programming control

Why specify Flex LED Wall Washer

Seamless Architectural Integration

Replaces heavy extruded aluminum with a lightweight, TPU/PU-encased optical solution capable of following curved surfaces and complex edges.

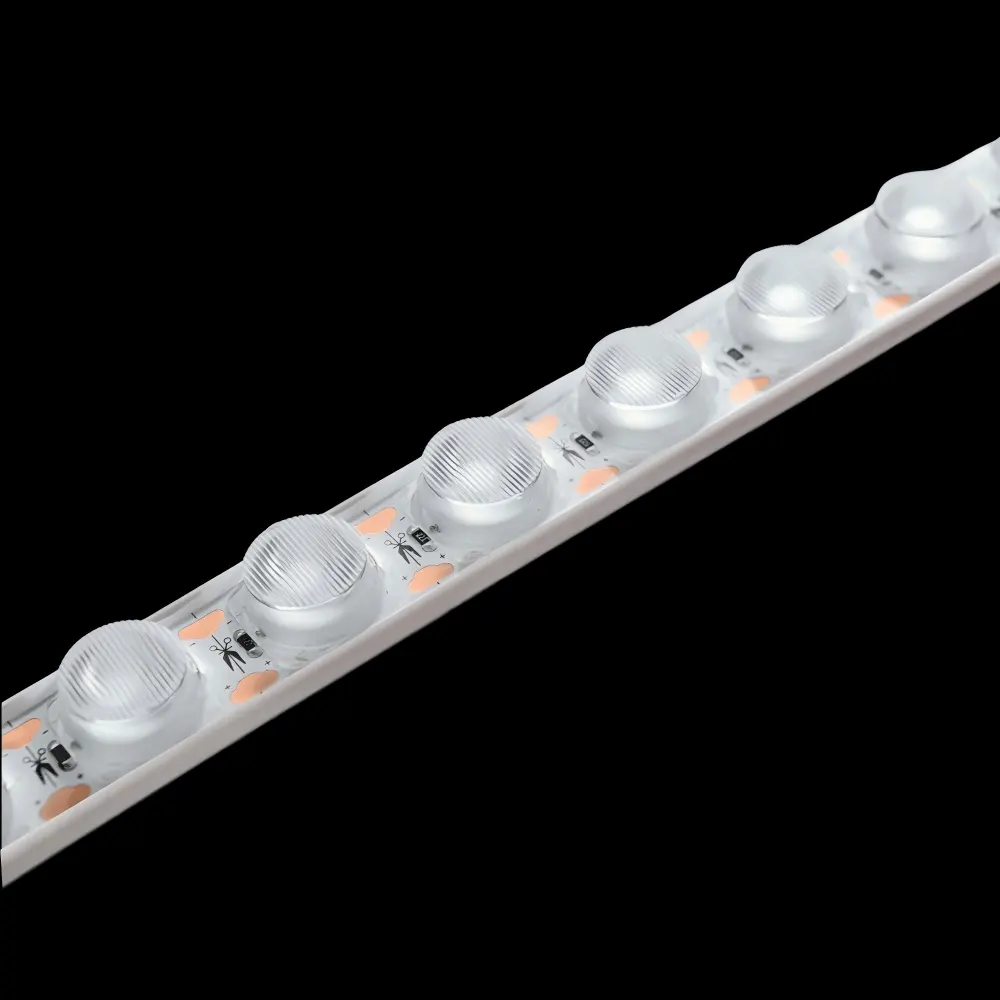

Precision Optical Design

Integrates advanced optical lenses directly into a soft, protective TPU/PU casing, delivering high-performance outdoor wall washing with a significantly lighter footprint.

Continuous 5M Lighting Runs

Provides unparalleled installation freedom, achieving continuous, shadow-free lighting runs of up to 5 meters.

Reduces Transport Costs

Lighter and rollable, making it significantly easier and cheaper to transport than 1m rigid metal bars.

Outdoor Ready (IP67)

Fully encased in UV-resistant PU/TPU, making it highly reliable for outdoor facade and landscape projects.

Optical Flexibility

Offers multiple beam angles and control choices without changing the physical footprint.

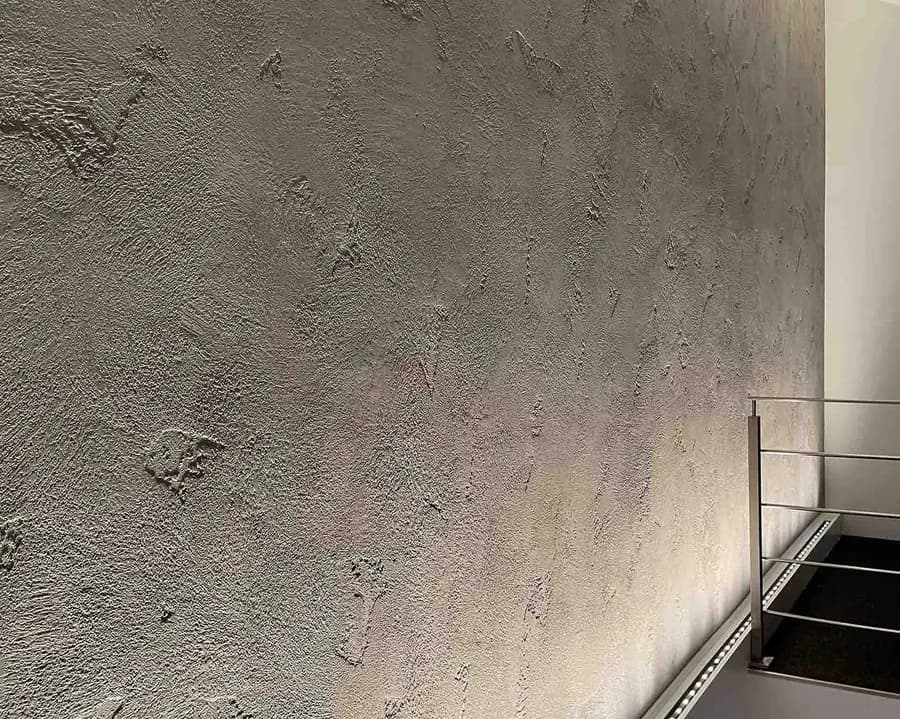

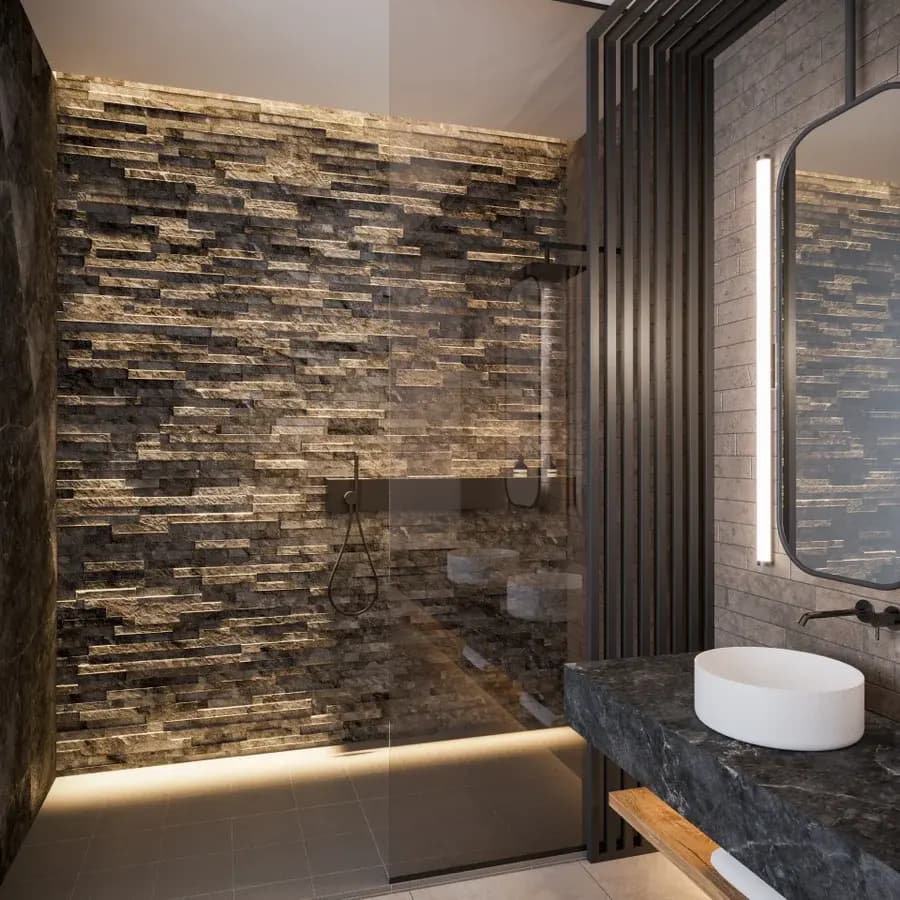

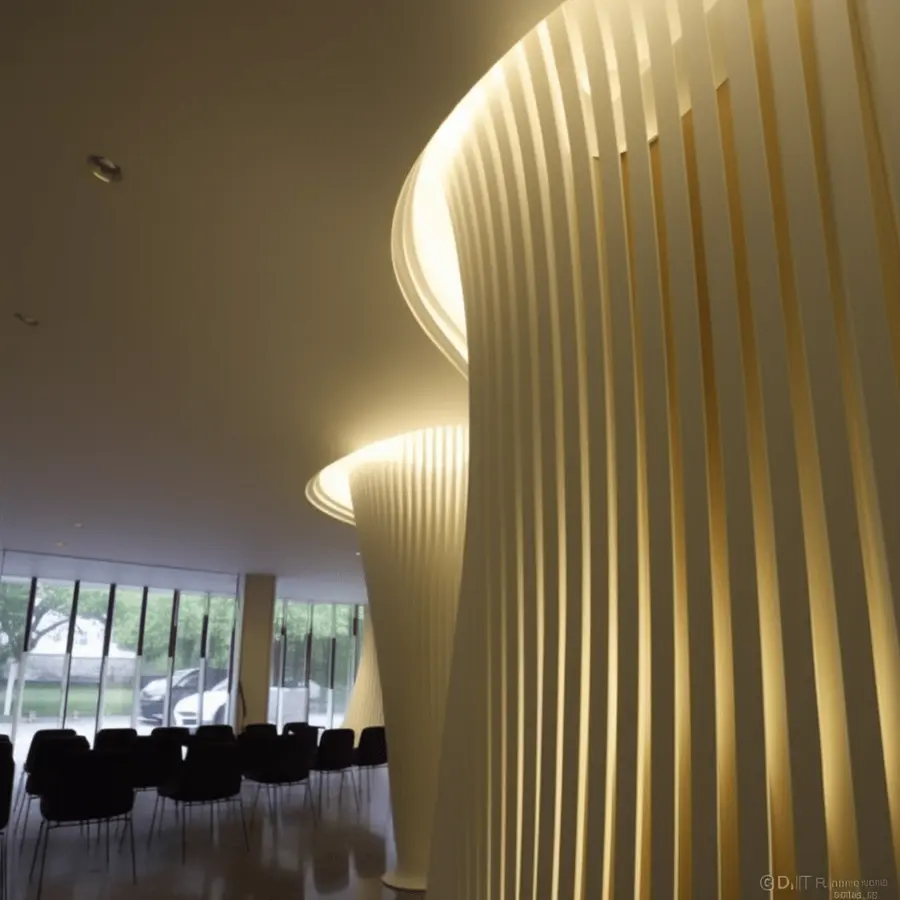

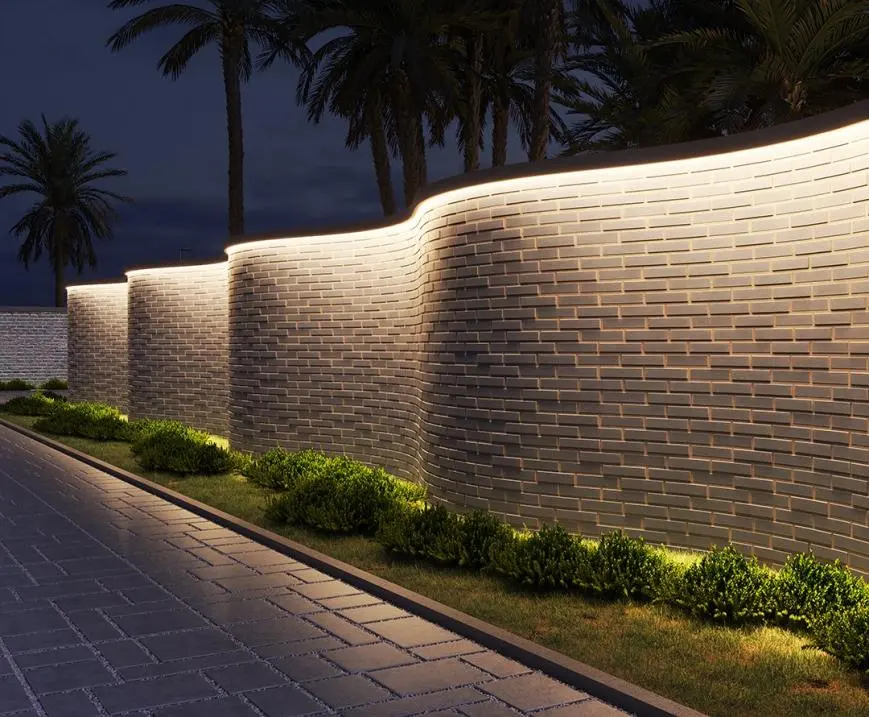

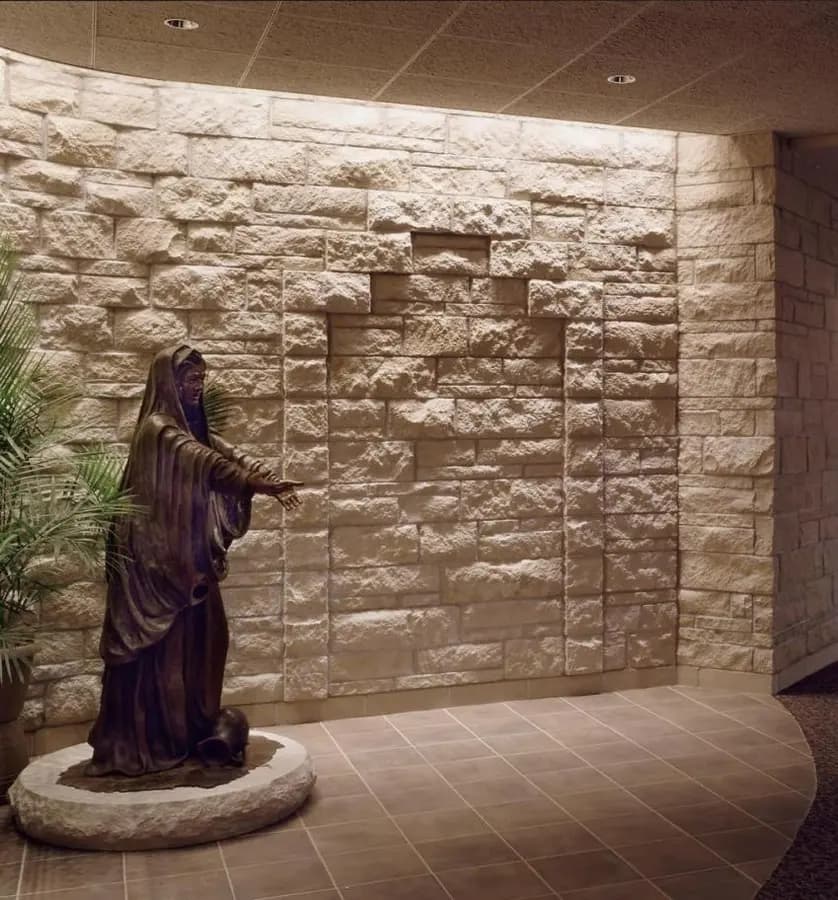

Applications

Questions

What is Flex LED Wall Washer?

A Flex LED Wall Washer is a bendable, linear luminaire encased in TPU or PU. It is designed specifically for outdoor wall washing and facade lighting, offering the professional optical effects of a rigid fixture but with the flexibility to bend around curves and irregular architectural paths.

How is it different from rigid wall washer?

Unlike rigid wall washers that use heavy, fixed-length aluminum housings, flexible wall washers can adapt to curved surfaces. They are significantly lighter, cheaper to transport (due to rollable packaging), and can be cut to custom lengths, making them much easier to fit into complex project constraints.

Can it be used for outdoor projects?

Yes. The IP67 Flexible Wall Washer is fully encased in UV-resistant and anti-corrosion silicone/PU/TPU materials, making it highly reliable for outdoor use, including building facades, bridges, and landscape environments.

Which beam angle should buyers choose?

The best beam angle depends on the wall height and desired effect. Use 30° for taller, focused washing; 45° or 60° for broader, softer coverage on standard facades; and asymmetrical angles for specific directional lighting close to the surface.

What control options are available?

Depending on project needs, buyers can specify Single Color (2700K-6000K), Tunable White, RGB, RGBW, or RGB DMX512. DMX512 is recommended when pixel-level control and complex dynamic lighting shows are required.

Can Flex LED Wall Washer be customized for OEM projects?

Yes, OEM/ODM requirements are supported including custom lengths, specific color temperatures, tailored optical lenses, and custom packaging to meet unique project specifications.

Need a custom flex led wall washer?

Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.

Request a quote

More Flex Wall Washer

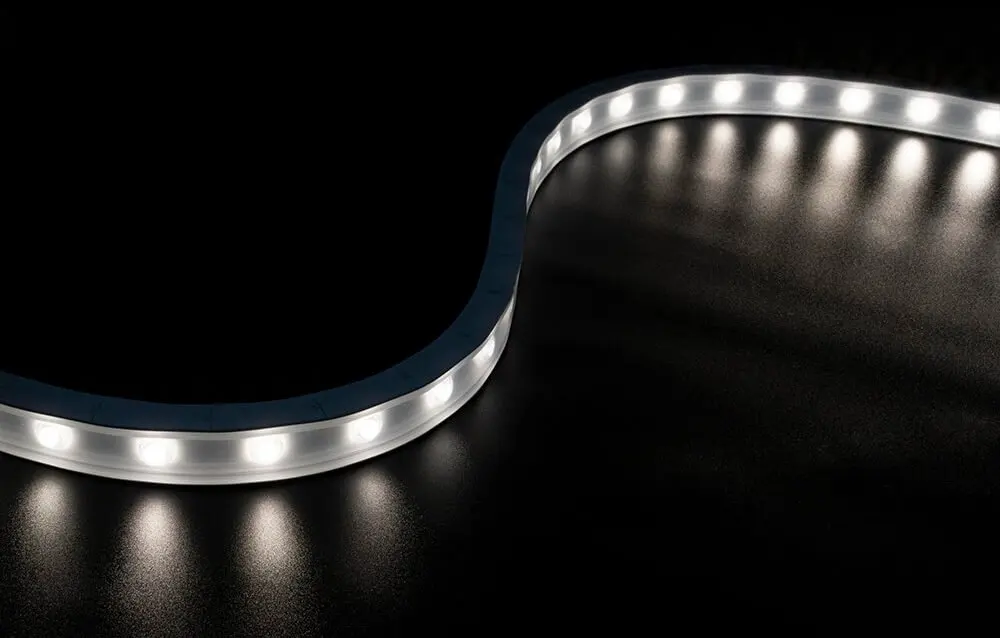

3D Bending Flex Wall Washer
