Side Emitting LED Strip

Shaped diodes that shine sideways for glare-free signage, edge, and contour lighting.

Side emitting (side-view) LED strips use diodes mounted to emit light laterally instead of upward, creating a precise, glare-free luminous edge. They are the industry-standard linear lighting solution for signage lettering, edge highlighting, and architectural contour work, available from single color through COB in a range of densities and waterproof ratings.

View 4 products Request a quote

Series overview

Emitting Direction: Side-View Light Output
Product Types: Single Color / RGB / RGB-SPI / COB
LED Density: 60 / 84 / 120 / 156 LEDs/m
PCB Width: 8mm / 10mm
Waterproof Options: IP20 / IP65 / IP67
Warranty: 5 Years Warranty
Custom Support: Full OEM / ODM Capabilities

Products

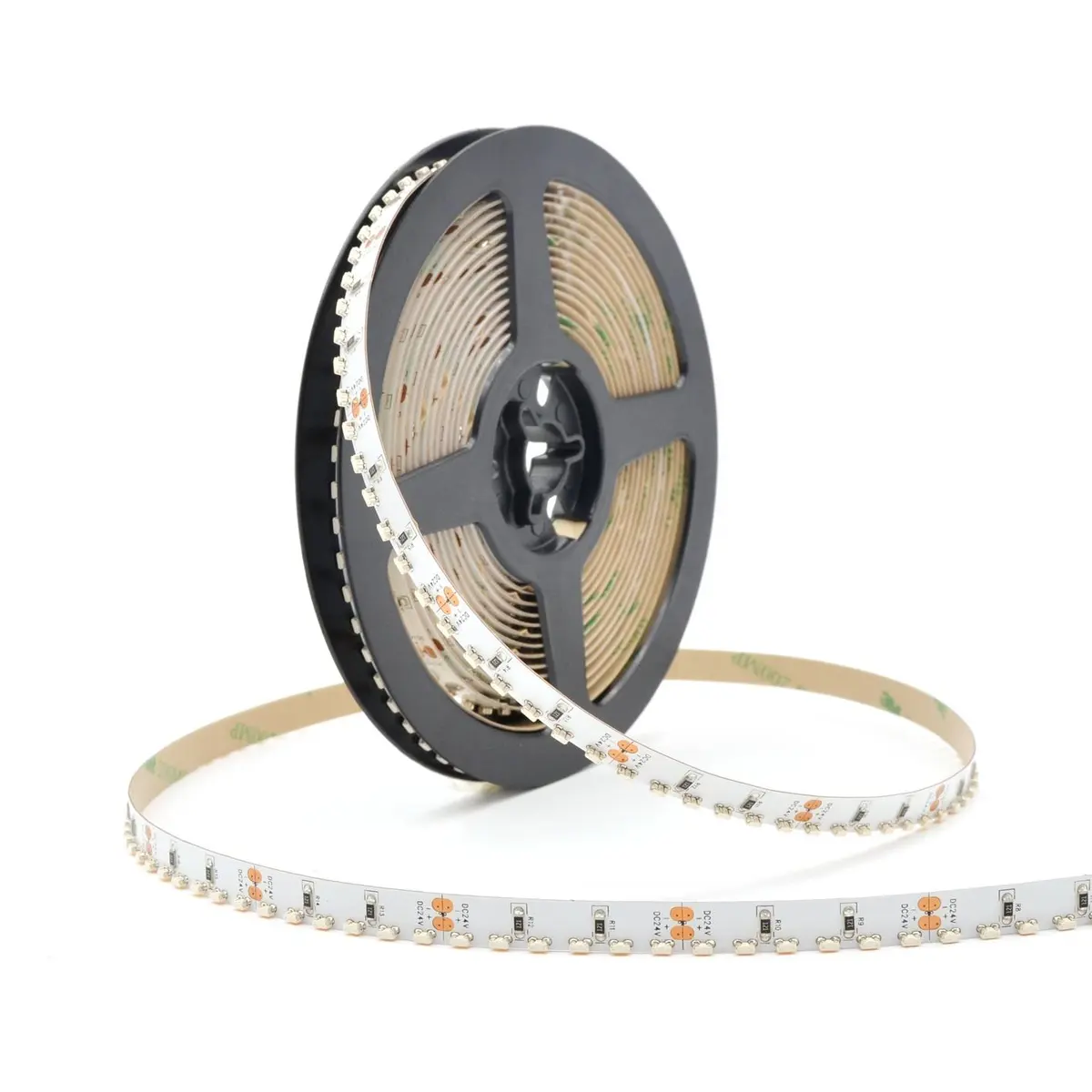

Single Color Side Emitting LED Strip

Featuring SMD3014 diodes engineered for lateral light emission. This single-color series is the industry standard for signage, edge, and contour lighting. Available in multiple densities (60 / 84 / 120 / 156 LEDs/m) and PCB widths (8mm / 10mm) to precisely match your brightness requirements. Choose from IP20, IP65, or IP67 ratings for versatile indoor or outdoor deployment.

Diode: SMD3014
LED Density: 60 / 84 / 120 / 156 LEDs/m
PCB Width: 8mm / 10mm
Waterproof: IP20 / IP65 / IP67

Request quote & datasheet

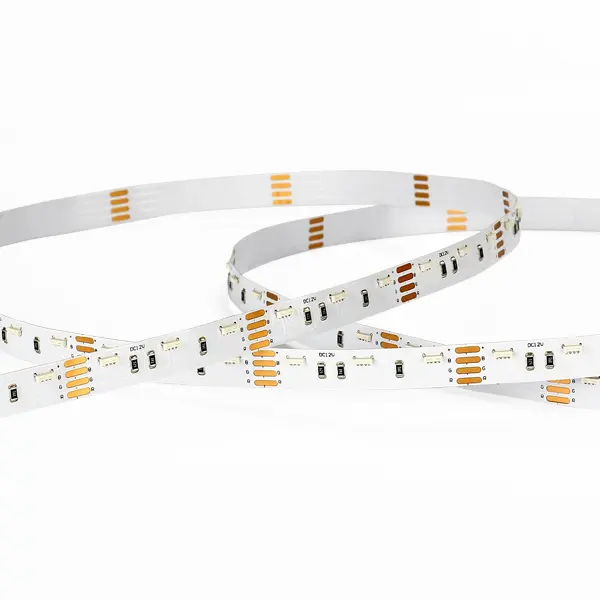

RGB Side Emitting LED Strip

Utilizing SMD020 side emitting diodes, this RGB color-changing LED strip delivers dynamic, vibrant lateral illumination. Perfectly suited for advertising displays and colorful outline expressions where standard top-emitting RGB strips cannot achieve the desired edge effect. Seamlessly integrates with standard RGB controllers for complete color management.

Diode: SMD020

Request quote & datasheet

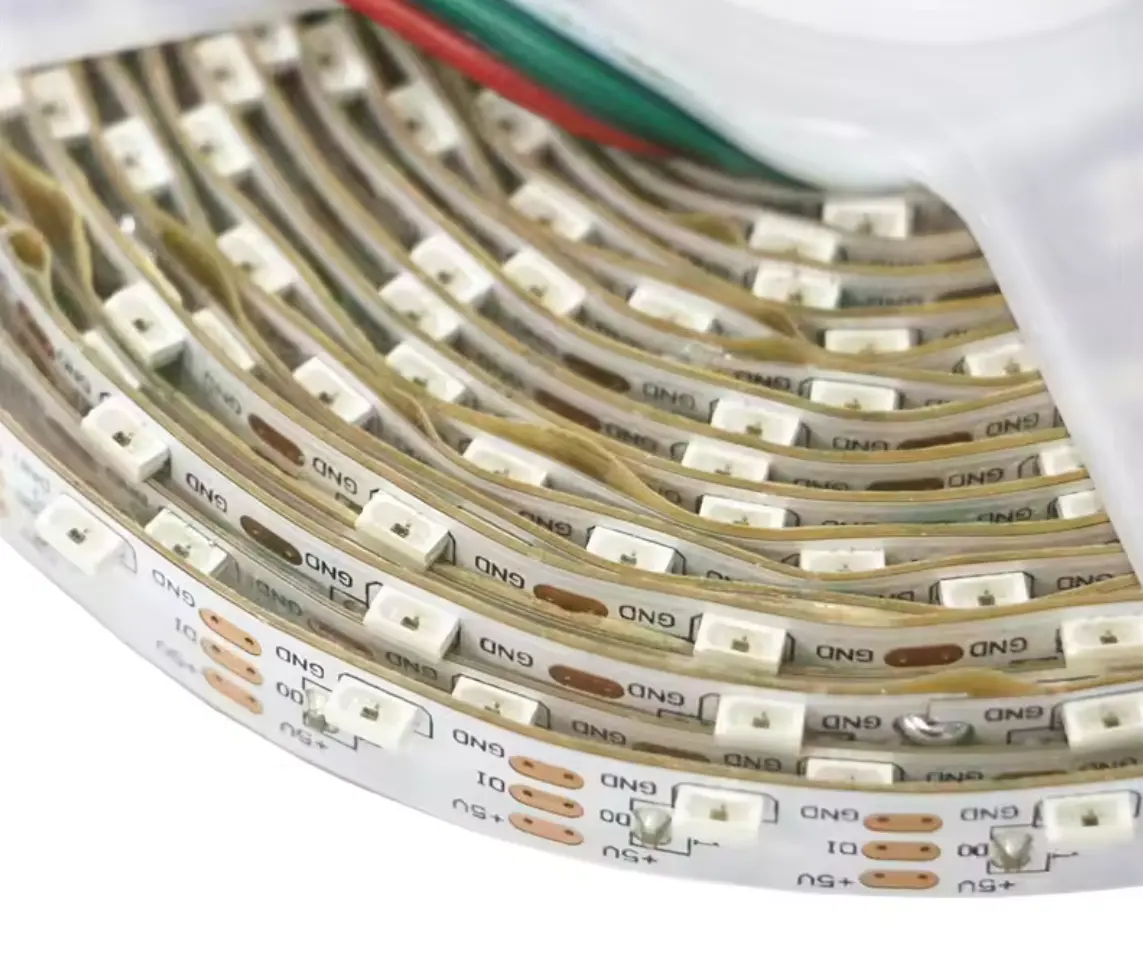

RGB SPI Side Emitting LED Strip

Combining SMD3014 and SMD020 technologies, this series offers an RGB-SPI side emitting LED strip featuring an independent white diode alongside RGB capabilities. This structure is ideal for premium signage and detailed edge projects that demand vibrant colors and pure, dedicated white light, free from color mixing artifacts.

Diode: SMD3014 + SMD020

Request quote & datasheet

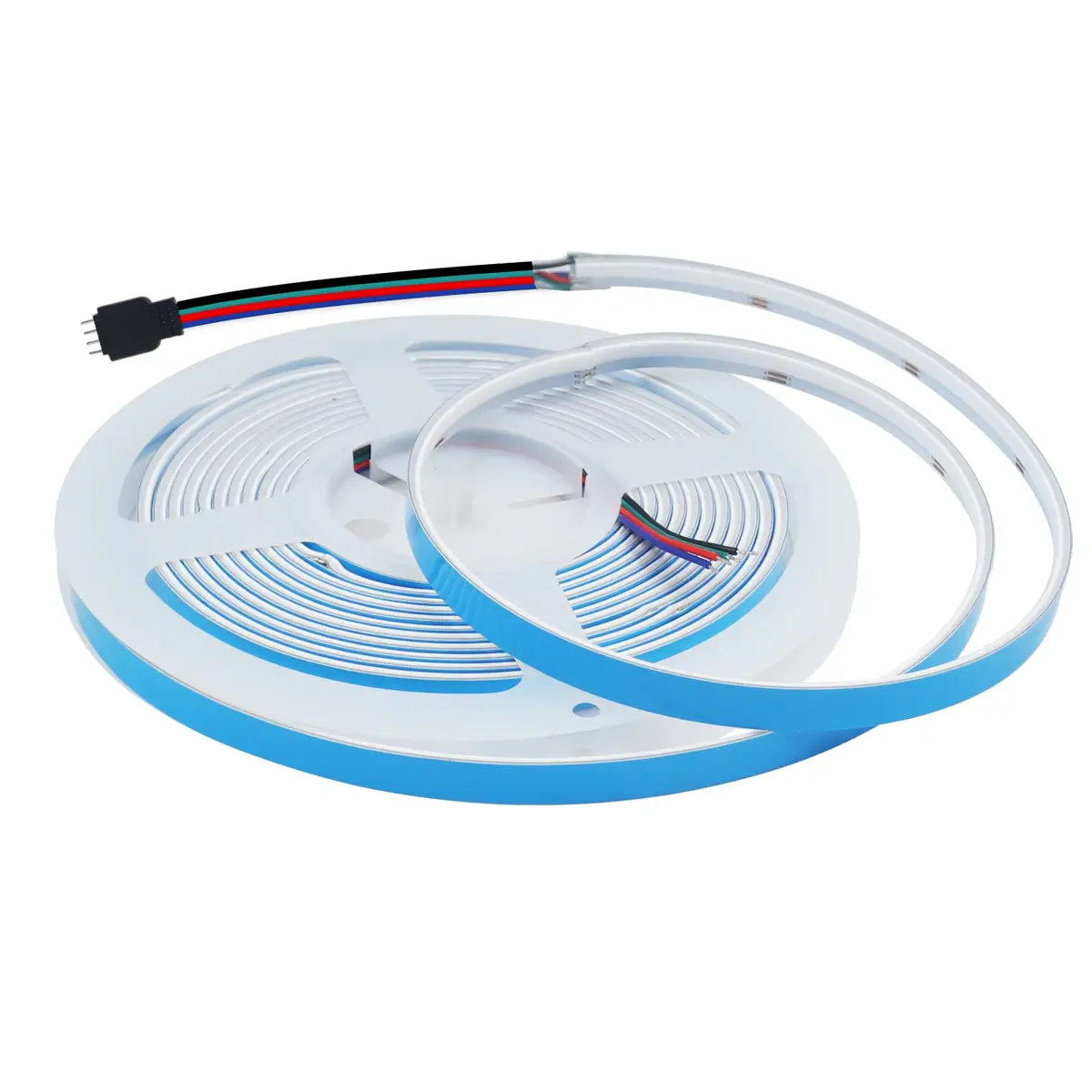

COB Side Emitting LED Strip

The pinnacle of lateral linear lighting. This COB (Chip on Board) side emitting LED strip delivers a completely dotless, continuous luminous boundary with zero hot spots. Designed for premium architectural edge lighting and highly visible light band projects where absolute light uniformity is non-negotiable.

Type: COB (Chip on Board)

Request quote & datasheet

Why specify Side Emitting LED Strip

Side-Facing Light Output

Specialized diode orientation directs 100% of the light laterally for precise edge illumination.

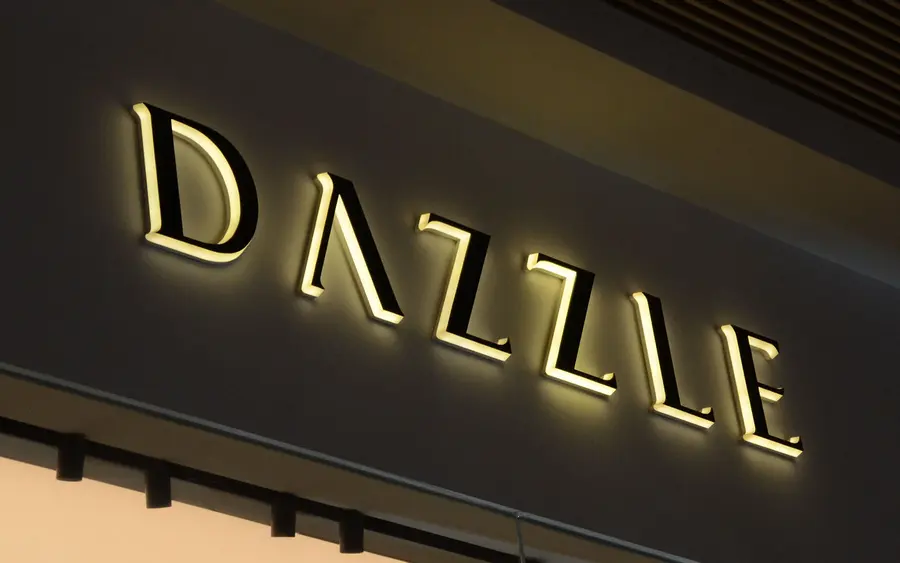

Better for Signage Lettering

Easily navigates tight curves and complex channel letter structures without light loss.

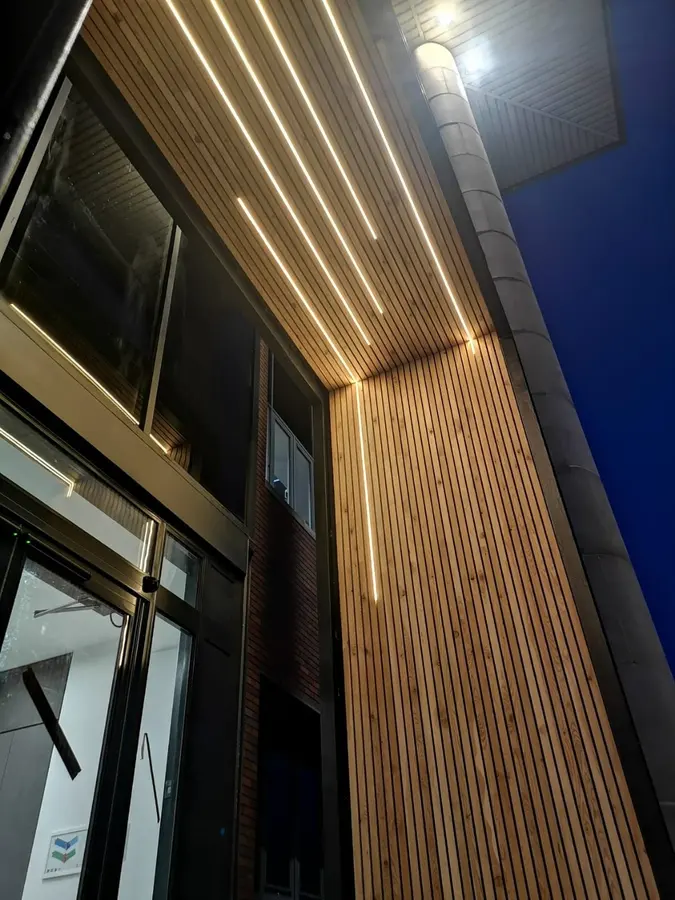

Ideal for Edge Highlighting

Creates clean, continuous luminous borders for glass, acrylic, and architectural features.

Single Color to RGBW Coverage

Comprehensive spectrum options from static white to dynamic color-changing capabilities.

Waterproof Options Available

IP65 and IP67 ratings utilizing advanced extrusion technology for outdoor durability.

OEM / ODM Flexibility

Custom PCB widths, LED densities, and cut lengths designed for specific project requirements.

Applications

Questions

What is a side emitting led strip?

A side emitting LED strip features diodes that are mounted to shine light sideways (parallel to the PCB) instead of upwards. This creates a distinct lateral light beam, making it perfect for edge lighting.

What are the side emitting led strip lights used for?

They are primarily used for advertising logo lighting, signage lettering, outline objects, edge highlighting for glass or acrylic, and architectural contour lighting where a visible edge of light is desired.

What is the warranty of side emitting led strips?

We provide a standard 5 years warranty for our professional-grade side emitting LED strip series, ensuring long-term reliability for your projects.

What are the waterproof types for side emitting led strip lights?

We offer IP20 (non-waterproof) for indoor use, IP65 (silicone tube/coating) for damp locations, and IP67 (silicone extrusion) for outdoor and wet environments.

Can you offer free samples for side view led strip lights?

Yes, we can provide free samples for testing and evaluation. Customers are only required to cover the shipping costs.

Need a custom side emitting led strip?

Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
