SMD1808 - 2mm Width Single Color
Ultra narrow single color LED strip for display cases, mirror backlighting, and internal product cavities where standard strips cannot fit.
- LED Package
- SMD1808
- PCB Width
- 2mm
Ultra Narrow LED Strip
Ultra-slim 2.8mm-5mm PCB LED strips for restricted spaces, product backlighting and cabinet illumination.
Ultra Narrow LED Strips, also known as ultra thin, ultra slim, or nano LED strips, feature exceptionally narrow PCB widths of typically 2mm, 3mm, 4mm or 5mm. They are engineered for environments where standard LED strips cannot fit, such as mirror backlighting, product casings, display cabinets and architectural reveals. Because the PCB is so narrow, these strips require installation within an aluminum profile or onto a heat-dissipating surface to ensure optimal thermal management and lifespan.
Series overview
- PCB Width
- 2.8mm / 3mm / 4mm / 5mm
- LED Types
- SMD2216, 2835, COB
- Voltage
- 24V DC
- Color Types
- Single, Tunable White, RGB
- Lifespan
- 50,000 Hours
- Warranty
- 5 Years
- Installation Note
- Aluminum profile / heat sink strongly recommended
Single Color Ultra Narrow
Engineered for extreme compactness, offered in 2mm, 3mm, 4mm, and 5mm widths using high-density SMD1808, SMD2216, SMD2835, or COB platforms for display cases, mirror backlighting, and internal product cavities.
SMD2216 - 3mm Width Single Color
Ultra narrow single color LED strip for compact display and cabinetry applications.
- LED Package
- SMD2216
- PCB Width
- 3mm

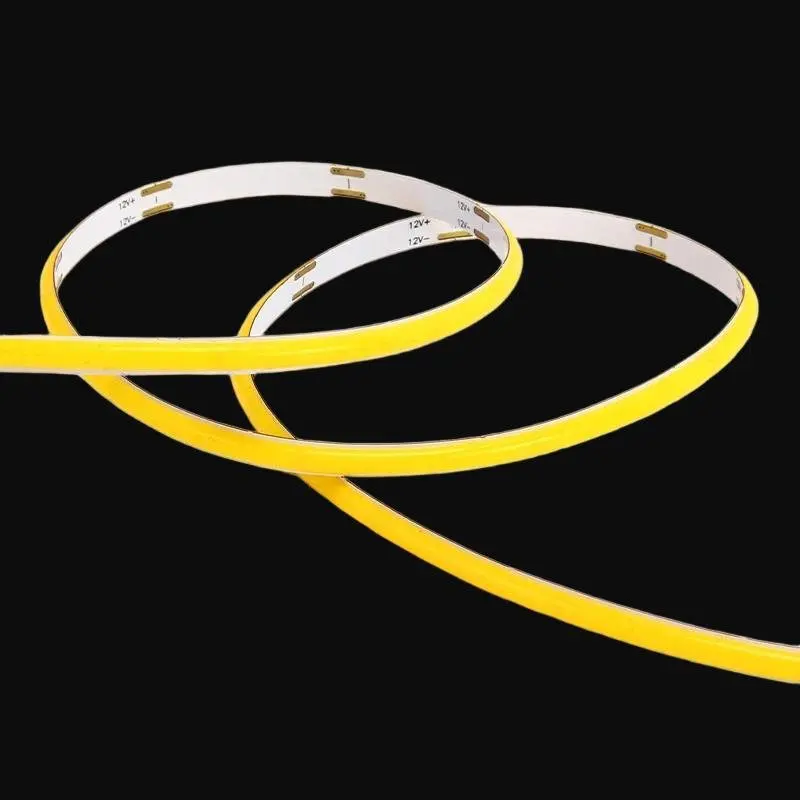

COB - 2.8mm Width Single Color
Ultra narrow, high-density COB single color strip delivering seamless, bright illumination in the thinnest available width.
- LED Package
- COB
- PCB Width
- 2.8mm
SMD2835 - 5mm Width Single Color
Ultra narrow single color LED strip using high-density SMD2835 for display cases and internal product cavities.
- LED Package
- SMD2835
- PCB Width
- 5mm
Tunable White Ultra Narrow
Combines an ultra narrow profile with adjustable color temperature capabilities, allowing dynamic lighting shifts from warm to cool white within tightly constrained spaces.

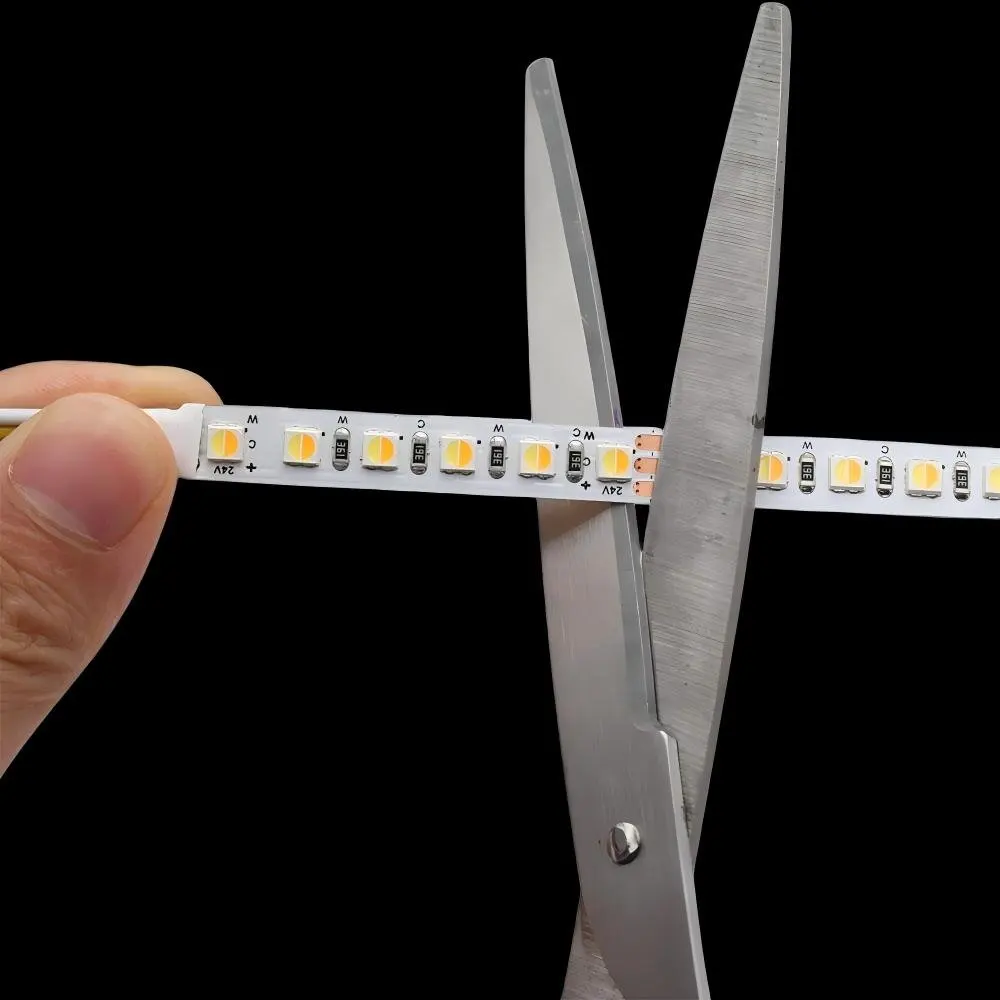

SMD2835-120 CCT - 5mm Width (24V)
Ultra narrow tunable white strip with SMD1808/SMD2835 density up to 240 LEDs/m, allowing dynamic lighting shifts from warm to cool white in tightly constrained spaces.
- LED Package
- SMD2835, up to 240 LEDs/m
- PCB Width
- 5mm
- Voltage
- 24V
- Color Type
- Tunable White (CCT)
COB CCT - 5mm Width (24V)
Ultra narrow COB tunable white strip ideal for high-end cabinetry and atmospheric architectural details.
- LED Package
- COB
- PCB Width
- 5mm
- Voltage
- 24V
- Color Type
- Tunable White (CCT)
Narrow RGB Series
Brings color-changing capability to limited spaces on a compact 5mm PCB, for internal product illumination, narrow signage profiles, and detailed display accents.

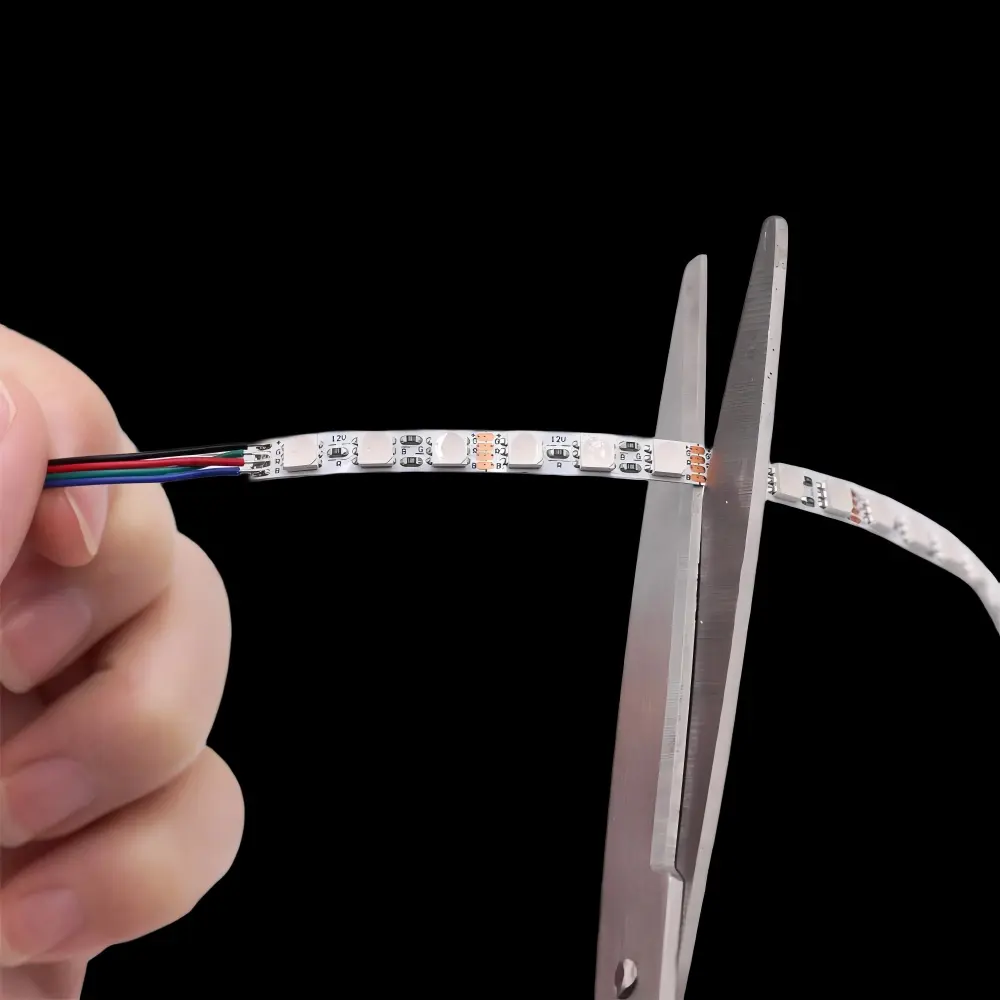

SMD3535-120LED RGB - 5mm Width (24V)
Ultra narrow RGB strip on a compact 5mm PCB, providing color expression for internal product illumination, narrow signage profiles, and detailed display accents.
- LED Package
- SMD3535, 120 LEDs/m
- PCB Width
- 5mm
- Voltage
- 24V
- Color Type
- RGB
Specifications
IP Protection Options
| IP Rating | Construction | Description |
|---|---|---|
| IP20 | Bare PCB board with exposed LED chips | Thinnest profile, ideal for dry indoor environments like aluminum profiles or enclosed cabinets |
| IP54 | Nano coating applied directly to the surface | Protects against basic moisture and dust without adding noticeable bulk |
| IP65H | Heat-shrink tube encapsulation | Thin, tight protective sleeve offering water resistance for damp indoor areas |
| IP65 | Silicone drip coating | Clear silicone layer protecting components against splashes and dust ingress |
| IP67 | Silicone tube casing | Fully encased in a hollow silicone tube for excellent waterproof capability outdoors |
| IP67E | Solid extrusion | Co-extruded solid silicone body, highly durable, UV resistant, sealed against heavy water exposure |
| IP68 | PU potting | Fully encapsulated in polyurethane resin for permanent underwater submersion |
Why specify Ultra Narrow LED Strip
Ultra Slim PCB Width
Available in 2mm to 5mm widths, pushing the boundaries of miniaturized lighting.
Compact Space Design
Tailored for integration where standard 8mm or 10mm strips fail to fit.
Display & Cabinet Fit
Provides seamless, invisible illumination for high-end retail and cabinetry.
Mirror & Product Backlighting
Eliminates dark spots and shadows in tight mirror assemblies and device casings.
Flexible Color Options
Available in Single Color, Tunable White, and RGB to suit any project requirement.
OEM / ODM Flexibility
Full engineering support to adapt PCB layouts and specifications for your brand.
Applications
Questions
What width options are available for ultra narrow LED strip?
Production is offered for 2mm, 3mm, 4mm, and 5mm widths, utilizing various LED packages like SMD1808, 2216, 2835, and COB technologies depending on the required width and brightness.
Do ultra narrow strips need aluminum profile for heat dissipation?
Yes, absolutely. Because the PCB is incredibly narrow, the surface area for passive cooling is drastically reduced. Mounting on an aluminum profile or a metal heat sink is mandatory to prevent overheating and ensure the 50,000-hour lifespan.
Do you support single color, tunable white and RGB?
Yes, the ultra narrow series encompasses Single Color (2mm-5mm), Tunable White CCT (typically 5mm), and RGB (5mm) configurations to meet diverse architectural and product design needs.
Can you support OEM labels and packaging?
Yes. Comprehensive OEM services are available, including custom reel labels, bespoke anti-static bag designs, and custom outer carton printing for bulk orders.
Need a custom ultra narrow led strip?
Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
