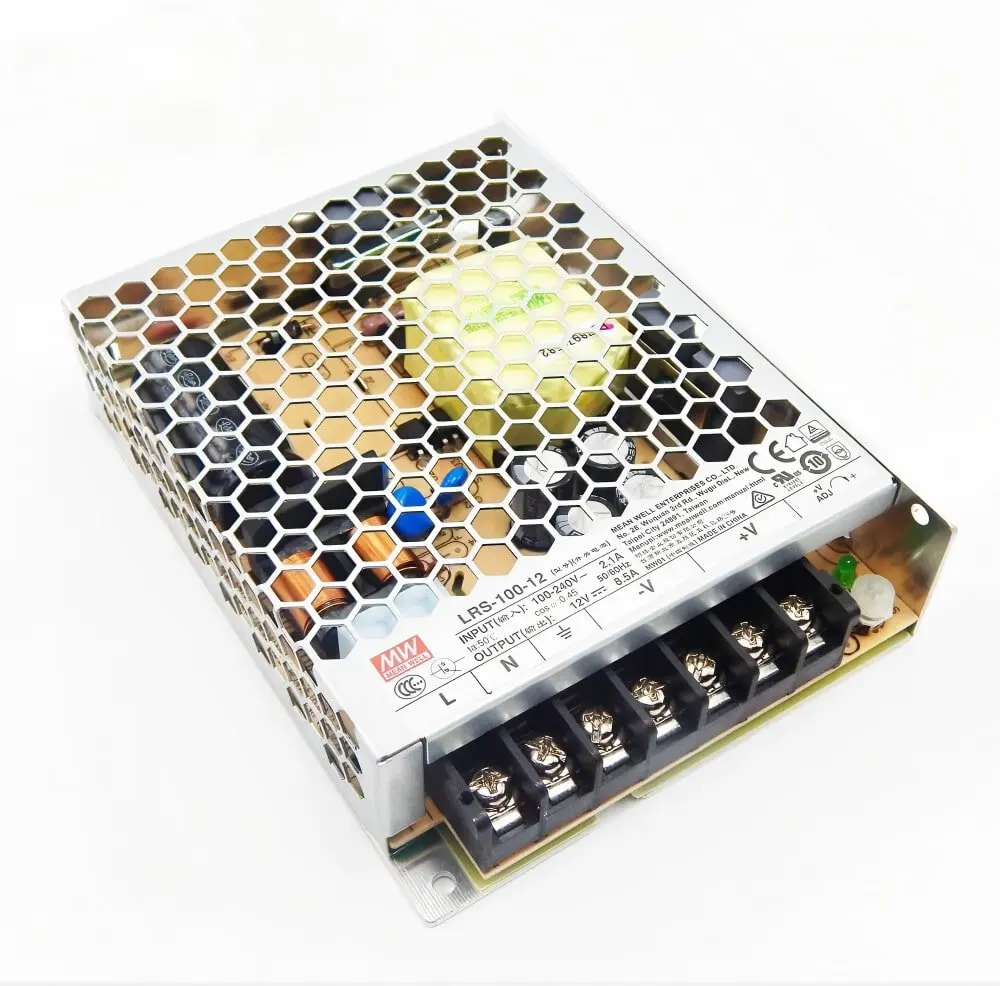

LRS Series
Enclosed type power supply for indoor installations.
- Protection
- IP20
- Type
- Non-Dimmable
- Available Wattage
- 50W, 75W, 100W, 150W, 200W, 350W
LED Driver
Constant-voltage LED drivers and power supplies matched to Artcolor LED strip projects.
Artcolor offers constant-voltage LED drivers and power-supply programs matched by strip voltage, connected load, input mains, dimming method, installation environment, and certification requirements. Options range from Mean Well enclosed and IP67 drivers to more budget-friendly China brand drivers and ready-to-use cabinet power supplies, supporting non-dimmable, phase-cut, 0/1-10V, DALI-2, DMX512, and wireless control systems.
Series overview
- Supported Dimming
- Triac / Phase-cut, 0/1-10V, DALI-2 & Push-Dim, DMX512, Wireless (Bluetooth/ZigBee/Wi-Fi), Non-Dimmable
- Driver Type
- Constant Voltage
- Main Programs
- MEAN WELL, China Brand, Cabinet Power Supply
- Output Voltage Range
- 12V / 24V / 48V DC
Mean Well Power Supply Series
The primary non-dimmable main program. With complete global certifications, Mean Well LED power supplies are trusted for stability and longevity in commercial and industrial applications.

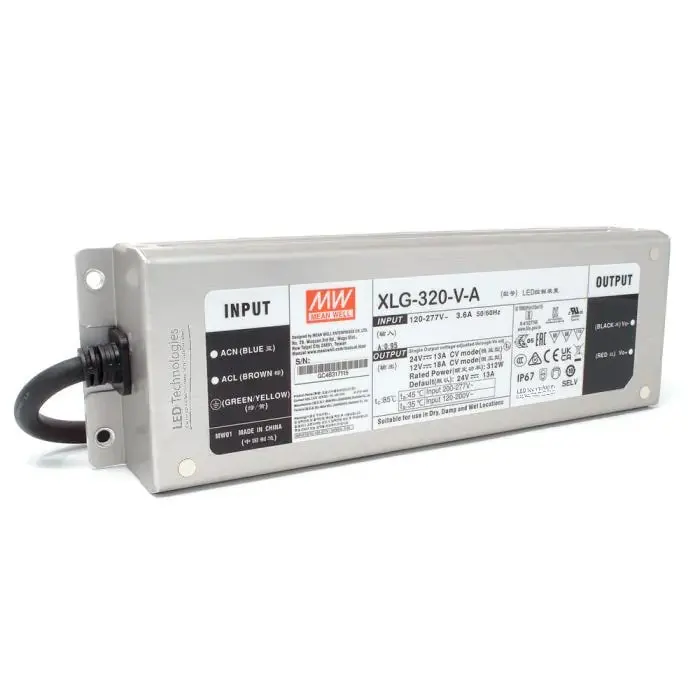

XLG Series
Compact metal case design for harsh environments.
- Protection
- IP67
- Warranty
- 5-Year
- Available Wattage
- 75W, 100W, 150W, 200W, 320W

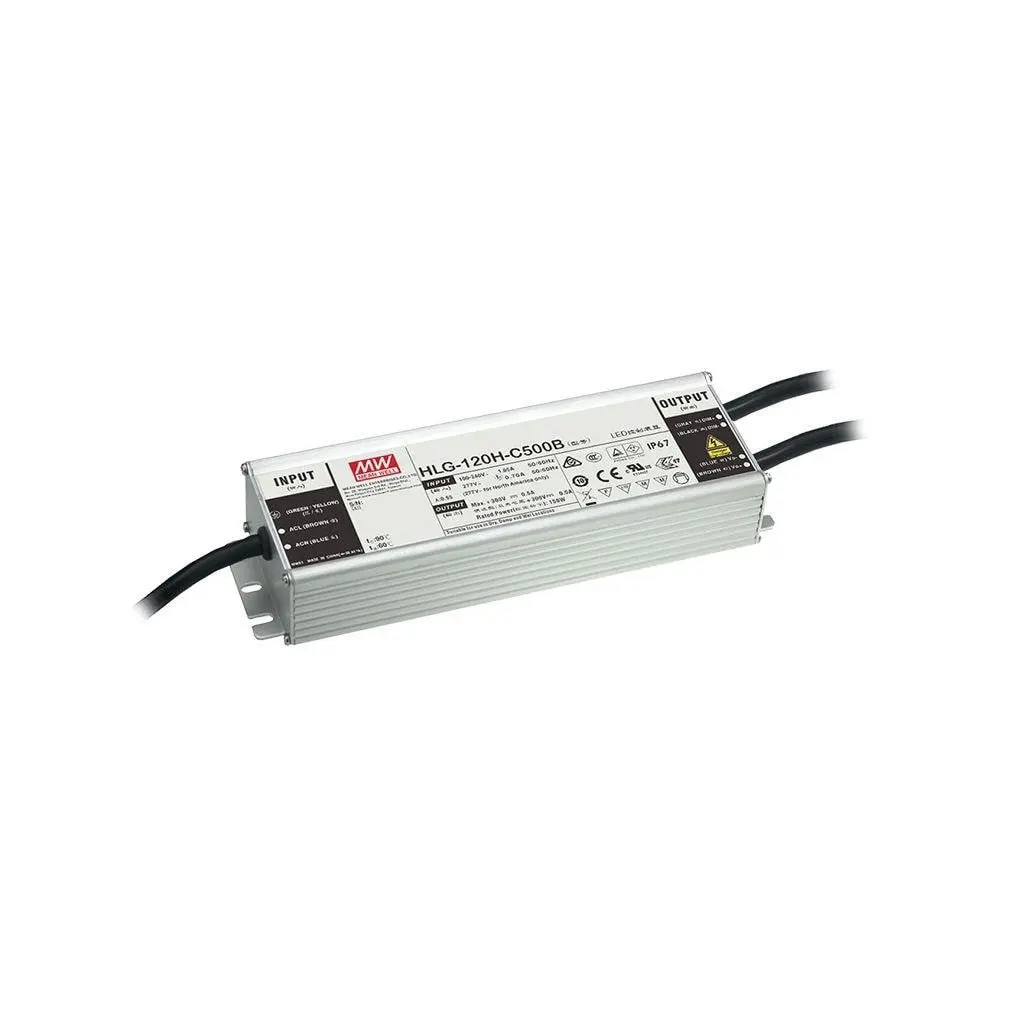

HLG Series
High-performance metal housing driver for heavy-duty applications.
- Protection
- IP67
- Warranty
- 7-Year
- Available Wattage
- 100W, 120W, 150W, 240W, 320W, 480W, 600W
China Brand Power Supply Series
A more flexible and conventional power solution program, highly practical for standard indoor installations and offering good value for everyday strip light projects.
Dimmable Series
Standard constant voltage driver for general indoor lighting.
- Protection
- IP20
- Available Wattage
- 60W, 100W, 150W, 200W, 300W, 400W
0-10V Series
0-10V / 1-10V / Resistance / 10V PWM dimmer and various lighting control systems.
- Protection
- IP20
- Dimming
- 0-10V Dimmable
- Available Wattage
- 60W, 100W, 200W, 300W
Cabinet Power Supply
Not a standard driver, but a ready-to-use power solution. ETL certified and designed specifically for cabinet and showcase lighting applications with easy plug-and-play interfaces.
12/24V Multi-Interface Power Hub
A constant-voltage power unit with multiple low-voltage output interfaces for compatible cabinet and showcase LED strips. Buyers should confirm total output power, maximum load per port, connector type, input cord, installation location and applicable ETL documentation.
- Certification
- ETL Certified
- Output Voltage
- 12/24V DC Constant Voltage
- Interface Design
- 1 in 6 out (6 interfaces for easy cabinet strip connection)
- Available Wattage
- 36W, 48W, 60W
Why specify LED Driver
Match the Output Voltage
The driver output voltage must match the strip's rated input voltage; constant-current drivers should only be used with compatible LED modules or fixtures.
Confirm the Connected Load
Calculate load from the strip model, watts per meter and total connected length, then verify against the exact driver datasheet and derating conditions.
Select the Dimming Method
Confirm whether the project requires non-dimmable, phase-cut, 0-10V, 1-10V, or DALI control; DMX512, SPI and wireless systems normally require a separate controller or decoder.
Verify Installation and Documents
Check AC input, installation location, ambient temperature, enclosure and wiring method, plus model, wiring diagram, certification coverage and warranty conditions.
Questions
Does an LED strip require a constant-voltage or constant-current driver?
Most voltage-driven LED strips require a constant-voltage power supply that matches the strip's rated input voltage. Constant-current drivers should only be used with LED modules or fixtures designed for a specified current and voltage range. Confirm the load type before selecting a driver.
Can any 24V power supply be used with a 24V LED strip?
No. The output voltage must match, but buyers must also check the connected load, AC input, dimming method, ambient temperature, enclosure, wiring, certification and installation requirements. A matching voltage alone does not confirm complete compatibility.
How should buyers calculate the required LED driver wattage?
Calculate the connected strip load using the selected model's rated watts per meter and the length connected to each driver output. Final sizing should follow the exact driver's continuous-output rating, derating requirements, circuit arrangement and installation conditions.
Is the 80% load rule mandatory for every LED driver?
No. It is a common planning approach, not a universal requirement. Some drivers can operate at full rated load under defined conditions, while others require derating based on ambient temperature, input voltage, enclosure or mounting method. Always follow the exact model datasheet.
What is the difference between phase-cut, 0-10V, 1-10V and DALI dimming?
Phase-cut uses a compatible mains-side dimmer and driver. The 0-10V and 1-10V methods use analog control signals, but their circuit behavior and switch-off functions can differ. DALI uses a digital control bus. Compatibility must be confirmed by driver model and control system.
Does an IP67 driver make the complete LED strip system suitable for wet locations?
Not automatically. The driver's IP rating applies only to the tested driver enclosure. Cable entries, connectors, junction boxes, dimmers, controllers and the LED strip require their own suitable protection and installation method. Final use must follow the product ratings and local requirements.
Need a custom led driver?
Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
