Strip to Wire Without Wire Series
Board-to-wire connector without pre-attached cables. Allows custom wire length insertion.
- Model Codes
- MA2P-8, MA2P-10, MA2P-12, MA3P-8, MA3P-10, MA4P-8, MA4P-10, MA5P-10, MA5P-12, MA6P-12, RA2P-8, RA2P-10, ZA2P-10
LED Strip Connector
Solderless connector solutions for fast, clean and reliable LED strip installation.
Artcolor's LED Strip Connectors are professional, solderless terminal blocks designed for rapid wiring, splicing, extending and bridging of LED tapes. They are engineered for COB, SMD, single color, CCT, RGB, RGBW and RGB+CCT LED strips, covering both non-waterproof and IP65 waterproof applications for large-scale architectural lighting projects.
Series overview
- Strip Types Supported
- Universal, COB, SMD, High-Density
- Functions
- Strip to Wire, Strip to Strip (w/ Wire), Strip to Strip, L / R / T / Cross / DC
- Pin Count
- 2Pin / 3Pin / 4Pin / 5Pin / 6Pin
- PCB Width
- 8mm / 10mm / 12mm
- IP Rating
- Non-Waterproof (IP20) / IP65 Waterproof
- Compatible Wire
- 24–22AWG
Non-Waterproof Connector Series
A complete lineup of 10 distinct non-waterproof series designed for indoor IP20 bare board and silicone-coated strips. Compatible wire: 24–22AWG.

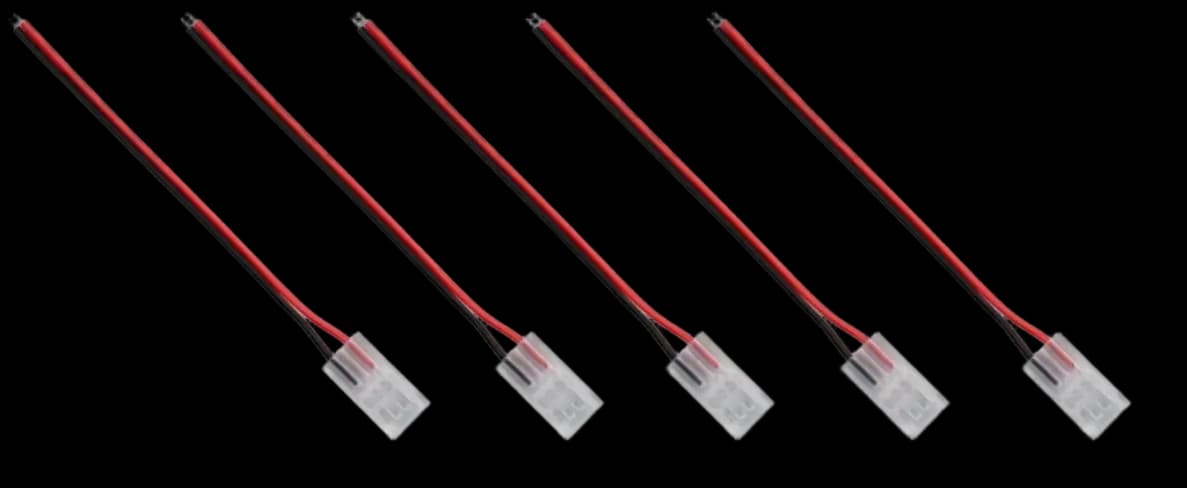

Strip to Wire with 10cm Wire Series
Pre-wired single head connector. Ready to splice into power supplies or controllers.
- Model Codes
- MA2P-8-1, MA2P-10-1, MA2P-12-1, MA3P-8-1, MA3P-10-1, MA4P-8-1, MA4P-10-1, MA5P-10-1, MA5P-12-1, MA6P-12-1, RA2P-8-1, RA2P-10-1, ZA2P-10-1

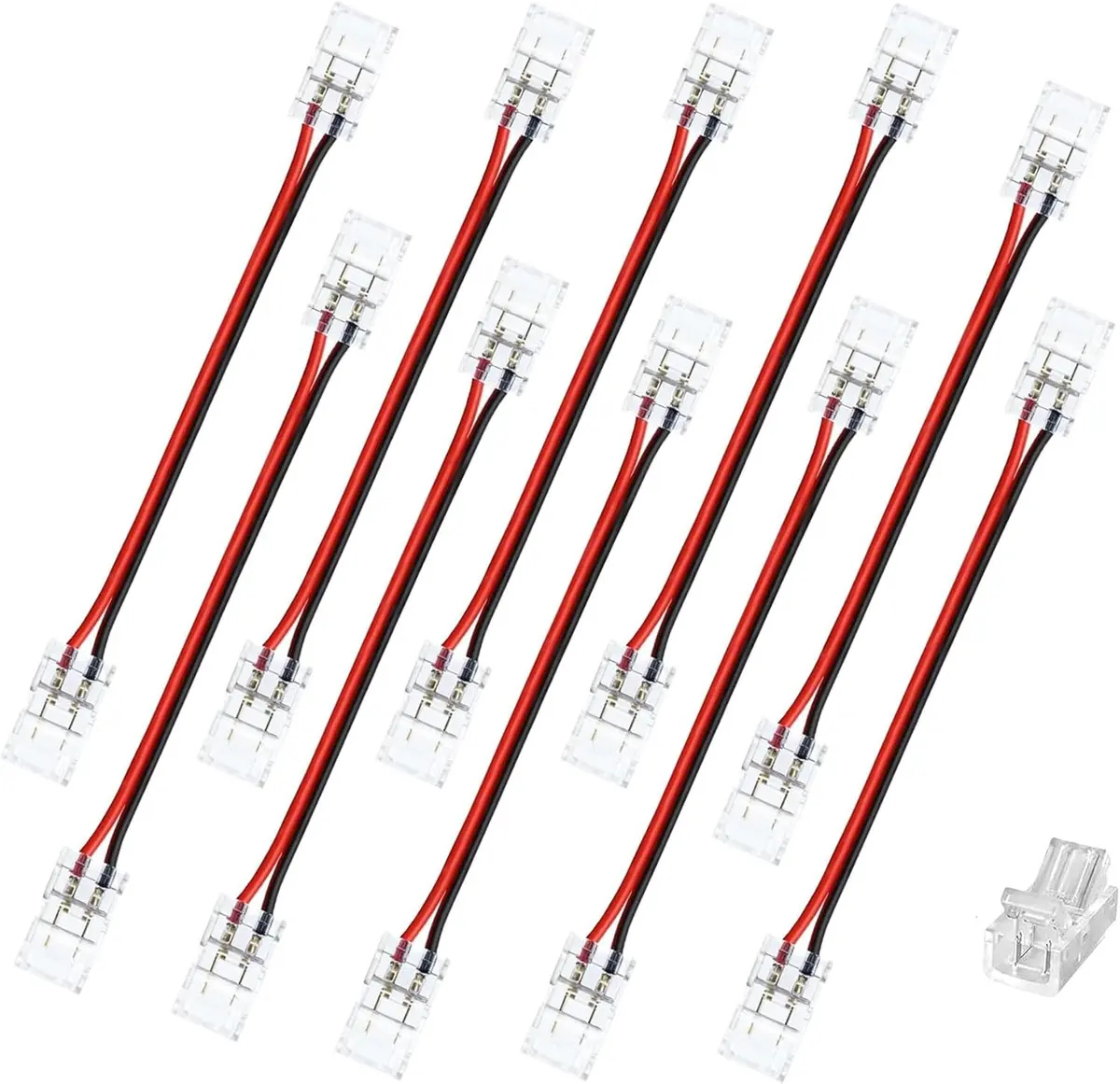

Strip to Strip with 10cm Wire Series
Double-ended jumper cable. Perfect for turning corners or bridging gaps between strips.
- Model Codes
- MA2P-8-2, MA2P-10-2, MA2P-12-2, MA3P-8-2, MA3P-10-2, MA4P-8-2, MA4P-10-2, MA5P-10-2, MA5P-12-2, MA6P-12-2, RA2P-8-2, RA2P-10-2, ZA2P-10-2

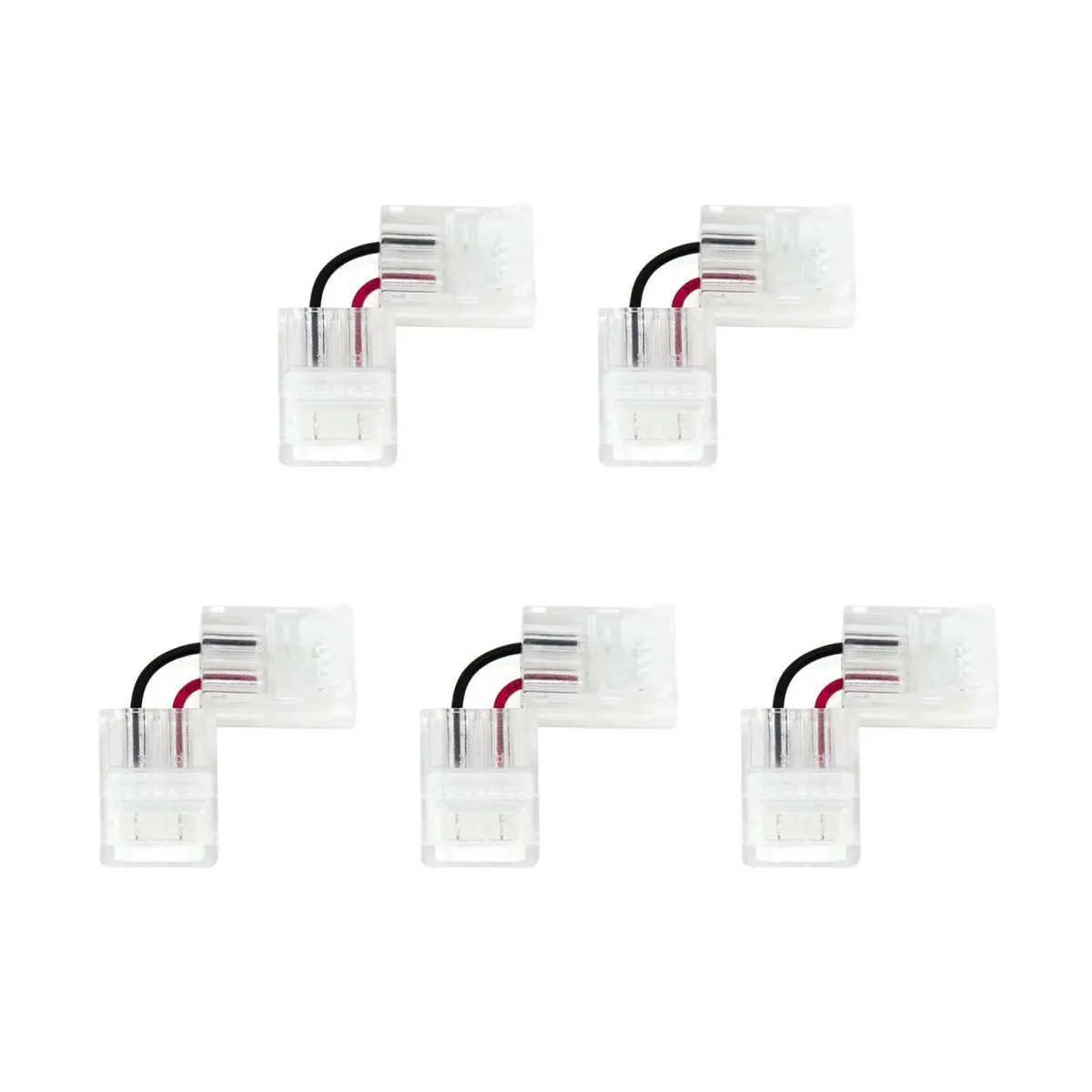

Outer Corner with Wire Series
L-shaped conversion connector for clean 90-degree corner installations without bending the strip.
- Model Codes
- MA2P-8-L, MA2P-10-L, MA2P-12-L, MA3P-8-L, MA3P-10-L, MA4P-8-L, MA4P-10-L, MA5P-10-L, MA5P-12-L, MA6P-12-L, RA2P-8-L, RA2P-10-L, ZA2P-10-L
Inner Corner with 2cm Wire (R) Series
R-type structural connector for specific routing requirements in complex lighting layouts.
- Model Codes
- MA2P-8-R, MA2P-10-R, MA2P-12-R, MA3P-8-R, MA3P-10-R, MA4P-8-R, MA4P-10-R, MA5P-10-R, MA5P-12-R, MA6P-12-R, RA2P-8-R, RA2P-10-R, ZA2P-10-R

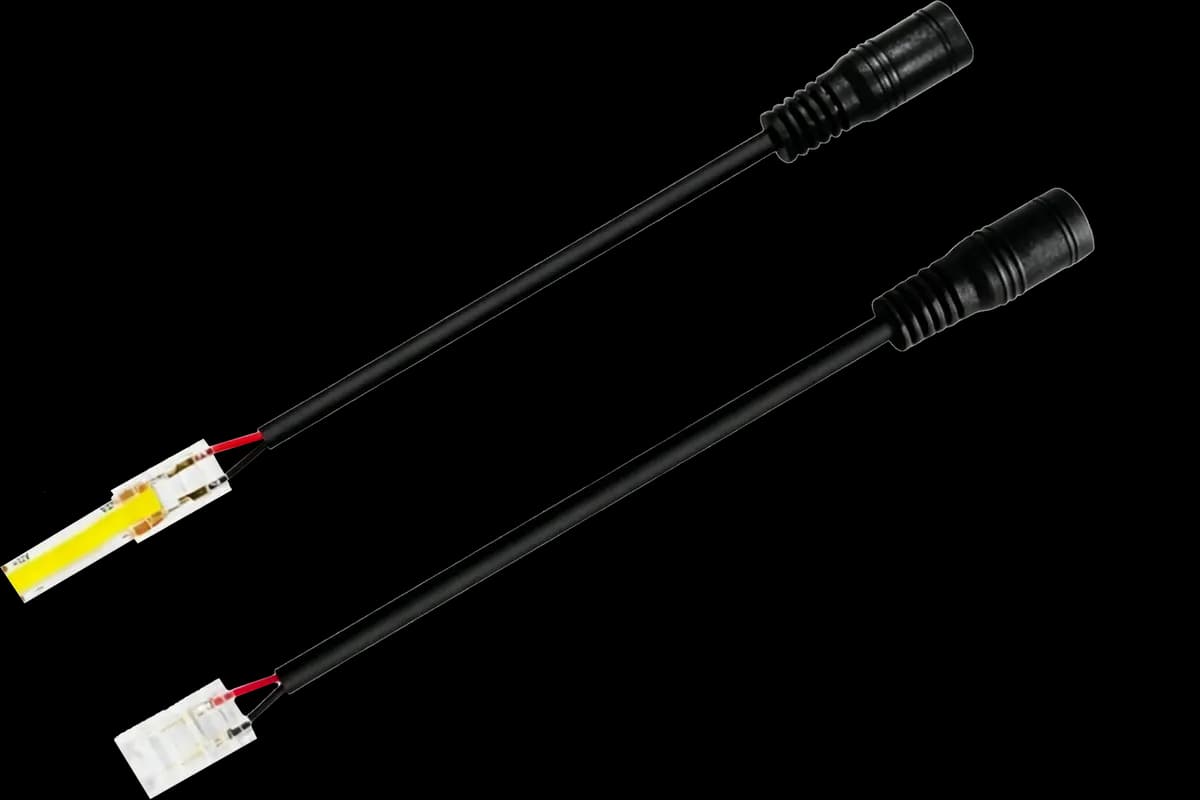

Strip to DC / DuPont Wire Series
Integrated with DC jacks or DuPont terminals for direct plug-and-play into power adapters or smart controllers.
- Model Codes
- MA2P-8-DC, MA2P-10-DC, MA2P-12-DC, RA2P-8-DC, RA2P-10-DC, ZA2P-10-DC, MA3P-8-MK, MA3P-10-MK, MA4P-8-MK, MA4P-10-MK, MA5P-10-MK, MA5P-12-MK, MA6P-12-MK

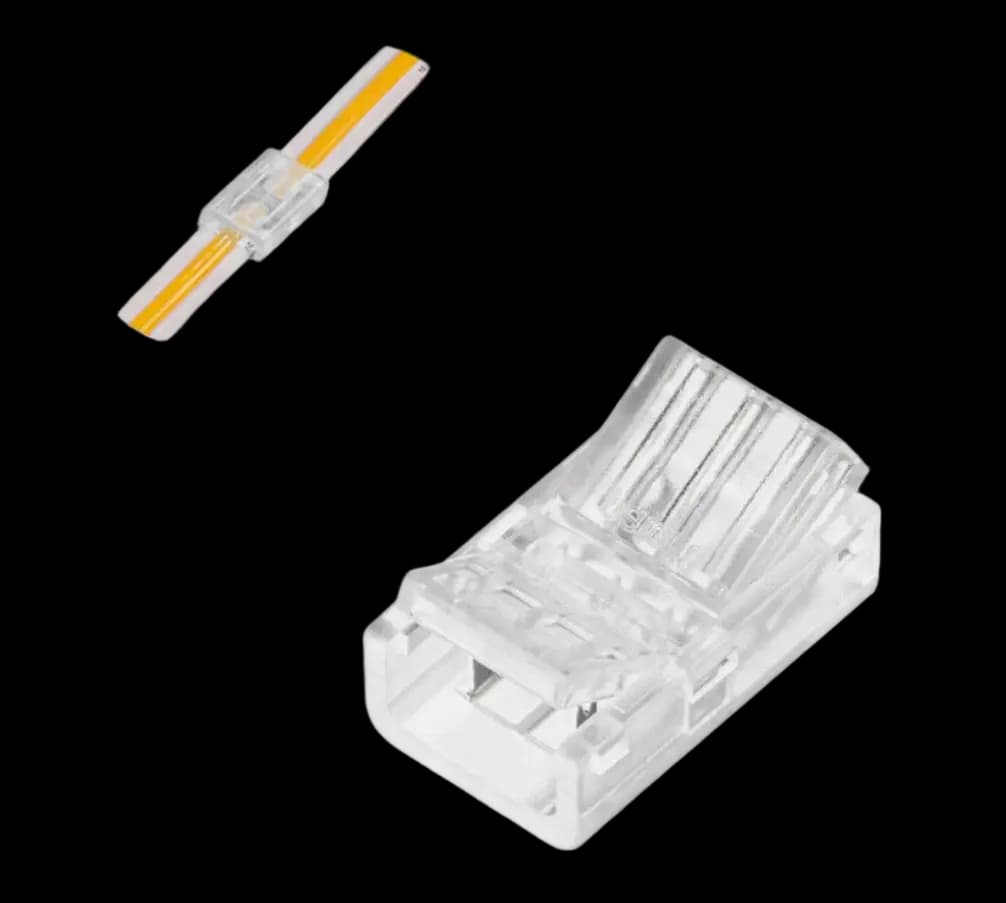

Middle Connector Without Wire Series
Direct board-to-board (strip-to-strip) invisible splice. Creates a seamless continuous lighting effect.
- Model Codes
- MB2P-8, MB2P-10, MB2P-12, MB3P-8, MB3P-10, MB4P-8, MB4P-10, MB5P-10, MB5P-12, MB6P-12, RB2P-8, RB2P-10, ZB2P-10

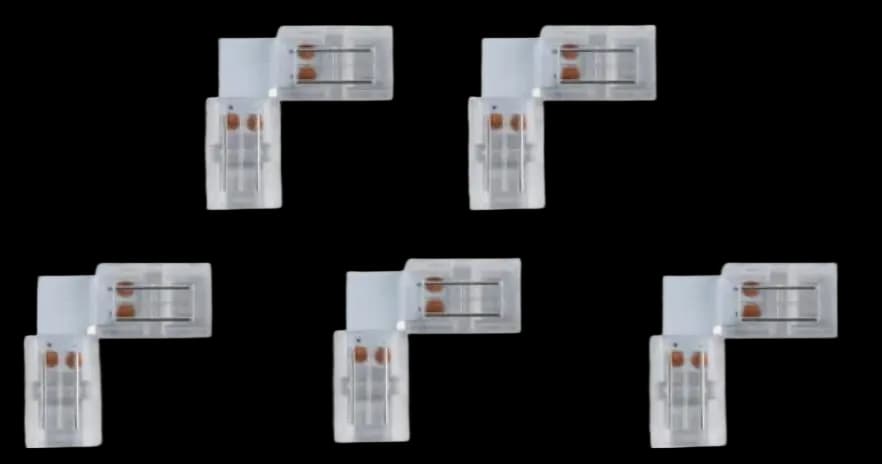

L Type Connector with FPC Series
Rigid L-shape PCB connector for sharp 90-degree corners. Ensures stable connection without wire fatigue.
- Model Codes
- MB2P-8-L, MB2P-10-L, MB2P-12-L, MB3P-8-L, MB3P-10-L, MB4P-8-L, MB4P-10-L, MB5P-10-L, MB5P-12-L, MB6P-12-L, RB2P-8-L, RB2P-10-L, ZB2P-10-L

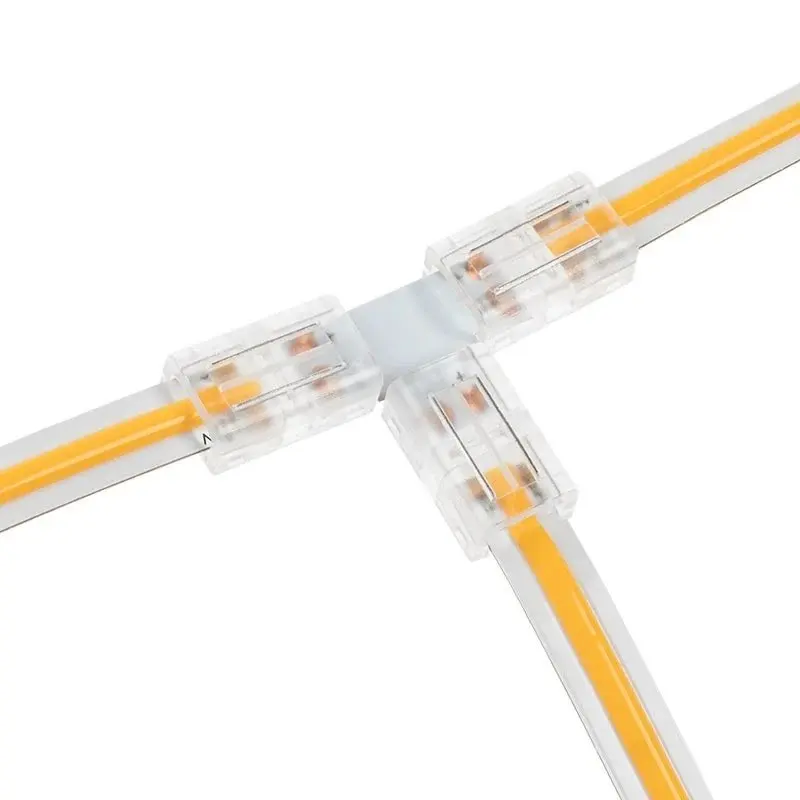

T-type Connector Series
Rigid T-shape splitter connector. Ideal for branching one power line into two perpendicular strip runs.
- Model Codes
- MB2P-8-T, MB2P-10-T, MB2P-12-T, MB3P-8-T, MB3P-10-T, MB4P-8-T, MB4P-10-T, MB5P-10-T, MB5P-12-T, MB6P-12-T, RB2P-8-T, RB2P-10-T, ZB2P-10-T

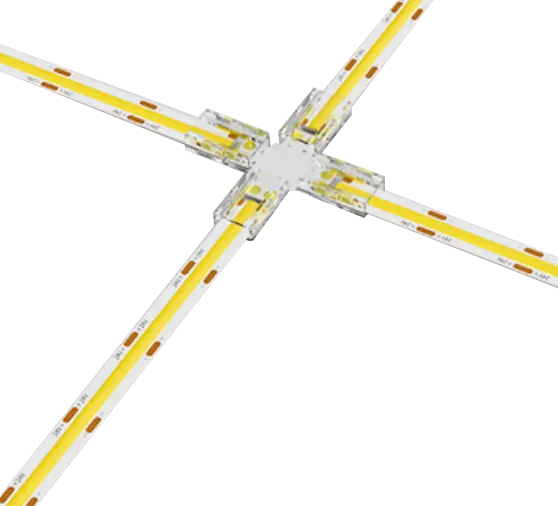

Across (+) Connector Series
Rigid Cross (+) shape connector. Enables a four-way split from a central power injection point.
- Model Codes
- MB2P-8-+, MB2P-10-+, MB2P-12-+, MB3P-8-+, MB3P-10-+, MB4P-8-+, MB4P-10-+, MB5P-10-+, MB5P-12-+, MB6P-12-+, RB2P-8-+, RB2P-10-+, ZB2P-10-+
Waterproof IP65 Connector Series
Engineered specifically for IP65 silicone tube or PU coated LED strips, using piercing contact technology to ensure waterproof integrity without stripping the coating. Categorized by 3 core functions.
IP65 Strip to Wire Series
Pierce-to-contact waterproof connector joining an LED strip directly to power wires, sized to the strip type and pin count.
| Strip Type | Model Codes |
|---|---|
| Universal | HR-IP-SC-2PIN-8MM-B, HR-IP-SC-2PIN-10MM-B |
| COB | HR-IP-COB-3PIN-10MM-B, HR-IP-COB-4PIN-10MM-B |
| SMD (2-4 Pin) | HR-IP-SMD-2PIN-10MM-B, HR-IP-SMD-3PIN-10MM-B, HR-IP-SMD-4PIN-10MM-B |
| SMD (5-6 Pin) | HR-IP-SMD-5PIN-12MM-B, HR-IP-SMD-6PIN-12MM-B |
IP65 Strip to Strip with Wire Series
Pierce-to-contact waterproof jumper connector joining two LED strip sections via wire, sized to the strip type and pin count.
| Strip Type | Model Codes |
|---|---|
| Universal | HR-IP-SC-2PIN-8MM-C, HR-IP-SC-2PIN-10MM-C |
| COB | HR-IP-COB-3PIN-10MM-C, HR-IP-COB-4PIN-10MM-C |
| SMD (2-4 Pin) | HR-IP-SMD-2PIN-10MM-C, HR-IP-SMD-3PIN-10MM-C, HR-IP-SMD-4PIN-10MM-C |
| SMD (5-6 Pin) | HR-IP-SMD-5PIN-12MM-C, HR-IP-SMD-6PIN-12MM-C |
IP65 Strip to Strip Series
Direct IP65-rated pierce-to-contact splice joining two LED strip sections end-to-end, sized to the strip type and pin count.
| Strip Type | Model Codes |
|---|---|
| Universal | HR-IP-SC-2PIN-8MM-A |
| COB | HR-IP-COB-2PIN-10MM-A, HR-IP-COB-4PIN-10MM-A |
| SMD (2-4 Pin) | HR-IP-SMD-2PIN-10MM-A, HR-IP-SMD-3PIN-10MM-A, HR-IP-SMD-4PIN-10MM-A |
| SMD (5-6 Pin) | HR-IP-SMD-5PIN-12MM-A, HR-IP-SMD-6PIN-12MM-A |
Specifications
Connector vs. Soldering
| Comparison Dimension | Solderless Connector | Traditional Soldering |
|---|---|---|
| Installation Speed | Extremely Fast (Seconds) | Slow (Requires heating & prep) |
| Ease of Use | Plug & Play | Requires flux, tin, and steady hands |
| Maintenance | Easy to unclasp and replace | Requires desoldering equipment |
| Skill Requirement | Zero (DIY Friendly) | High (Professional Installer) |
| On-Site Replacement | Highly Convenient | Difficult (especially on ceilings/corners) |
| Stability in Harsh Conditions | Good (standard environments) | Superior (extreme vibration/temp) |
Why specify LED Strip Connector
Faster Installation
Reduce labor time by up to 70%. Snap and lock mechanism allows for instant connections on site.
No Soldering Needed
Perfect for installers without soldering skills. Eliminates the risk of cold solder joints and PCB damage.
Easier Maintenance
Simply unclasp to replace a faulty strip section. No need to desolder and resolder in tight spaces.
Better for Project Use
Standardized connections ensure uniform electrical performance and cleaner aesthetics across large installations.
Complete Category System
One-stop procurement for all pin counts, widths, and structural shapes.
Universal Compatibility
Flawless support for COB, SMD, waterproof (IP65), and non-waterproof strips.
Questions
How do I choose the right LED strip connector?
You need to confirm four main parameters: 1) Strip type (COB or SMD), 2) PCB width (8mm, 10mm, or 12mm), 3) Pin count (2-pin for single color, up to 6-pin for RGB+CCT), and 4) IP rating (non-waterproof or IP65).
What is the difference between strip to wire and strip to strip connector?
A "Strip to Wire" connector connects your LED strip to a power source or controller via bare wires. A "Strip to Strip" connector joins two pieces of LED tape together, either directly end-to-end (invisible splice) or with a wire jumper in between to navigate corners.
Are these connectors compatible with COB LED strips?
Yes, there are specific series designed exclusively for COB strips. Because COB strips have a continuous phosphor coating, the COB-specific connectors use piercing technology to make contact with the PCB pads without damaging the continuous light-emitting surface.
How do I confirm the pin count and strip width?
Count the number of copper pads at the cut line on your LED strip (e.g., 2 pads = 2-pin). To find the width, measure across the PCB (the board itself, not including waterproof casing if any) using a caliper or precise ruler. Common widths are 8mm, 10mm, and 12mm.
Are waterproof LED strip connectors really IP65?
Yes, the IP65 waterproof series uses a special piercing mechanism that penetrates the silicone/PU coating to reach the PCB without requiring you to peel the waterproof layer off. This maintains the integrity of the seal, suitable for damp and wet locations.
Can I use solderless connectors for RGB and RGBW LED strips?
Yes. 4-pin connectors are available for RGB, 5-pin for RGBW, and 6-pin for RGB+CCT strips. Just ensure the PCB width matches (typically 10mm or 12mm for multi-color strips).
Need a custom led strip connector?
Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
