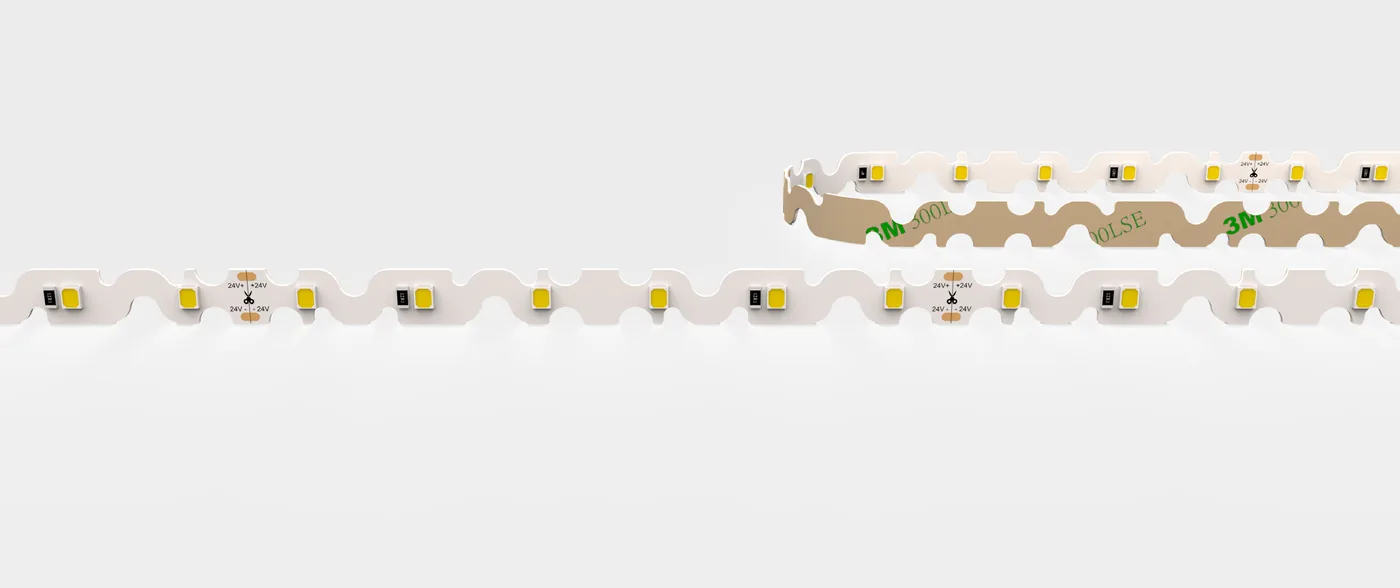

AW2835-24V-60-8mm

Wave 2835 White Strip

Wave's S-shaped board bends sideways, so the strip follows curves and curved mouldings. 2835 LEDs at 60 or 120 per metre on 12 V and 24 V, with a 30 mm bend radius.

24 V60 LEDs/m8 mm12 W/mCut every 100 mm

Colour temperature

1,181 lm/m · 98 lm/W · Efficiency class F · Code AW28353090246008S15

Ingress protection

Indoor, bare board

Quantity (reels)

Reel length to be confirmed in your quotation.

Full specifications & datasheet

TECHNICAL DATA

Model No.: AW2835-24V-60-8MM
LED chip: 2835
Power consumption: 12 W/m
Voltage: 24 V DC
LED density: 60 LEDs/m
Board width: 8 mm
CRI: >90
Colour consistency: SDCM <3
Cutting interval: 100 mm / 3.94 in
Bend radius: 30 mm
Max length: 5 m / 16.4 ft
Beam angle: 116.6°
Warranty: 5 years

Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.

IP PROTECTION

IP20Indoor, bare board
IP54Nano coating, splash resistant
IP65Silicone glue, weatherproof
IP67Silicone tube, temporary immersion
IP68Solid silicone extrusion, submersible

ELECTRIC PARAMETERS

Product range	CCT / Channel	CRI	SDCM	Power	Lumen	Efficiency	Efficiency class	Product code
Wave 8246008	2200K	≥90	<3	12W/m 3.66W/ft	901lm/m 275lm/ft	75lm/w	G	AW28352290246008S15
Wave 8246008	2700K	≥90	<3	12W/m 3.66W/ft	1110lm/m 338lm/ft	92lm/w	F	AW28352790246008S15
Wave 8246008	3000K	≥90	<3	12W/m 3.66W/ft	1181lm/m 360lm/ft	98lm/w	F	AW28353090246008S15
Wave 8246008	3500K	≥90	<3	12W/m 3.66W/ft	1236lm/m 377lm/ft	103lm/w	F	AW28353590246008S15
Wave 8246008	4000K	≥90	<3	12W/m 3.66W/ft	1222lm/m 372lm/ft	102lm/w	F	AW28354090246008S15
Wave 8246008	4500K	≥90	<3	12W/m 3.66W/ft	1215lm/m 370lm/ft	101lm/w	F	AW28354590246008S15
Wave 8246008	5000K	≥90	<3	12W/m 3.66W/ft	1248lm/m 380lm/ft	104lm/w	F	AW28355090246008S15
Wave 8246008	6500K	≥90	<3	12W/m 3.66W/ft	1206lm/m 368lm/ft	101lm/w	F	AW28356590246008S15
