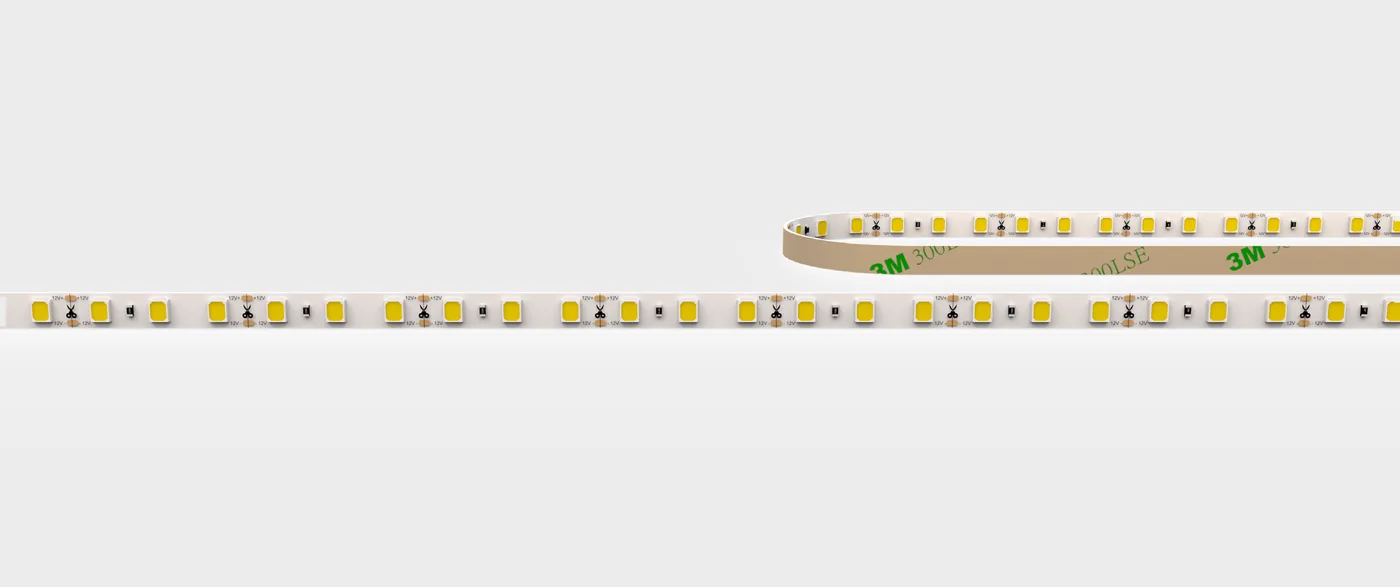

AS2835-12V-120-5mm
PrimCore 2835 White Strip

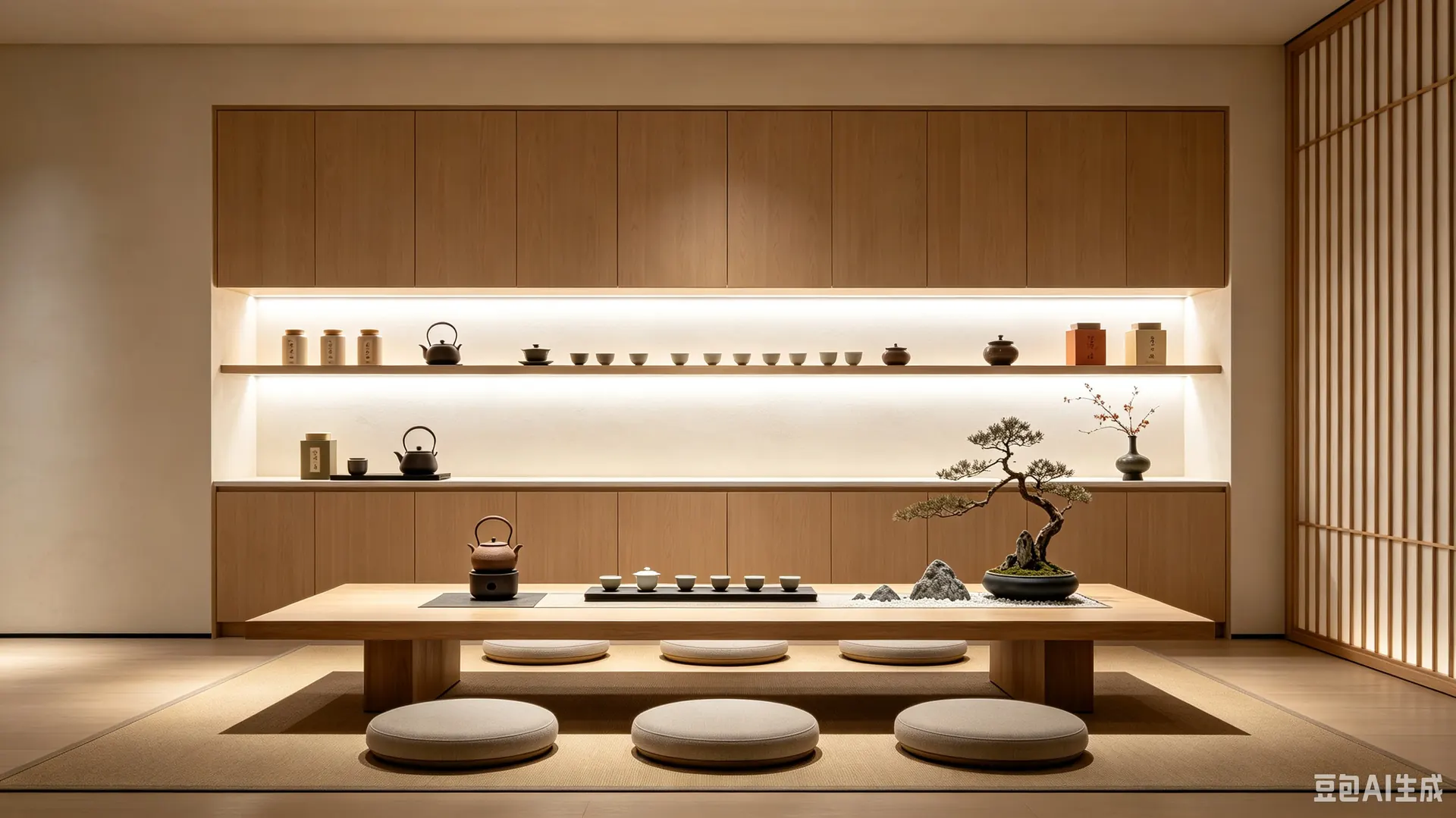

PrimCore has a simple, universal structure, and its standard cutting points suit the length changes of everyday projects: a cost-effective strip for indoor ambient lighting. 2835 LEDs on 12 V and 24 V, CRI >90, SDCM <3, from 2200K to 6500K.
12 V120 LEDs/m5 mm9.6 W/mCut every 25 mm
Full specifications & datasheet
TECHNICAL DATA
- Model No.
- AS2835-12V-120-5MM
- LED chip
- 2835
- Power consumption
- 9.6 W/m
- Voltage
- 12 V DC
- LED density
- 120 LEDs/m
- Board width
- 5 mm
- CRI
- >90
- Colour consistency
- SDCM <3
- Cutting interval
- 25 mm / 0.98 in
- Bend radius
- 60 mm
- Max length
- 5 m / 16.4 ft
- Beam angle
- 116.8°
- Warranty
- 5 years
Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.
IP PROTECTION
- IP20Indoor, bare board
- IP54Nano coating, splash resistant
- IP65Silicone glue, weatherproof
- IP67Silicone tube, temporary immersion
- IP68Solid silicone extrusion, submersible
ELECTRIC PARAMETERS
| Product range | CCT / Channel | CRI | SDCM | Power | Lumen | Efficiency | Efficiency class | Product code |
|---|---|---|---|---|---|---|---|---|
| PrimCore 81212005 | 2200K | ≥90 | <3 | 9.6W/m 2.93W/ft | 673lm/m 205lm/ft | 70lm/w | G | AS283522901212005S15 |
| PrimCore 81212005 | 2700K | ≥90 | <3 | 9.6W/m 2.93W/ft | 943lm/m 287lm/ft | 98lm/w | F | AS283527901212005S15 |
| PrimCore 81212005 | 3000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 992lm/m 302lm/ft | 103lm/w | F | AS283530901212005S15 |
| PrimCore 81212005 | 3500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1035lm/m 315lm/ft | 108lm/w | F | AS283535901212005S15 |
| PrimCore 81212005 | 4000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1030lm/m 314lm/ft | 107lm/w | F | AS283540901212005S15 |
| PrimCore 81212005 | 4500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1027lm/m 313lm/ft | 107lm/w | F | AS283545901212005S15 |
| PrimCore 81212005 | 5000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1063lm/m 324lm/ft | 111lm/w | F | AS283550901212005S15 |
| PrimCore 81212005 | 6500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1018lm/m 310lm/ft | 106lm/w | F | AS283565901212005S15 |
Documents on request
