PrimCore
PrimCore / Static white
AS2835-24V-120-8mm

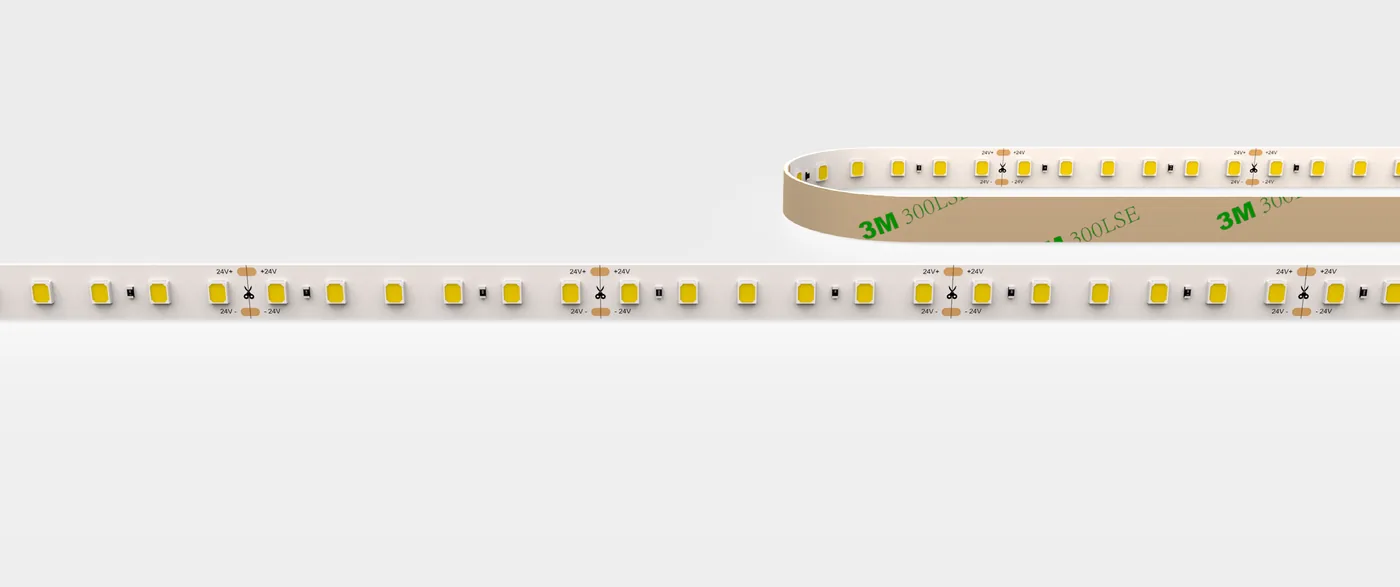

PrimCore 2835 White Strip
PrimCore has a simple, universal structure, and its standard cutting points suit the length changes of everyday projects: a cost-effective strip for indoor ambient lighting. 2835 LEDs on 12 V and 24 V, CRI >90, SDCM <3, from 2200K to 6500K.
24 V120 LEDs/m8 mm14.4 W/mCut every 50 mm
Full specifications & datasheet
TECHNICAL DATA
- Model No.
- AS2835-24V-120-8MM
- LED chip
- 2835
- Power consumption
- 14.4 W/m
- Voltage
- 24 V DC
- LED density
- 120 LEDs/m
- Board width
- 8 mm
- CRI
- >90
- Colour consistency
- SDCM <3
- Cutting interval
- 50 mm / 1.97 in
- Bend radius
- 60 mm
- Max length
- 5 m / 16.4 ft
- Beam angle
- 116.7°
- Warranty
- 5 years
Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.
IP PROTECTION
- IP20Indoor, bare board
- IP54Nano coating, splash resistant
- IP65Silicone glue, weatherproof
- IP67Silicone tube, temporary immersion
- IP68Solid silicone extrusion, submersible
ELECTRIC PARAMETERS
| Product range | CCT / Channel | CRI | SDCM | Power | Lumen | Efficiency | Efficiency class | Product code |
|---|---|---|---|---|---|---|---|---|
| PrimCore 82412008 | 2200K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1135lm/m 346lm/ft | 79lm/w | G | AS283522902412008S15 |
| PrimCore 82412008 | 2700K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1374lm/m 419lm/ft | 96lm/w | F | AS283527902412008S15 |
| PrimCore 82412008 | 3000K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1470lm/m 448lm/ft | 102lm/w | F | AS283530902412008S15 |
| PrimCore 82412008 | 3500K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1526lm/m 465lm/ft | 106lm/w | F | AS283535902412008S15 |
| PrimCore 82412008 | 4000K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1509lm/m 460lm/ft | 105lm/w | F | AS283540902412008S15 |
| PrimCore 82412008 | 4500K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1509lm/m 460lm/ft | 105lm/w | F | AS283545902412008S15 |
| PrimCore 82412008 | 5000K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1555lm/m 474lm/ft | 108lm/w | F | AS283550902412008S15 |
| PrimCore 82412008 | 6500K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1496lm/m 456lm/ft | 104lm/w | F | AS283565902412008S15 |
Documents on request
