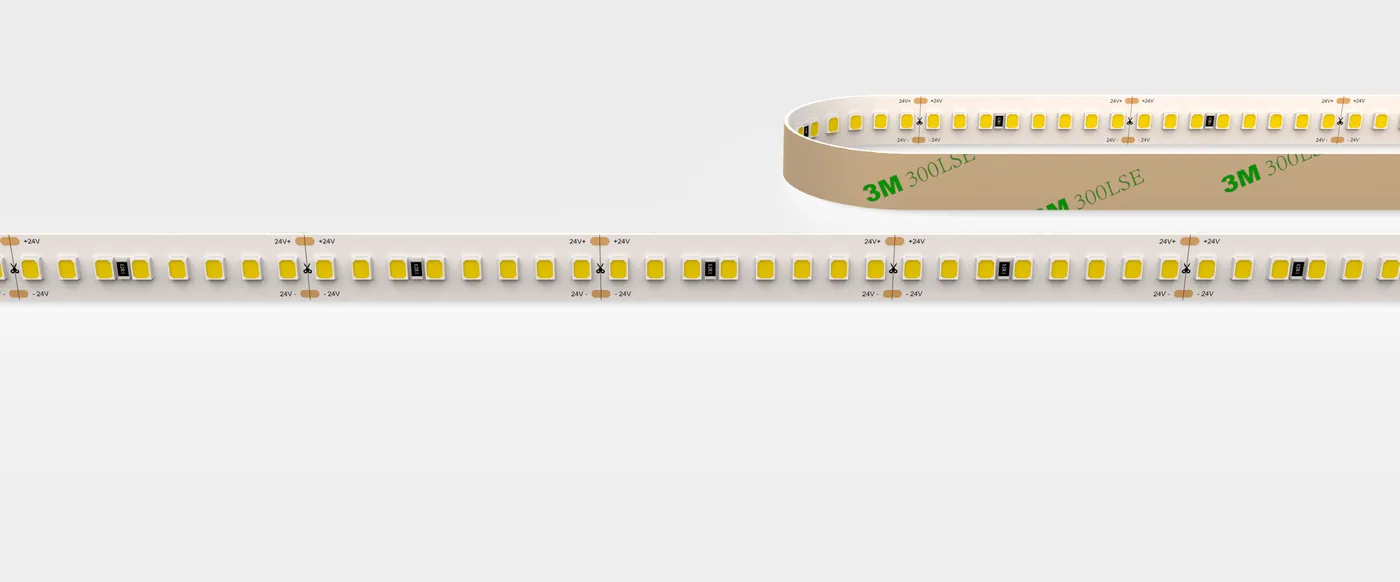

AP2835-24V-240-10mm

RayMax 2835 White Strip

RayMax gives high efficacy at low power consumption. Its bare board dissipates heat well for low light decay, and the light colour stays uniform and consistent. 2835 LEDs at 80 to 240 per metre on 24 V, CRI >90, up to 150 lm/W.

24 V240 LEDs/m10 mm22 W/mCut every 33.33 mm

Power is shown as 22 W/m, from the technical data and the table's own lumen and efficacy figures; the printed electrical table reads 17.5 W/m. The printed table mixes AP and AS prefixes; order codes are shown with this model's AP prefix. Confirm the full code with Artcolor before ordering.

Colour temperature

2,827 lm/m · 131 lm/W · Efficiency class E · Code AP283530902424010S15

Ingress protection

Indoor, bare board

Quantity (reels)

Reel length to be confirmed in your quotation.

Full specifications & datasheet

TECHNICAL DATA

Model No.: AP2835-24V-240-10MM
LED chip: 2835
Power consumption: 22 W/m
Voltage: 24 V DC
LED density: 240 LEDs/m
Board width: 10 mm
CRI: >90
Colour consistency: SDCM <3
Cutting interval: 33.33 mm / 1.31 in
Bend radius: 60 mm
Max length: 5 m / 16.4 ft
Beam angle: 116.7°
Warranty: 5 years

Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.

Data under review: Power is shown as 22 W/m, from the technical data and the table's own lumen and efficacy figures; the printed electrical table reads 17.5 W/m. The printed table mixes AP and AS prefixes; order codes are shown with this model's AP prefix. Confirm the full code with Artcolor before ordering.

IP PROTECTION

IP20Indoor, bare board
IP54Nano coating, splash resistant
IP65Silicone glue, weatherproof
IP67Silicone tube, temporary immersion
IP68Solid silicone extrusion, submersible

ELECTRIC PARAMETERS

Product range	CCT / Channel	CRI	SDCM	Power	Lumen	Efficiency	Efficiency class	Product code
RayMax 82424010	2200K	≥90	<3	17.5W/m 5.33W/ft	2245lm/m 684lm/ft	104lm/w	F	AP283522902424010S15
RayMax 82424010	2700K	≥90	<3	17.5W/m 5.33W/ft	2700lm/m 823lm/ft	125lm/w	E	AS283527902424010S15
RayMax 82424010	3000K	≥90	<3	17.5W/m 5.33W/ft	2827lm/m 862lm/ft	131lm/w	E	AS283530902424010S15
RayMax 82424010	3500K	≥90	<3	17.5W/m 5.33W/ft	2950lm/m 899lm/ft	137lm/w	D	AS283535902424010S15
RayMax 82424010	4000K	≥90	<3	17.5W/m 5.33W/ft	2951lm/m 899lm/ft	137lm/w	D	AS283540902424010S15
RayMax 82424010	4500K	≥90	<3	17.5W/m 5.33W/ft	2945lm/m 898lm/ft	136lm/w	D	AS283545902424010S15
RayMax 82424010	5000K	≥90	<3	17.5W/m 5.33W/ft	3054lm/m 931lm/ft	141lm/w	D	AS283550902424010S15
RayMax 82424010	6500K	≥90	<3	17.5W/m 5.33W/ft	2911lm/m 887lm/ft	135lm/w	D	AS283565902424010S15
