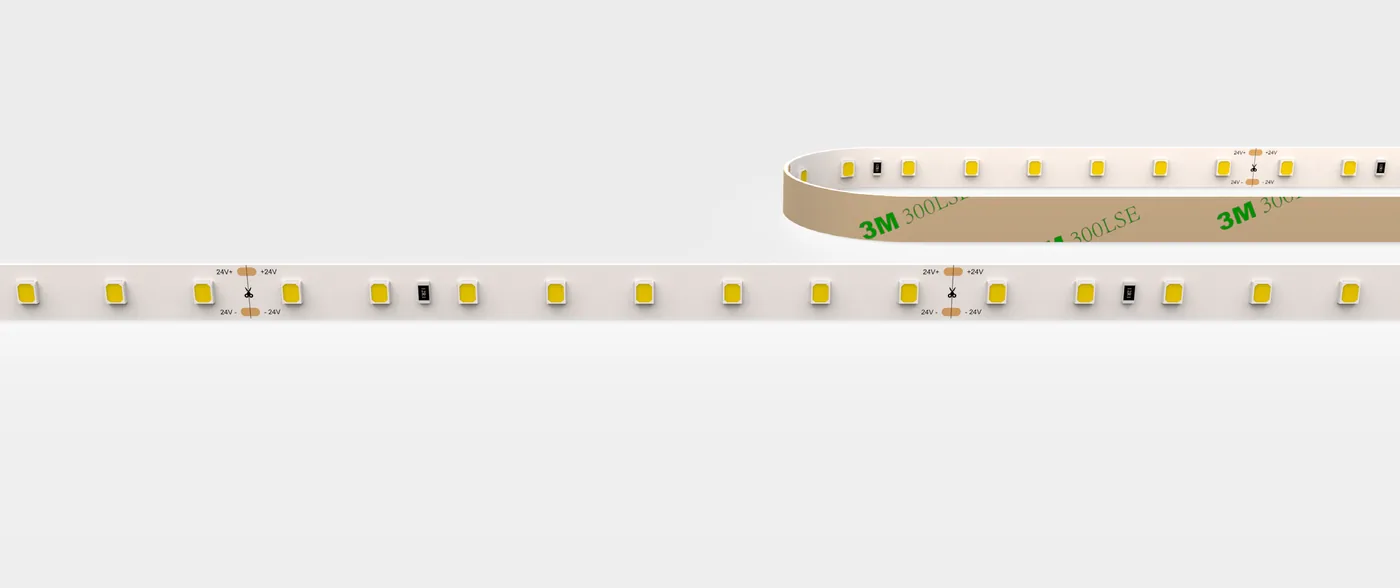

AP2835-24V-80-8mm

RayMax 2835 White Strip

RayMax gives high efficacy at low power consumption. Its bare board dissipates heat well for low light decay, and the light colour stays uniform and consistent. 2835 LEDs at 80 to 240 per metre on 24 V, CRI >90, up to 150 lm/W.

24 V80 LEDs/m8 mm7.2 W/mCut every 100 mm

The printed table mixes AP and AS prefixes; order codes are shown with this model's AP prefix. Confirm the full code with Artcolor before ordering.

Colour temperature

999 lm/m · 139 lm/W · Efficiency class D · Code AP28353090248008S15

Ingress protection

Indoor, bare board

Quantity (reels)

Reel length to be confirmed in your quotation.

Full specifications & datasheet

TECHNICAL DATA

Model No.: AP2835-24V-80-8MM
LED chip: 2835
Power consumption: 7.2 W/m
Voltage: 24 V DC
LED density: 80 LEDs/m
Board width: 8 mm
CRI: >90
Colour consistency: SDCM <3
Cutting interval: 100 mm / 3.94 in
Bend radius: 60 mm
Max length: 5 m / 16.4 ft
Beam angle: 116.8°
Warranty: 5 years

Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.

Data under review: The printed table mixes AP and AS prefixes; order codes are shown with this model's AP prefix. Confirm the full code with Artcolor before ordering.

IP PROTECTION

IP20Indoor, bare board
IP54Nano coating, splash resistant
IP65Silicone glue, weatherproof
IP67Silicone tube, temporary immersion
IP68Solid silicone extrusion, submersible

ELECTRIC PARAMETERS

Product range	CCT / Channel	CRI	SDCM	Power	Lumen	Efficiency	Efficiency class	Product code
RayMax 8248008	2200K	≥90	<3	7.2W/m 2.19W/ft	788lm/m 240lm/ft	109lm/w	F	AP28352290248008S15
RayMax 8248008	2700K	≥90	<3	7.2W/m 2.19W/ft	960lm/m 293lm/ft	133lm/w	E	AS28352790248008S15
RayMax 8248008	3000K	≥90	<3	7.2W/m 2.19W/ft	999lm/m 305lm/ft	139lm/w	D	AS28353090248008S15
RayMax 8248008	3500K	≥90	<3	7.2W/m 2.19W/ft	1043lm/m 318lm/ft	145lm/w	D	AS28353590248008S15
RayMax 8248008	4000K	≥90	<3	7.2W/m 2.19W/ft	1050lm/m 320lm/ft	146lm/w	D	AS28354090248008S15
RayMax 8248008	4500K	≥90	<3	7.2W/m 2.19W/ft	1047lm/m 319lm/ft	145lm/w	D	AS28354590248008S15
RayMax 8248008	5000K	≥90	<3	7.2W/m 2.19W/ft	1082lm/m 330lm/ft	150lm/w	D	AS28355090248008S15
RayMax 8248008	6500K	≥90	<3	7.2W/m 2.19W/ft	1041lm/m 317lm/ft	145lm/w	D	AS28356590248008S15
