RayMax
RayMax / Static white
AP2835-24V-160-5mm

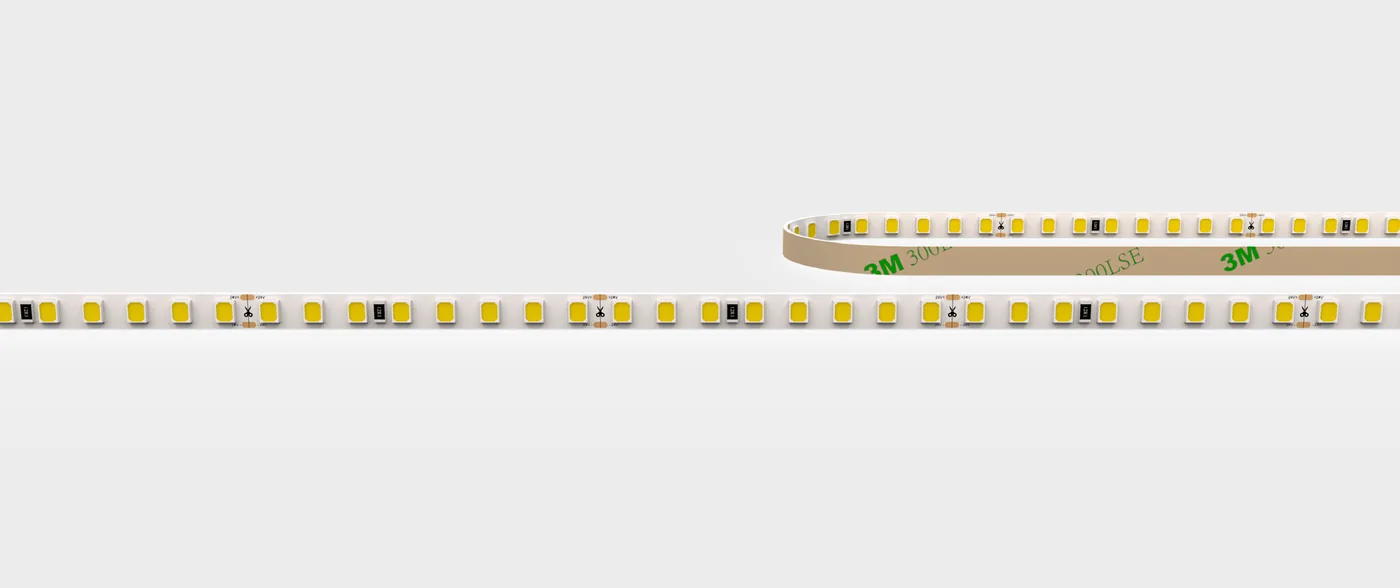

RayMax 2835 White Strip
RayMax gives high efficacy at low power consumption. Its bare board dissipates heat well for low light decay, and the light colour stays uniform and consistent. 2835 LEDs at 80 to 240 per metre on 24 V, CRI >90, up to 150 lm/W.
The printed table mixes AP and AS prefixes; order codes are shown with this model's AP prefix. Confirm the full code with Artcolor before ordering.
Full specifications & datasheet
TECHNICAL DATA
- Model No.
- AP2835-24V-160-5MM
- LED chip
- 2835
- Power consumption
- 9.6 W/m
- Voltage
- 24 V DC
- LED density
- 160 LEDs/m
- Board width
- 5 mm
- CRI
- >90
- Colour consistency
- SDCM <3
- Cutting interval
- 50 mm / 1.97 in
- Bend radius
- 60 mm
- Max length
- 5 m / 16.4 ft
- Beam angle
- 116.9°
- Warranty
- 5 years
Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.
Data under review: The printed table mixes AP and AS prefixes; order codes are shown with this model's AP prefix. Confirm the full code with Artcolor before ordering.
IP PROTECTION
- IP20Indoor, bare board
- IP54Nano coating, splash resistant
- IP65Silicone glue, weatherproof
- IP67Silicone tube, temporary immersion
- IP68Solid silicone extrusion, submersible
ELECTRIC PARAMETERS
| Product range | CCT / Channel | CRI | SDCM | Power | Lumen | Efficiency | Efficiency class | Product code |
|---|---|---|---|---|---|---|---|---|
| RayMax 82416005 | 2200K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1043lm/m 318lm/ft | 109lm/w | F | AP283522902416005S15 |
| RayMax 82416005 | 2700K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1267lm/m 386lm/ft | 132lm/w | E | AS283527902416005S15 |
| RayMax 82416005 | 3000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1376lm/m 419lm/ft | 143lm/w | D | AS283530902416005S15 |
| RayMax 82416005 | 3500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1383lm/m 422lm/ft | 144lm/w | D | AS283535902416005S15 |
| RayMax 82416005 | 4000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1336lm/m 407lm/ft | 139lm/w | D | AS283540902416005S15 |
| RayMax 82416005 | 4500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1368lm/m 417lm/ft | 143lm/w | D | AS283545902416005S15 |
| RayMax 82416005 | 5000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1430lm/m 436lm/ft | 149lm/w | D | AS283550902416005S15 |
| RayMax 82416005 | 6500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1367lm/m 417lm/ft | 142lm/w | D | AS283565902416005S15 |
Documents on request
