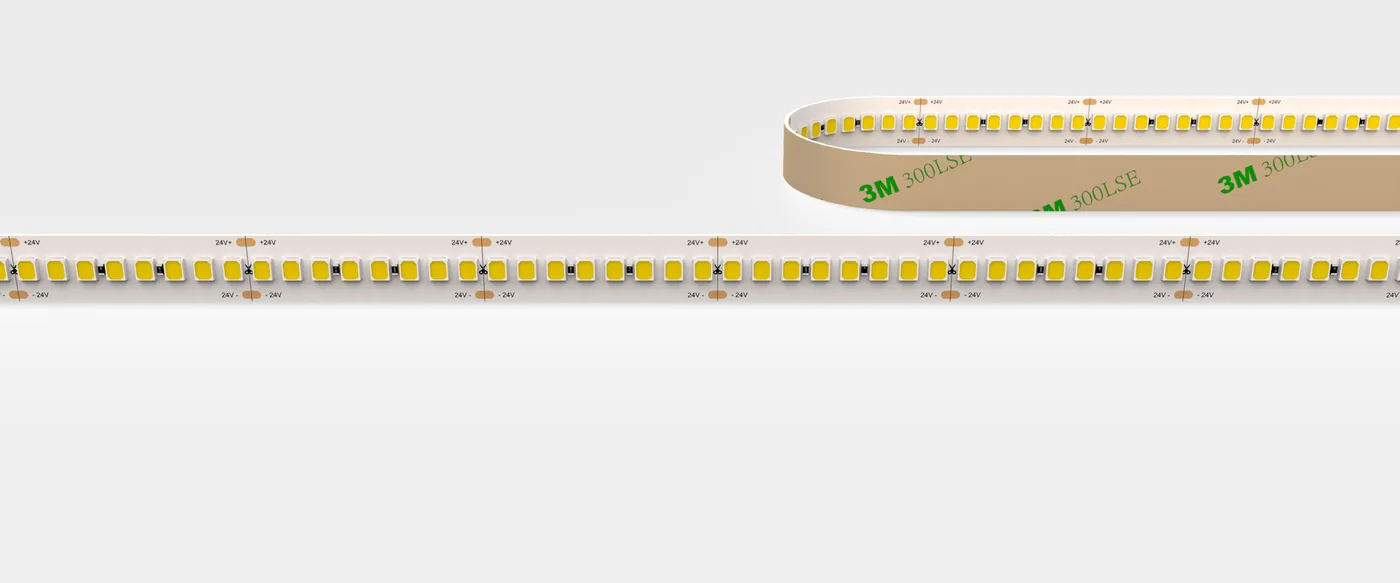

AP2835-24V-192-10mm

RayMax 2835 White Strip

RayMax gives high efficacy at low power consumption. Its bare board dissipates heat well for low light decay, and the light colour stays uniform and consistent. 2835 LEDs at 80 to 240 per metre on 24 V, CRI >90, up to 150 lm/W.

24 V192 LEDs/m10 mm17.5 W/mCut every 41.67 mm

The printed table mixes AP and AS prefixes; order codes are shown with this model's AP prefix. Confirm the full code with Artcolor before ordering.

Colour temperature

2,286 lm/m · 132 lm/W · Efficiency class D · Code AP283530902419210S15

Ingress protection

Indoor, bare board

Quantity (reels)

Reel length to be confirmed in your quotation.

Full specifications & datasheet

TECHNICAL DATA

Model No.: AP2835-24V-192-10MM
LED chip: 2835
Power consumption: 17.5 W/m
Voltage: 24 V DC
LED density: 192 LEDs/m
Board width: 10 mm
CRI: >90
Colour consistency: SDCM <3
Cutting interval: 41.67 mm / 1.64 in
Bend radius: 60 mm
Max length: 5 m / 16.4 ft
Beam angle: 116.9°
Warranty: 5 years

Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.

Data under review: The printed table mixes AP and AS prefixes; order codes are shown with this model's AP prefix. Confirm the full code with Artcolor before ordering.

IP PROTECTION

IP20Indoor, bare board
IP54Nano coating, splash resistant
IP65Silicone glue, weatherproof
IP67Silicone tube, temporary immersion
IP68Solid silicone extrusion, submersible

ELECTRIC PARAMETERS

Product range	CCT / Channel	CRI	SDCM	Power	Lumen	Efficiency	Efficiency class	Product code
RayMax 82419210	2200K	≥90	<3	17.5W/m 5.33W/ft	1748lm/m 533lm/ft	101lm/w	F	AP283522902419210S15
RayMax 82419210	2700K	≥90	<3	17.5W/m 5.33W/ft	2302lm/m 702lm/ft	133lm/w	E	AS283527902419210S15
RayMax 82419210	3000K	≥90	<3	17.5W/m 5.33W/ft	2286lm/m 697lm/ft	132lm/w	D	AS283530902419210S15
RayMax 82419210	3500K	≥90	<3	17.5W/m 5.33W/ft	2360lm/m 719lm/ft	136lm/w	D	AS283535902419210S15
RayMax 82419210	4000K	≥90	<3	17.5W/m 5.33W/ft	2490lm/m 760lm/ft	144lm/w	D	AS283540902419210S15
RayMax 82419210	4500K	≥90	<3	17.5W/m 5.33W/ft	2503lm/m 763lm/ft	144lm/w	D	AS283545902419210S15
RayMax 82419210	5000K	≥90	<3	17.5W/m 5.33W/ft	2597lm/m 792lm/ft	150lm/w	D	AS283550902419210S15
RayMax 82419210	6500K	≥90	<3	17.5W/m 5.33W/ft	2472lm/m 753lm/ft	142lm/w	D	AS283565902419210S15
