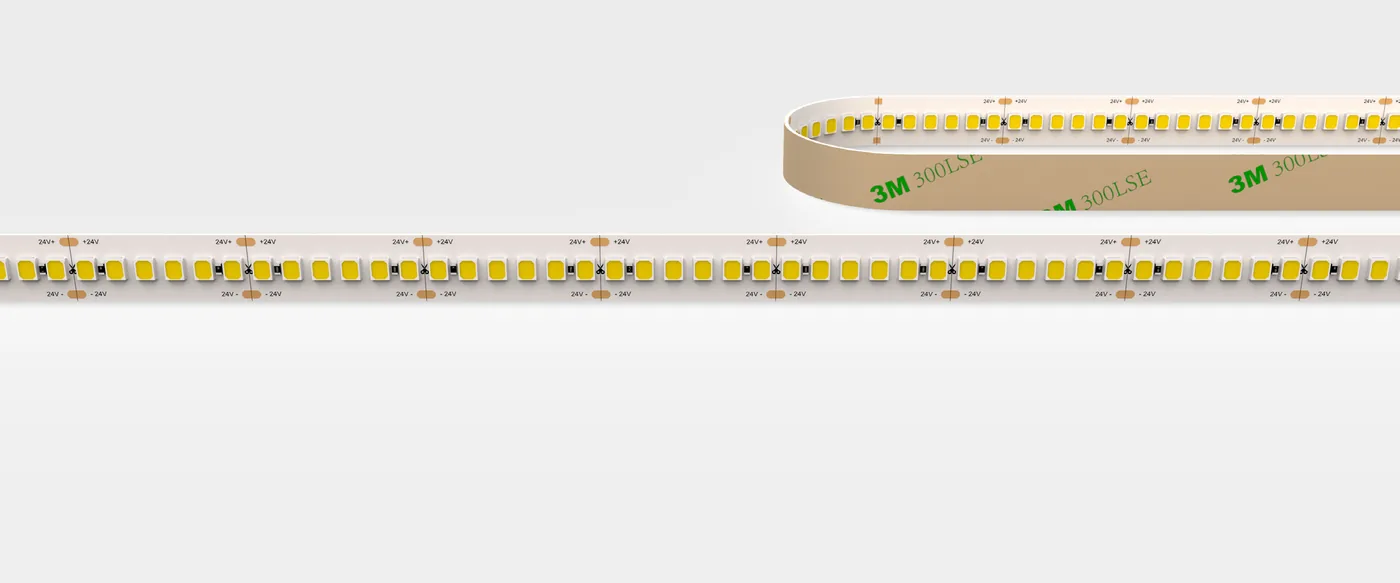

AS2835-24V-240-10mm

PrimCore 2835 White Strip

PrimCore has a simple, universal structure, and its standard cutting points suit the length changes of everyday projects: a cost-effective strip for indoor ambient lighting. 2835 LEDs on 12 V and 24 V, CRI >90, SDCM <3, from 2200K to 6500K.

24 V240 LEDs/m10 mm18 W/mCut every 25 mm

The 2700K output is shown as 1862 lm/m (568 lm/ft), consistent with its printed 96 lm/W; the printed table read 1547 lm/m and repeated the 2200K lm/ft value.

Colour temperature

1,951 lm/m · 100 lm/W · Efficiency class F · Code AS283530902424010S15

Ingress protection

Indoor, bare board

Quantity (reels)

Reel length to be confirmed in your quotation.

Full specifications & datasheet

TECHNICAL DATA

Model No.: AS2835-24V-240-10MM
LED chip: 2835
Power consumption: 18 W/m
Voltage: 24 V DC
LED density: 240 LEDs/m
Board width: 10 mm
CRI: >90
Colour consistency: SDCM <3
Cutting interval: 25 mm / 0.98 in
Bend radius: 60 mm
Max length: 5 m / 16.4 ft
Beam angle: 116.9°
Warranty: 5 years

Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.

Data under review: The 2700K output is shown as 1862 lm/m (568 lm/ft), consistent with its printed 96 lm/W; the printed table read 1547 lm/m and repeated the 2200K lm/ft value.

IP PROTECTION

IP20Indoor, bare board
IP54Nano coating, splash resistant
IP65Silicone glue, weatherproof
IP67Silicone tube, temporary immersion
IP68Solid silicone extrusion, submersible

ELECTRIC PARAMETERS

Product range	CCT / Channel	CRI	SDCM	Power	Lumen	Efficiency	Efficiency class	Product code
PrimCore 82424010	2200K	≥90	<3	18W/m 5.49W/ft	1539lm/m 469lm/ft	80lm/w	G	AS283522902424010S15
PrimCore 82424010	2700K	≥90	<3	18W/m 5.49W/ft	1547lm/m 469lm/ft	96lm/w	F	AS283527902424010S15
PrimCore 82424010	3000K	≥90	<3	18W/m 5.49W/ft	1951lm/m 595lm/ft	100lm/w	F	AS283530902424010S15
PrimCore 82424010	3500K	≥90	<3	18W/m 5.49W/ft	2038lm/m 621lm/ft	105lm/w	F	AS283535902424010S15
PrimCore 82424010	4000K	≥90	<3	18W/m 5.49W/ft	2015lm/m 614lm/ft	104lm/w	F	AS283540902424010S15
PrimCore 82424010	4500K	≥90	<3	18W/m 5.49W/ft	2021lm/m 616lm/ft	104lm/w	F	AS283545902424010S15
PrimCore 82424010	5000K	≥90	<3	18W/m 5.49W/ft	2105lm/m 642lm/ft	108lm/w	F	AS283550902424010S15
PrimCore 82424010	6500K	≥90	<3	18W/m 5.49W/ft	1999lm/m 609lm/ft	103lm/w	F	AS283565902424010S15
