PrimCore
PrimCore / Static white
AS2835-24V-140-8mm

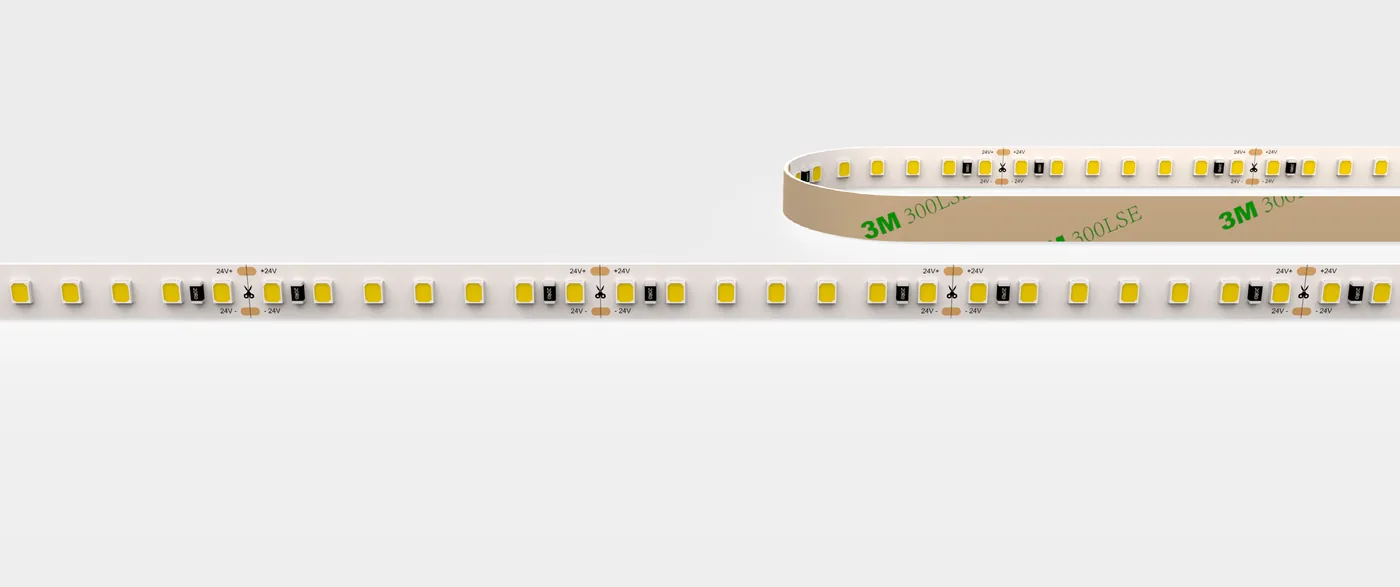

PrimCore 2835 White Strip
PrimCore has a simple, universal structure, and its standard cutting points suit the length changes of everyday projects: a cost-effective strip for indoor ambient lighting. 2835 LEDs on 12 V and 24 V, CRI >90, SDCM <3, from 2200K to 6500K.
24 V140 LEDs/m8 mm14.4 W/mCut every 50 mm
Full specifications & datasheet
TECHNICAL DATA
- Model No.
- AS2835-24V-140-8MM
- LED chip
- 2835
- Power consumption
- 14.4 W/m
- Voltage
- 24 V DC
- LED density
- 140 LEDs/m
- Board width
- 8 mm
- CRI
- >90
- Colour consistency
- SDCM <3
- Cutting interval
- 50 mm / 1.97 in
- Bend radius
- 60 mm
- Max length
- 5 m / 16.4 ft
- Beam angle
- 116.9°
- Warranty
- 5 years
Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.
IP PROTECTION
- IP20Indoor, bare board
- IP54Nano coating, splash resistant
- IP65Silicone glue, weatherproof
- IP67Silicone tube, temporary immersion
- IP68Solid silicone extrusion, submersible
ELECTRIC PARAMETERS
| Product range | CCT / Channel | CRI | SDCM | Power | Lumen | Efficiency | Efficiency class | Product code |
|---|---|---|---|---|---|---|---|---|
| PrimCore 82414008 | 2200K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1304lm/m 378lm/ft | 91lm/w | F | AS283522902414008S15 |
| PrimCore 82414008 | 2700K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1622lm/m 494lm/ft | 113lm/w | E | AS283527902414008S15 |
| PrimCore 82414008 | 3000K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1729lm/m 527lm/ft | 120lm/w | E | AS283530902414008S15 |
| PrimCore 82414008 | 3500K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1806lm/m 550lm/ft | 125lm/w | E | AS283535902414008S15 |
| PrimCore 82414008 | 4000K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1774lm/m 541lm/ft | 123lm/w | E | AS283540902414008S15 |
| PrimCore 82414008 | 4500K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1758lm/m 536lm/ft | 122lm/w | E | AS283545902414008S15 |
| PrimCore 82414008 | 5000K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1820lm/m 555lm/ft | 126lm/w | E | AS283550902414008S15 |
| PrimCore 82414008 | 6500K | ≥90 | <3 | 14.4W/m 4.39W/ft | 1746lm/m 532lm/ft | 121lm/w | E | AS283565902414008S15 |
Documents on request
