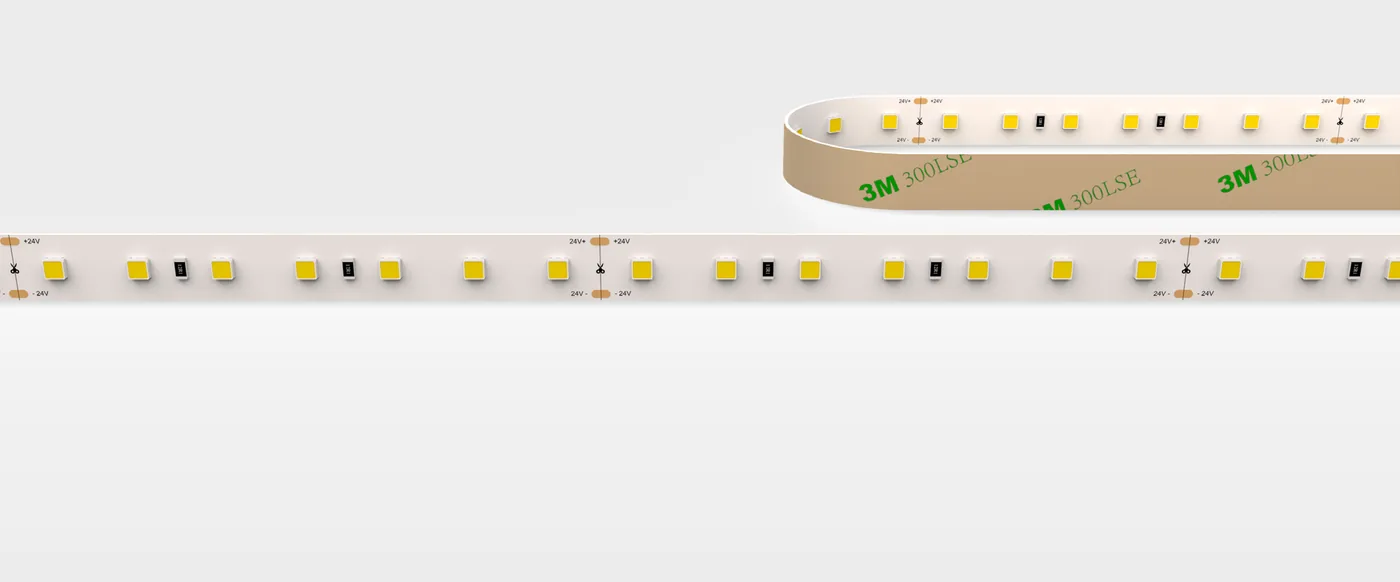

AN3030-24V-84-10mm

ArmorCore 3030 White Strip

ArmorCore is designed for LEDs in EMC brackets and PCT packages, and keeps these fragile LEDs reliable on a flexible strip. 3030 LEDs at 84 per metre on 24 V: Nichia LEDs from 1800K to 5000K at CRI >90, or SunLike LEDs at CRI >95.

24 V84 LEDs/m10 mm14.4 W/mCut every 83.33 mm

Colour temperature

1,617 lm/m · 112 lm/W · Efficiency class E · Code AN3030N2790248410S15

Ingress protection

Indoor, bare board

Quantity (reels)

Reel length to be confirmed in your quotation.

Full specifications & datasheet

TECHNICAL DATA

Model No.: AN3030N-24V-84-10MM
LED chip: 3030
Power consumption: 14.4 W/m
Voltage: 24 V DC
LED density: 84 LEDs/m
Board width: 10 mm
CRI: >90
Colour consistency: SDCM <3
Cutting interval: 83.33 mm / 3.28 in
Bend radius: 60 mm
Max length: 5 m / 16.4 ft
Beam angle: 118.2°
Warranty: 5 years

Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.

IP PROTECTION

IP20Indoor, bare board
IP54Nano coating, splash resistant
IP65Silicone glue, weatherproof
IP67Silicone tube, temporary immersion
IP68Solid silicone extrusion, submersible

ELECTRIC PARAMETERS

Product range	CCT / Channel	CRI	SDCM	Power	Lumen	Efficiency	Efficiency class	Product code
Armor 3N248410	1800K	≥90	<3	14.4W/m 4.39W/ft	1150lm/m 351lm/ft	80lm/w	G	AN3030N1890248410S15
Armor 3N248410	2200K	≥90	<3	14.4W/m 4.39W/ft	1389lm/m 423lm/ft	96lm/w	F	AN3030N2290248410S15
Armor 3N248410	2700K	≥90	<3	14.4W/m 4.39W/ft	1617lm/m 493lm/ft	112lm/w	E	AN3030N2790248410S15
Armor 3N248410	3000K	≥90	<3	14.4W/m 4.39W/ft	1781lm/m 543lm/ft	124lm/w	E	AN3030N3090248410S15
Armor 3N248410	3500K	≥90	<3	14.4W/m 4.39W/ft	1803lm/m 550lm/ft	125lm/w	E	AN3030N3590248410S15
Armor 3N248410	4000K	≥90	<3	14.4W/m 4.39W/ft	1857lm/m 566lm/ft	129lm/w	E	AN3030N4090248410S15
Armor 3N248410	4500K	≥90	<3	14.4W/m 4.39W/ft	1925lm/m 587lm/ft	134lm/w	E	AN3030N4590248410S15
Armor 3N248410	5000K	≥90	<3	14.4W/m 4.39W/ft	1991lm/m 607lm/ft	138lm/w	D	AN3030N5090248410S15

Documents on request
