PrimCore
PrimCore / Static white
AS2835-24V-140-5mm

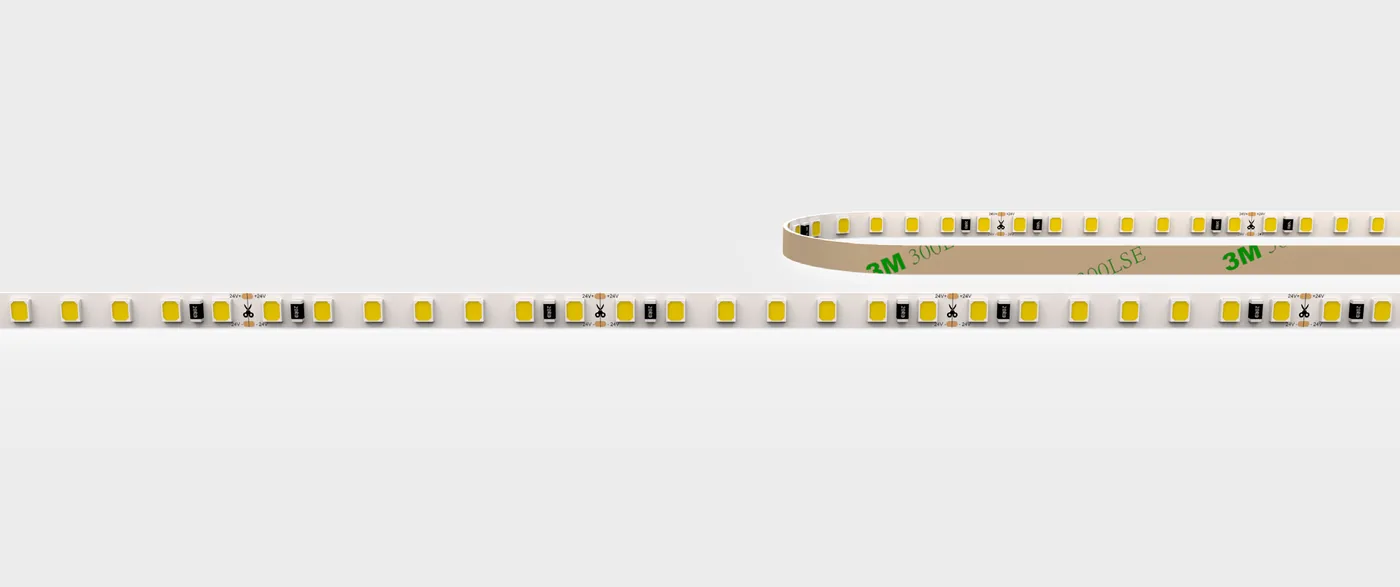

PrimCore 2835 White Strip
PrimCore has a simple, universal structure, and its standard cutting points suit the length changes of everyday projects: a cost-effective strip for indoor ambient lighting. 2835 LEDs on 12 V and 24 V, CRI >90, SDCM <3, from 2200K to 6500K.
24 V140 LEDs/m5 mm9.6 W/mCut every 50 mm
Full specifications & datasheet
TECHNICAL DATA
- Model No.
- AS2835-24V-140-5MM
- LED chip
- 2835
- Power consumption
- 9.6 W/m
- Voltage
- 24 V DC
- LED density
- 140 LEDs/m
- Board width
- 5 mm
- CRI
- >90
- Colour consistency
- SDCM <3
- Cutting interval
- 50 mm / 1.97 in
- Bend radius
- 60 mm
- Max length
- 5 m / 16.4 ft
- Beam angle
- 116.8°
- Warranty
- 5 years
Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.
IP PROTECTION
- IP20Indoor, bare board
- IP54Nano coating, splash resistant
- IP65Silicone glue, weatherproof
- IP67Silicone tube, temporary immersion
- IP68Solid silicone extrusion, submersible
ELECTRIC PARAMETERS
| Product range | CCT / Channel | CRI | SDCM | Power | Lumen | Efficiency | Efficiency class | Product code |
|---|---|---|---|---|---|---|---|---|
| PrimCore 82414005 | 2200K | ≥90 | <3 | 9.6W/m 2.93W/ft | 904lm/m 276lm/ft | 94lm/w | F | AS283522902414005S15 |
| PrimCore 82414005 | 2700K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1116lm/m 340lm/ft | 116lm/w | E | AS283527902414005S15 |
| PrimCore 82414005 | 3000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1190lm/m 362lm/ft | 124lm/w | E | AS283530902414005S15 |
| PrimCore 82414005 | 3500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1241lm/m 378lm/ft | 129lm/w | E | AS283535902414005S15 |
| PrimCore 82414005 | 4000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1222lm/m 372lm/ft | 127lm/w | E | AS283540902414005S15 |
| PrimCore 82414005 | 4500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1214lm/m 370lm/ft | 126lm/w | E | AS283545902414005S15 |
| PrimCore 82414005 | 5000K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1263lm/m 385lm/ft | 132lm/w | E | AS283550902414005S15 |
| PrimCore 82414005 | 6500K | ≥90 | <3 | 9.6W/m 2.93W/ft | 1214lm/m 370lm/ft | 127lm/w | E | AS283565902414005S15 |
Documents on request
