SubRay
Rugged stainless-steel in-ground linear lights in single or dual rows for mono or multi-colour washing.
SubRay is a stainless-steel linear in-ground light in two widths, SubRay90 (50 W/m) and SubRay120 (75 W/m), each in 300, 500 and 1000 mm lengths. Both run on 24 V DC with CRI > 90, SDCM < 3 and IP66, with 15°, 30°, 45° or 10° × 60° beams in 4000K or RGBW.
Series overview
- Models
- SubRay90, SubRay120
- Lengths
- 300, 500, 1000 mm
- Power
- 50 W/m, 75 W/m
- Voltage
- 24 V DC
- Light colours
- 4000K, RGBW
- Beam angle
- 15°, 30°, 45°, 10° × 60°
- IP rating
- IP66
- Warranty
- 3 years
Products
2 of 2 models
SubRaySubRay90
90 × 110 mm stainless-steel in-ground linear light in 300, 500 and 1000 mm lengths at 50 W/m, 24 V DC, CRI > 90, in 4000K and RGBW.
- Power
- 50 W/m
- Voltage
- 24 V DC
- IP rating
- IP66
View details / Request a quote
SubRaySubRay120
120 × 120 mm stainless-steel in-ground linear light in 300, 500 and 1000 mm lengths at 75 W/m, 24 V DC, CRI > 90, in 4000K and RGBW.
- Power
- 75 W/m
- Voltage
- 24 V DC
- IP rating
- IP66
View details / Request a quote
Why specify SubRay
Stainless steel body
The body is stainless steel, in a traditional and substantial form.
Single or dual row
Single-row and dual-row versions are offered, scaled to the project.
Mono or multi-colour in-ground wash

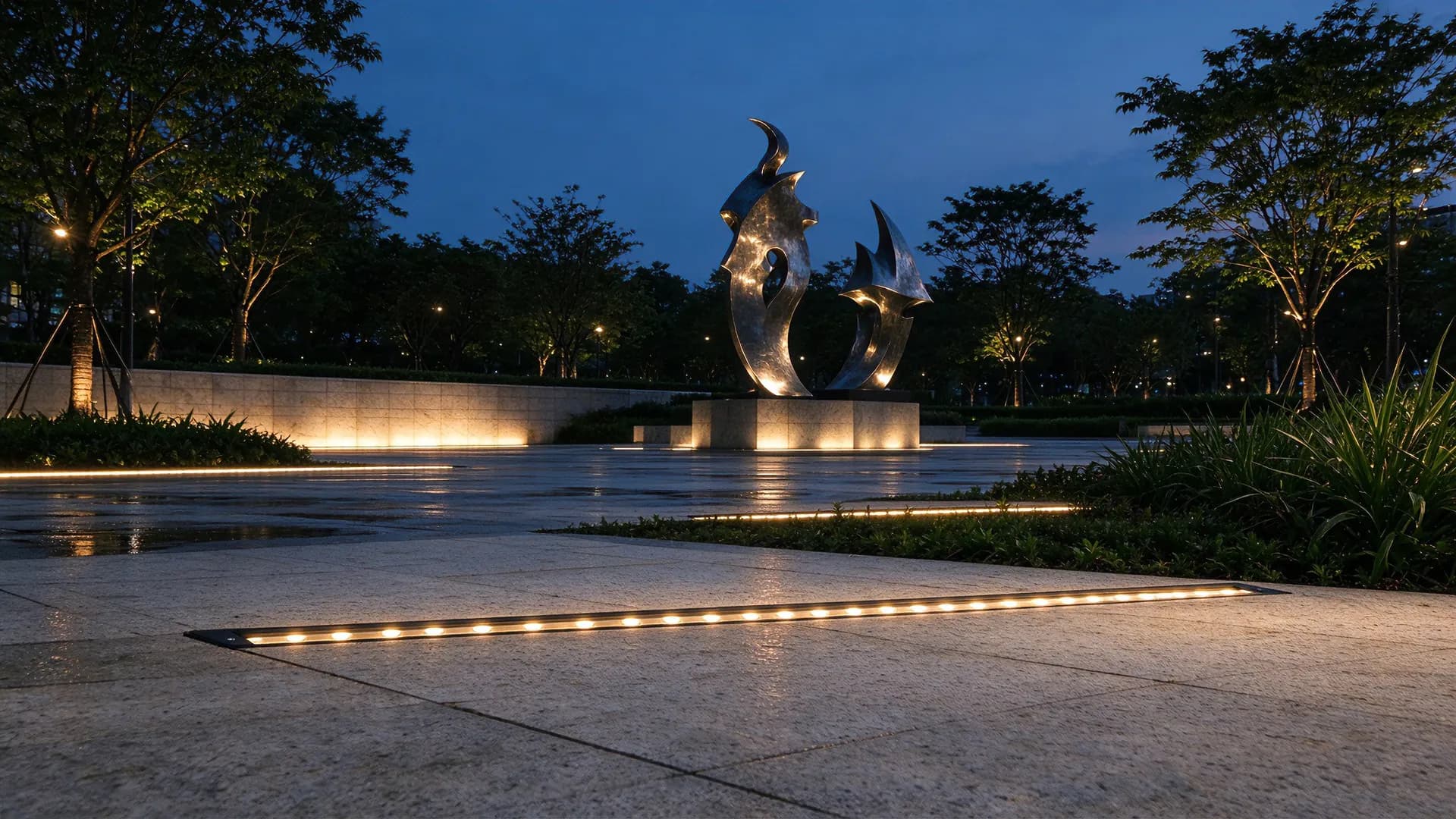

SubRay washes light up from the ground in single-colour 4000K or RGBW.
Rugged protection
The fitting is engineered for installation in the ground, with an IP66 rating.
Applications
Need a custom SubRay?
Voltage, CCT, CRI, PCB width, IP construction, reel length and packaging are configured per project. Send us your application and we will recommend a model and prepare samples.
