Matrix
Matrix / Static white
AK2835-24V-240-15mm

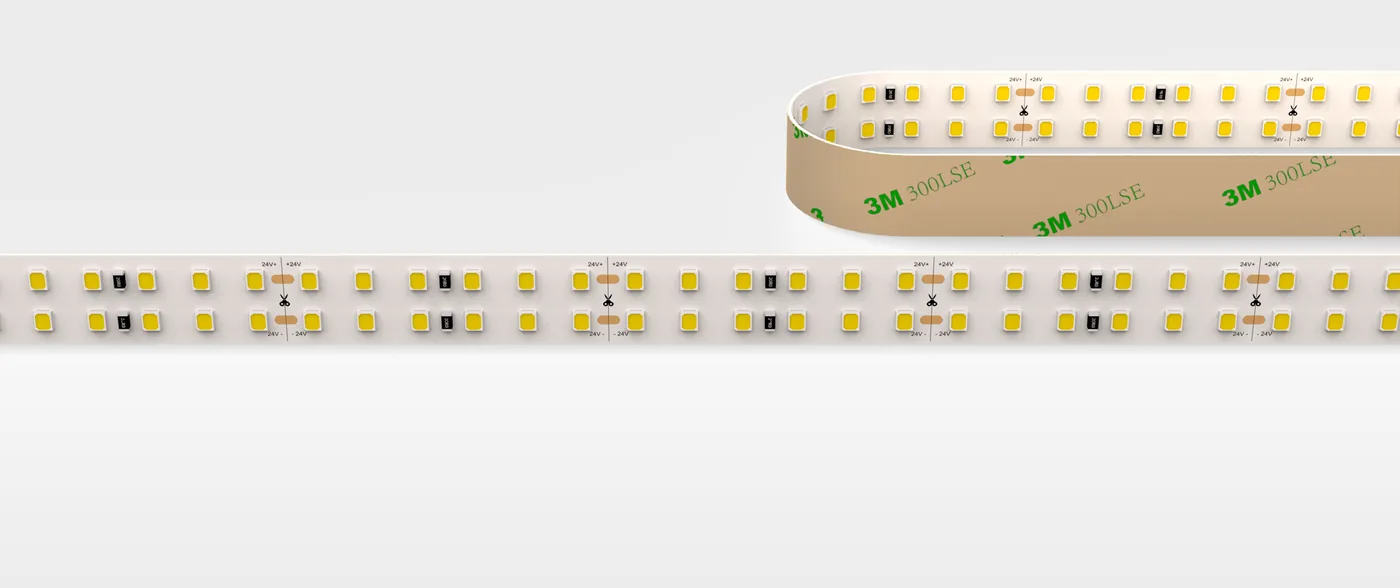

Matrix 2835 White Strip

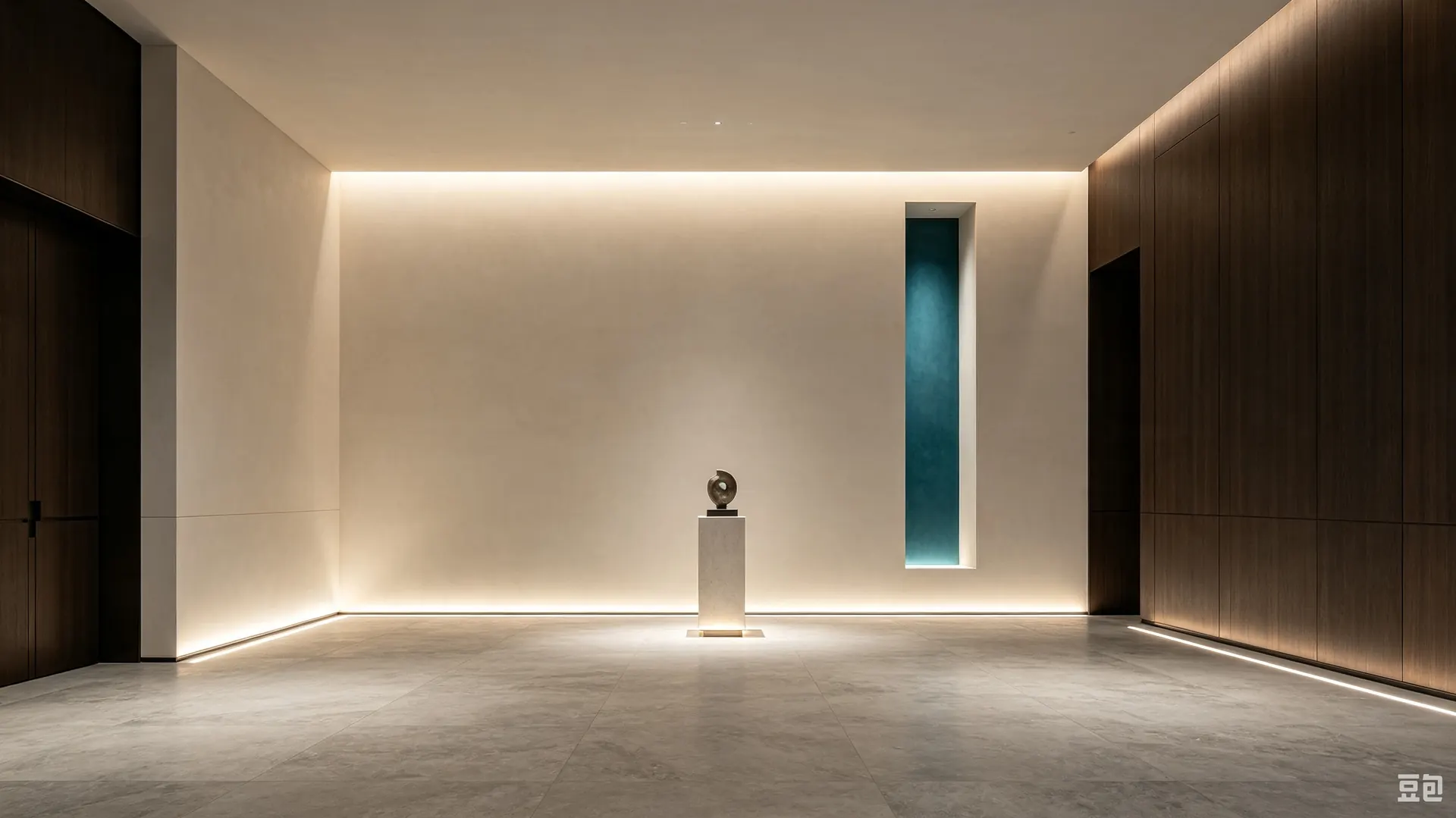

Matrix suits large-size profiles and supports high-power solutions for the lighting of large spaces: multi-row 2835 strips on 24 V.
24 V240 LEDs/m15 mm24 W/mCut every 50 mm
Full specifications & datasheet
TECHNICAL DATA
- Model No.
- AK2835-24V-240-15MM
- LED chip
- 2835
- Power consumption
- 24 W/m
- Voltage
- 24 V DC
- LED density
- 240 LEDs/m
- Board width
- 15 mm
- CRI
- >90
- Colour consistency
- SDCM <3
- Cutting interval
- 50 mm / 1.97 in
- Bend radius
- 60 mm
- Max length
- 5 m / 16.4 ft
- Beam angle
- 117°
- Warranty
- 5 years
Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.
IP PROTECTION
- IP20Indoor, bare board
- IP54Nano coating, splash resistant
- IP65Silicone glue, weatherproof
- IP67Silicone tube, temporary immersion
- IP68Solid silicone extrusion, submersible
ELECTRIC PARAMETERS
| Product range | CCT / Channel | CRI | SDCM | Power | Lumen | Efficiency | Efficiency class | Product code |
|---|---|---|---|---|---|---|---|---|
| Wide 82424015 | 2700K | ≥90 | <3 | 24W/m 7.32W/ft | 2379lm/m 725lm/ft | 98lm/w | F | AK283527902424015S15 |
| Wide 82424015 | 3000K | ≥90 | <3 | 24W/m 7.32W/ft | 2461lm/m 750lm/ft | 99lm/w | F | AK283530902424015S15 |
| Wide 82424015 | 4000K | ≥90 | <3 | 24W/m 7.32W/ft | 2534lm/m 772lm/ft | 103lm/w | F | AK283540902424015S15 |
