PolyX
PolyX / Colour
AF5050RGBW-24V-96-12mm

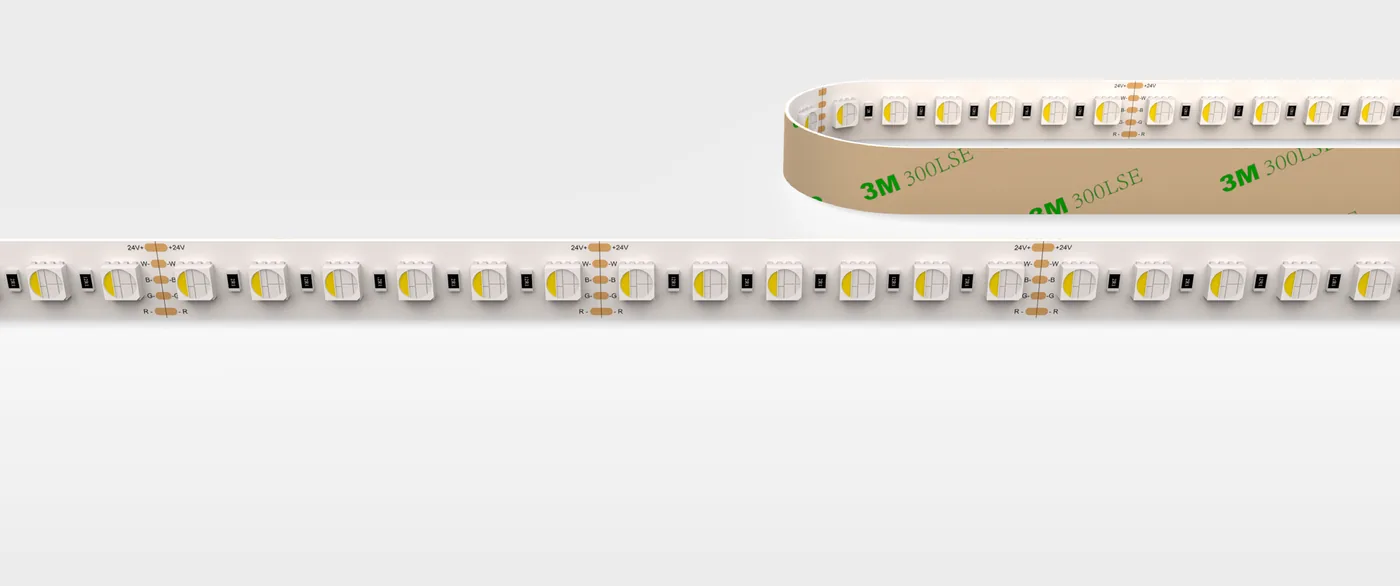

PolyX 5050RGBW Colour Strip
PolyX gives rich, highly saturated colour and a range of colour-changing effects: 3838 RGB and 5050 RGBW and RGBCW strips on 24 V.
24 V96 LEDs/m12 mm20 W/mCut every 62.5 mm
Full specifications & datasheet
TECHNICAL DATA
- Model No.
- AF5050RGBW-24V-96-12MM
- LED chip
- 5050RGBW
- Power consumption
- 20 W/m
- Voltage
- 24 V DC
- LED density
- 96 LEDs/m
- Board width
- 12 mm
- CRI
- >90
- Colour consistency
- —
- Cutting interval
- 62.5 mm / 2.46 in
- Bend radius
- 60 mm
- Max length
- 5 m / 16.4 ft
- Beam angle
- 122.2°
- Warranty
- 5 years
Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.
IP PROTECTION
- IP20Indoor, bare board
- IP54Nano coating, splash resistant
- IP65Silicone glue, weatherproof
- IP67Silicone tube, temporary immersion
- IP68Solid silicone extrusion, submersible
ELECTRIC PARAMETERS
| Product range | CCT / Channel | CRI | SDCM | Power | Lumen | Efficiency | Efficiency class | Product code |
|---|---|---|---|---|---|---|---|---|
| PolyX 50249612 | R | - | - | 5W/m 1.52W/ft | 120lm/m 37lm/ft | 24lm/w | - | AF5050RGBW249612S15 |
| PolyX 50249612 | G | - | - | 5W/m 1.52W/ft | 453lm/m 138lm/ft | 87lm/w | - | AF5050RGBW249612S15 |
| PolyX 50249612 | B | - | - | 5W/m 1.52W/ft | 102lm/m 31lm/ft | 19lm/w | - | AF5050RGBW249612S15 |
| PolyX 50249612 | 4000K | ≥90 | - | 5W/m 1.52W/ft | 518lm/m 158lm/ft | 99lm/w | - | AF5050RGBW249612S15 |
Documents on request
More from PolyX

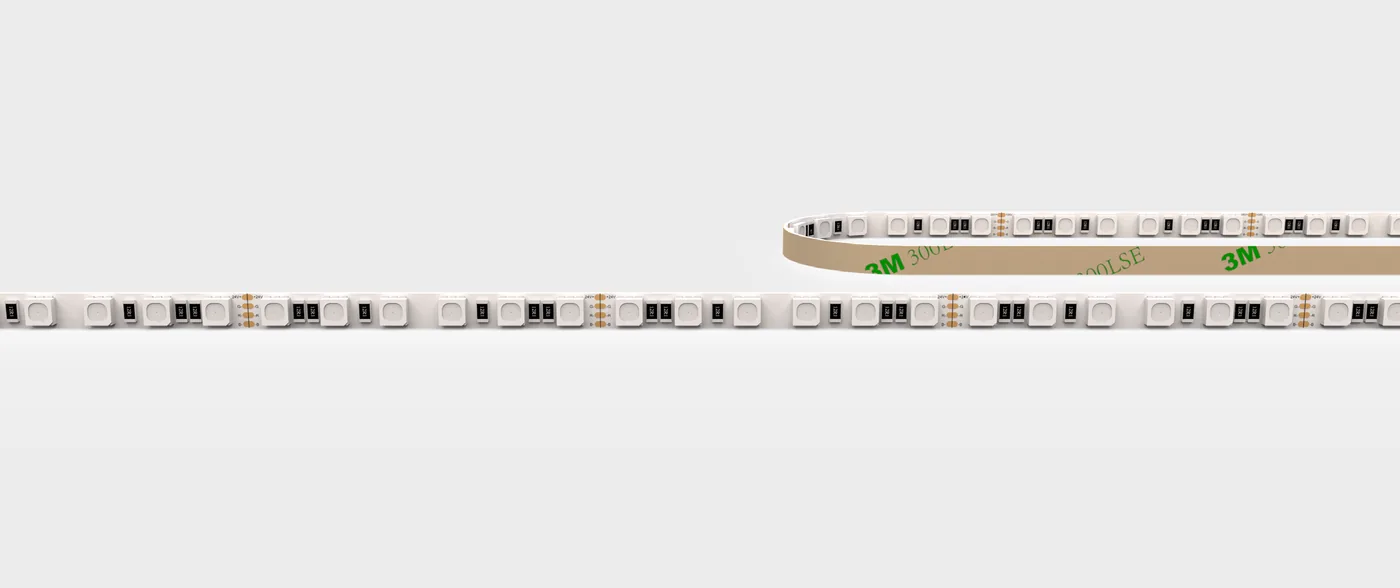

PolyXAF3838RGB-24V-120-5mm
Colour
- Voltage
- 24V
- LEDs/m
- 120
- Power
- 7.5W/m
up to 104 lm/W
View details / Request a quote

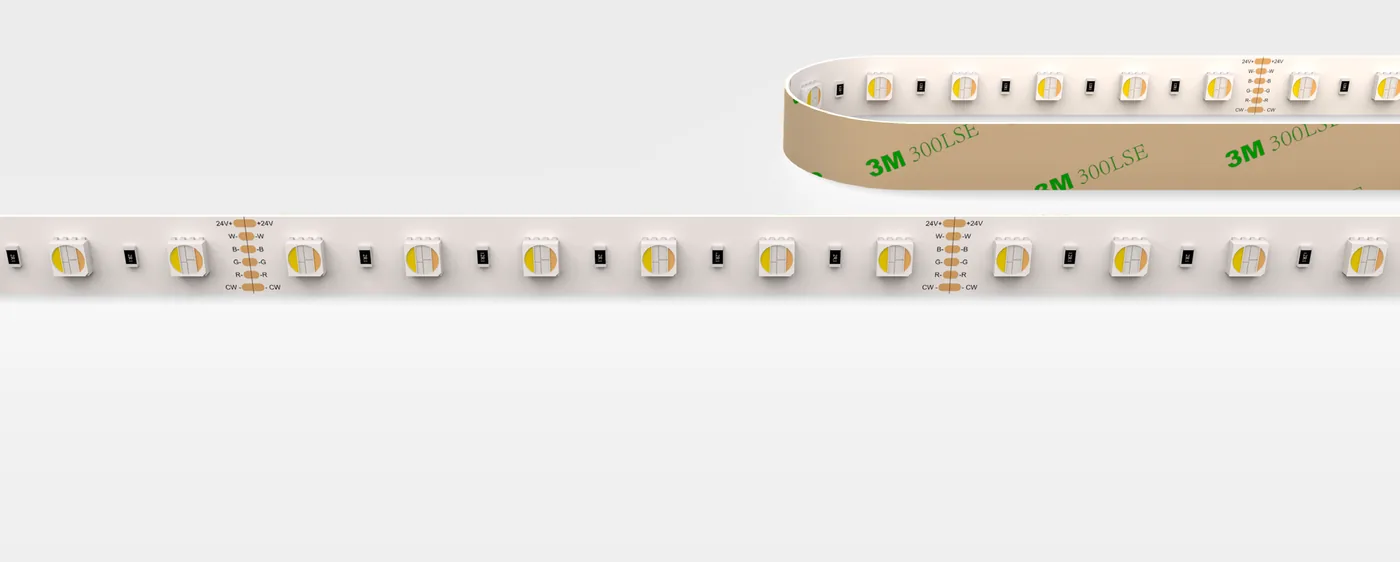

PolyXAF5050RGBCW-24V-60-12mm
