Demini
Demini / Tunable white
AD2216-24V-280-8mm

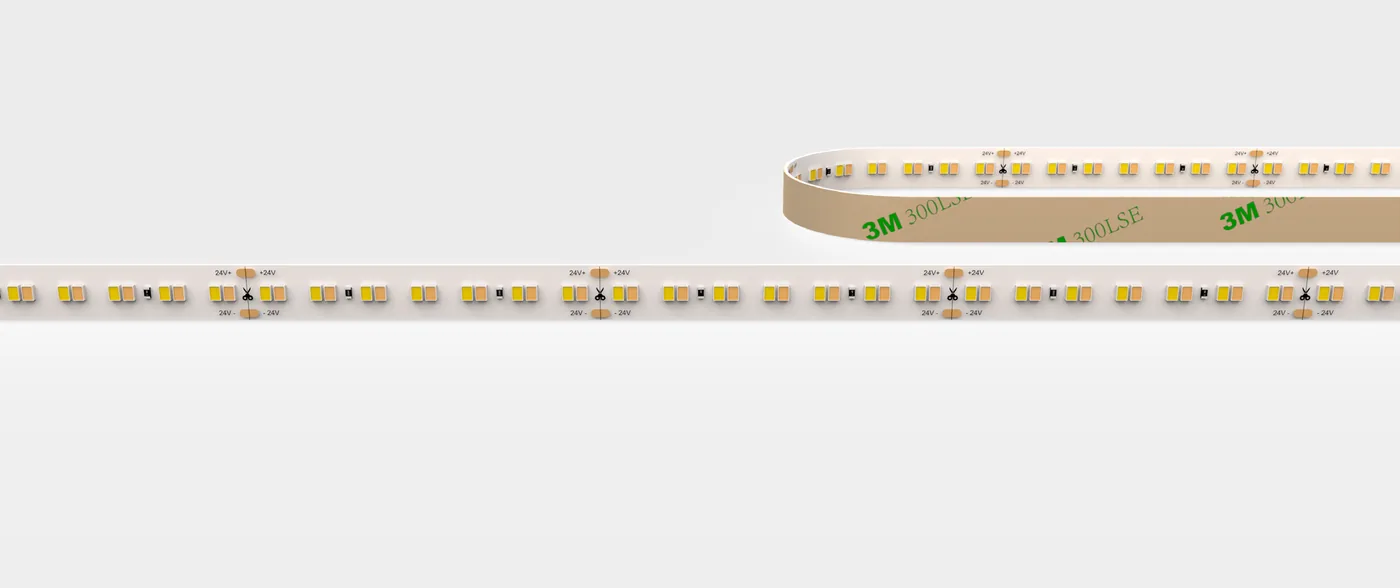

Demini 2216 Tunable White Strip
Demini puts two colour temperatures on one strip for a seamless change of ambience. Its ultra-dense LED pitch gives light without glare or pixelation, and the slim bare board diffuses the light and is easy to hide. 2700K + 6500K at 196 or 280 LEDs per metre on 24 V.
24 V280 LEDs/m8 mm7.2 W/mCut every 50 mm
Full specifications & datasheet
TECHNICAL DATA
- Model No.
- AD2216-24V-280-8MM
- LED chip
- 2216
- Power consumption
- 7.2 W/m
- Voltage
- 24 V DC
- LED density
- 280 LEDs/m
- Board width
- 8 mm
- CRI
- >90
- Colour consistency
- SDCM <3
- Cutting interval
- 50 mm / 1.97 in
- Bend radius
- 60 mm
- Max length
- 5 m / 16.4 ft
- Beam angle
- 116.7°
- Warranty
- 5 years
Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.
IP PROTECTION
- IP20Indoor, bare board
- IP54Nano coating, splash resistant
- IP65Silicone glue, weatherproof
- IP67Silicone tube, temporary immersion
- IP68Solid silicone extrusion, submersible
ELECTRIC PARAMETERS
| Product range | CCT / Channel | CRI | SDCM | Power | Lumen | Efficiency | Efficiency class | Product code |
|---|---|---|---|---|---|---|---|---|
| Demini 62428008 | 2700K | ≥90 | <3 | 7.2W/m 2.19W/ft | 801lm/m 244lm/ft | 106m/w | F | AD22162765902428008S15 |
| Demini 62428008 | 6500K | ≥90 | <3 | 7.2W/m 2.19W/ft | 880lm/m 268lm/ft | 117lm/w | E | AD22162765902428008S15 |
