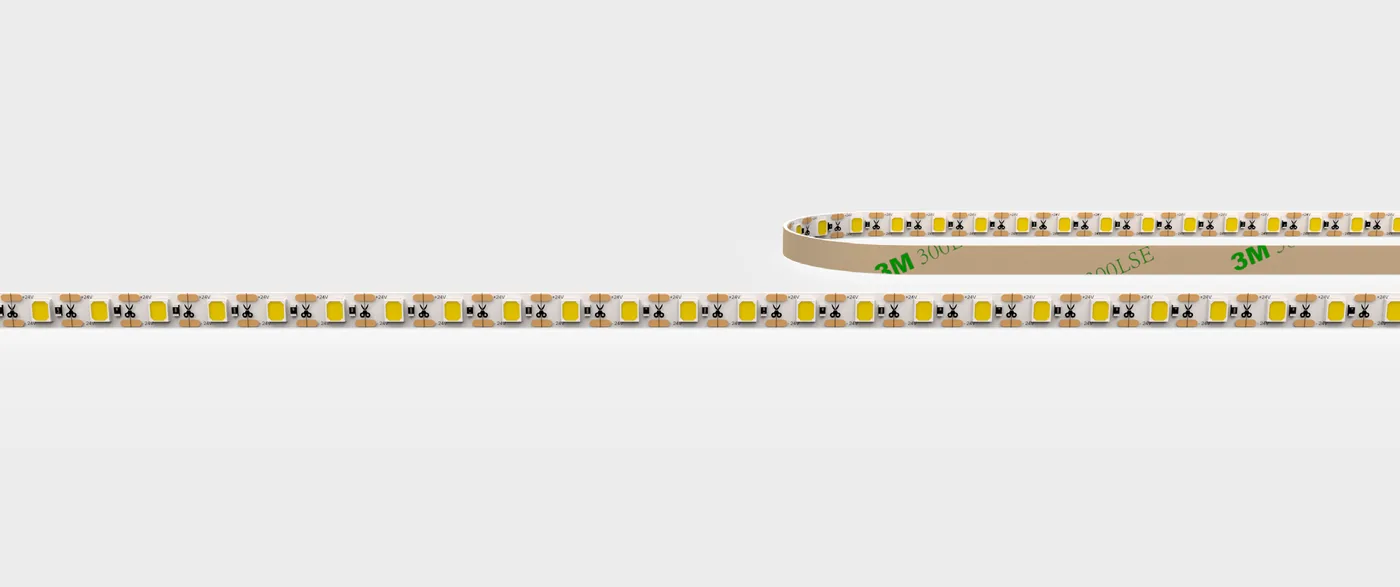

AA2835-24V-120-5mm

SnipX 2835 White Strip

SnipX cuts at any LED, so a run can be laid out freely and fitted precisely, and its bare board keeps fine detailing minimal. 2835 LEDs at 120 to 240 per metre on 24 V, CRI >90, from 1800K to 6500K.

24 V120 LEDs/m5 mm9.6 W/mCut every 8.33 mm

Colour temperature

858 lm/m · 89 lm/W · Efficiency class F · Code AA283527902412005S15

Ingress protection

Indoor, bare board

Quantity (reels)

Reel length to be confirmed in your quotation.

Full specifications & datasheet

TECHNICAL DATA

Model No.: AA2835-24V-120-5MM
LED chip: 2835
Power consumption: 9.6 W/m
Voltage: 24 V DC
LED density: 120 LEDs/m
Board width: 5 mm
CRI: >90
Colour consistency: SDCM <3
Cutting interval: 8.33 mm / 0.33 in
Bend radius: 60 mm
Max length: 5 m / 16.4 ft
Beam angle: 117.1°
Warranty: 5 years

Due to manufacturing processes, electronic device characteristics and testing environments, there is a 10% margin of error in testing parameters.

IP PROTECTION

IP20Indoor, bare board
IP54Nano coating, splash resistant
IP65Silicone glue, weatherproof
IP67Silicone tube, temporary immersion
IP68Solid silicone extrusion, submersible

ELECTRIC PARAMETERS

Product range	CCT / Channel	CRI	SDCM	Power	Lumen	Efficiency	Efficiency class	Product code
SnipX 82412005	1800K	≥90	<3	9.6W/m 2.93W/ft	640lm/m 195lm/ft	67lm/w	G	AA283518902412005S15
SnipX 82412005	2200K	≥90	<3	9.6W/m 2.93W/ft	787lm/m 240lm/ft	82lm/w	G	AA283522902412005S15
SnipX 82412005	2700K	≥90	<3	9.6W/m 2.93W/ft	858lm/m 262lm/ft	89lm/w	F	AA283527902412005S15
SnipX 82412005	3000K	≥90	<3	9.6W/m 2.93W/ft	938lm/m 286lm/ft	98lm/w	F	AA283530902412005S15
SnipX 82412005	3500K	≥90	<3	9.6W/m 2.93W/ft	996lm/m 304lm/ft	103lm/w	F	AA283535902412005S15
SnipX 82412005	4000K	≥90	<3	9.6W/m 2.93W/ft	1000lm/m 305lm/ft	104lm/w	F	AA283540902412005S15
SnipX 82412005	5000K	≥90	<3	9.6W/m 2.93W/ft	1000lm/m 305lm/ft	104lm/w	F	AA283550902412005S15
SnipX 82412005	6500K	≥90	<3	9.6W/m 2.93W/ft	972lm/m 296lm/ft	101lm/w	F	AA283565902412005S15
